1 Axis Stepper CNC Kit 13.0Nm(1841oz.in) Nema 34 Stepper Motor & Driver

0 reviews - Write a review

C$138.93

5 + C$133.78

10 + C$129.00

50 + C$124.56

100 + C$120.40

In Stock: Pre-order
Model: 1-DM860T-34HS59
Gross Weight: 6.43kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 121

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

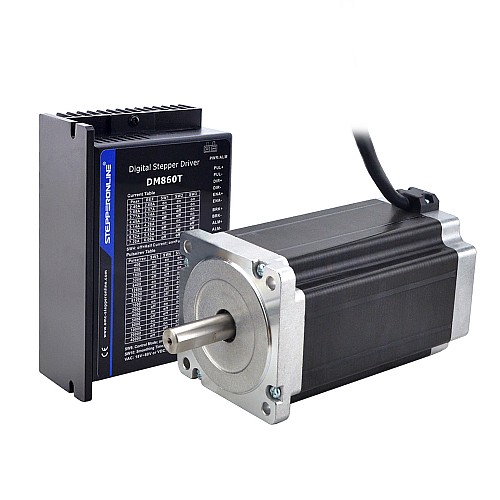

This CNC kit included:

1 x Digital Stepper Drive 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor

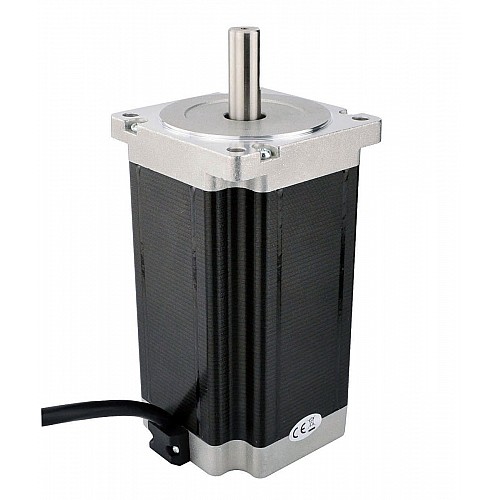

1 x Nema 34 CNC High Torque Stepper Motor 13Nm(1841oz.in) 5A 86x86x150mm

Motor Specification

Manufacturer Part Number: 34HS59-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Phase Resistance: 1ohms
Inductance: 11mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 150mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 5.0kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Driver Specification

Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Soft-start with no "jump" when powered on
Input voltage 18-80VAC or 24-110VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-curren protection

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Input Voltage Reference(V)	18 - 80AC / 24 - 110DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	D
Product Series	TS Series
Shaft Diameter(mm)	14

File	Size
34HS59-5004S.STEP	1.94MB	Download
34HS59-5004S_Torque_Curve.pdf	171.88KB	Download
DM860T_V3.0.pdf	976.12KB	Download
DM860T.pdf	722.93KB	Download
DM860T.STEP	6.5MB	Download
34HS59-5004S_Full_Datasheet.pdf	122.91KB	Download
