24V 3000RPM 0.064Nm 20W 1.09A Round Ф36x65mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 4
- Shaft Length(mm)
- 15
- Rated Voltage(V)
- 24
Discontinued
Stock: In Stock
Electrical Specification
Manufacturer Part Number: 36BLR65-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 3000± 10%RPM
Noload Speed:..
24V 2000RPM 0.062Nm 13W 0.91A Round Ф42x43mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 24
C$28.81
As low as C$25.24
Pre-order
Stock: Pre-order
Electrical Specification
Manufacturer Part Number: 42BLR43-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 2000±10%RPM
Noload Speed: ..
from
C$28.81
As low as C$25.24
24V 4000RPM 0.0625Nm 26W 1.8A 42x42x39mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 24
C$24.88
As low as C$21.80
Stock: In Stock
Electrical Specification
Manufacturer Part Number: 42BLS40-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: ..
from
C$24.88
As low as C$21.80
24V 4000RPM 0.125Nm 52.5W 3.4A 42x42x59mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 24
C$31.08
As low as C$27.23
Stock: In Stock
Electrical Specification
Manufacturer Part Number: 42BLS60-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: ..
from
C$31.08
As low as C$27.23
24V 3000RPM 0.08Nm 25W 1.80A 42x42x46mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 24
- Rated Voltage(V)
- 24
C$23.04
As low as C$20.57
Stock: In Stock
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.08Nm(11.33oz.in).
42BSA series brushl..
from
C$23.04
As low as C$20.57
24V 3000RPM 0.16Nm 50W 3.30A 42x42x62mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 24
- Rated Voltage(V)
- 24
C$25.92
As low as C$23.14
Stock: In Stock
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.16Nm(22.66oz.in).
42BSA series brushl..
from
C$25.92
As low as C$23.14

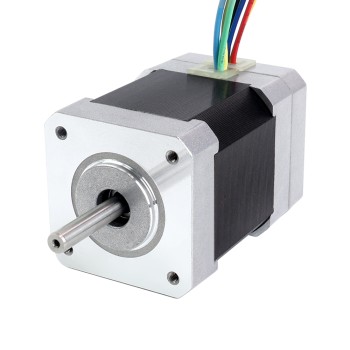

36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 24
- Rated Voltage(V)
- 36
C$25.92
As low as C$23.14
Stock: In Stock
This is a 36V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.16Nm(22.66oz.in).
42BSA series brushl..
from
C$25.92
As low as C$23.14
24V 3000RPM 0.24Nm 75W 4.80A 42x42x78mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 24
- Rated Voltage(V)
- 24
C$34.56
As low as C$30.85
Stock: In Stock
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.24Nm(33.99oz.in).
42BSA series brushl..
from
C$34.56
As low as C$30.85

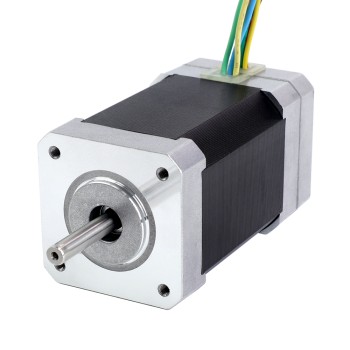

48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 24
- Rated Voltage(V)
- 48
C$34.56
As low as C$30.85
Stock: In Stock
This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.24Nm(33.99oz.in).
42BSA series brushl..
from
C$34.56
As low as C$30.85

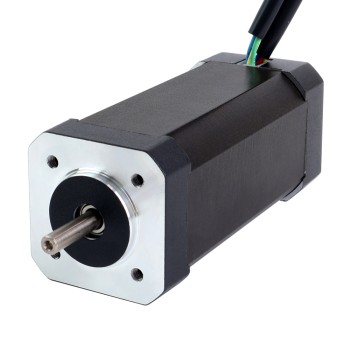

24V 3000RPM 0.25Nm 79W 4.70A 42x42x101mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 24
C$31.68
As low as C$28.28
Stock: In Stock
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.25Nm(35.40oz.in).
The 42BSB series br..
from
C$31.68
As low as C$28.28

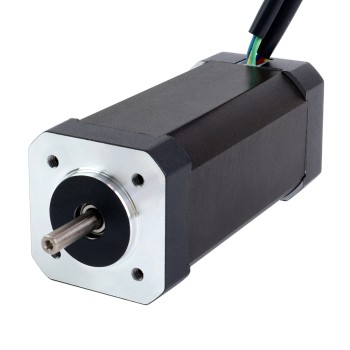

48V 3000RPM 0.25Nm 79W 2.30A 42x42x101mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 48
C$31.68
As low as C$28.28
Stock: In Stock
This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.25Nm(35.40oz.in).
The 42BSB series br..
from
C$31.68
As low as C$28.28

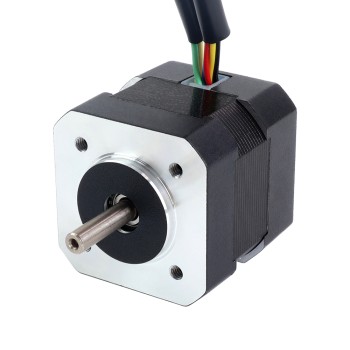

24V 3000RPM 0.063Nm 20W 1.20A 42x42x41mm Brushless DC Motor
- Output Shaft Type
- O
- Shaft Diameter(mm)
- 5
- Shaft Length(mm)
- 20
- Rated Voltage(V)
- 24
C$20.16
As low as C$18.00
Stock: In Stock
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.063Nm(8.92oz.in).
The 42BSB series br..
from
C$20.16
As low as C$18.00
