| Picture | Model | Nema Size | Torque(Nm/oz.in) | Voltage | Power Supply |
 |

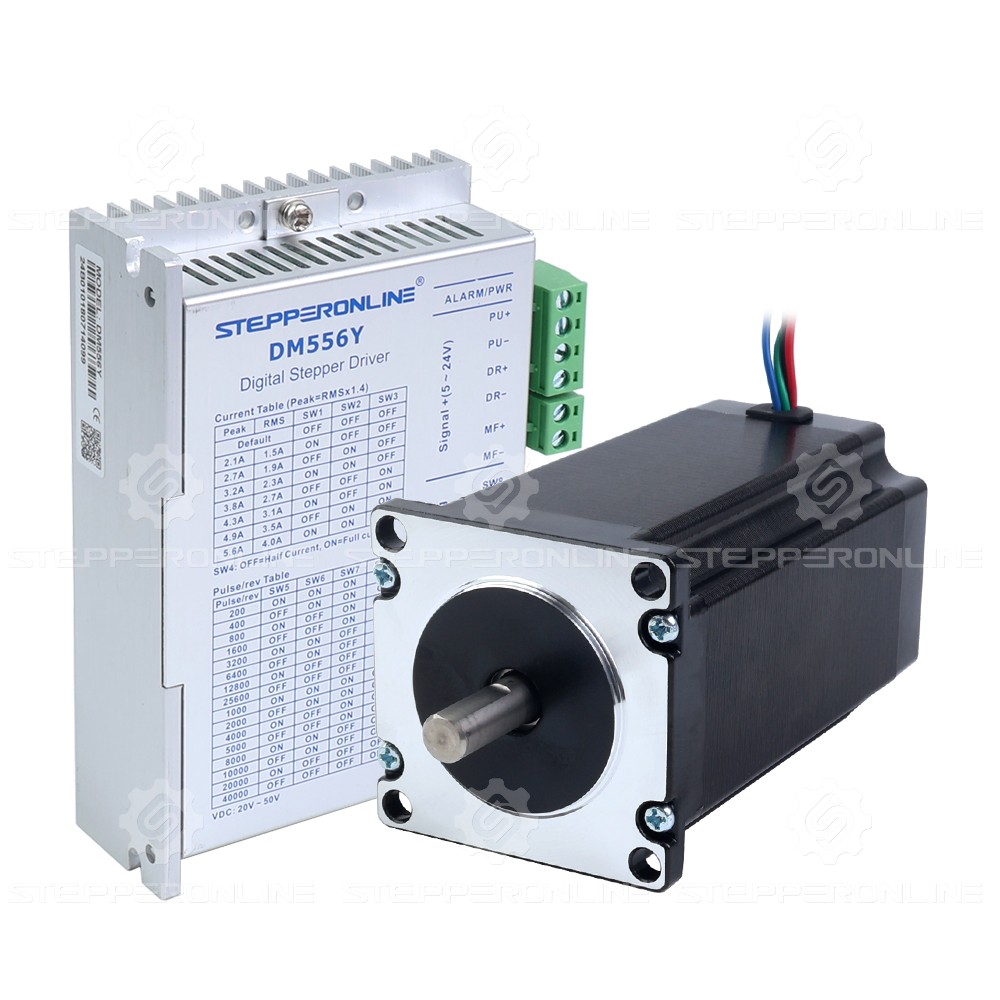

1-DM556Y-23HS39 | Nema 23 |
3.00Nm(424.83oz.in) |
24 - 48VDC | N |
 |
1-DM556Y-S30 | Nema 23 |
3.00Nm(424.83oz.in) |
36VDC | 1*LRS-150-36 |
 |
3-DM556Y-S30 | Nema 23 |
3.00Nm(424.83oz.in) |
48VDC | 1*S-500-48 |
 |
4-DM556Y-S30 | Nema 23 |
3.00Nm(424.83oz.in) |
48VDC | 2*LE-350-48 |
Model: 5-ULN2003
This 5-wire, 4-phase unipolar stepper motor features center-tapped coils with a common power connection. It is ideally paired with the ULN2003 Darlington transistor array driver chip.
The combination offers a direct pluggable interface, enabling simple connection to standard development boards for..
C$6.13
Model: 1-DM556T-24HS39
This CNC kit included:
1 x Digital Stepper Drive 1.8~5.6A 20-50VDC DM556T
1 x Dual Shaft Nema 24 Bipolar 4Nm(566oz.in) 60x60x100mm 8 Wires
Motor Specification
Manufacturer Part Number: 24HS39-3008D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque(Bipolar): 4Nm(566oz.in)
..
C$82.70
Model: 1-DM860T-34HS31
This CNC kit included:
1 x Digital Stepper Drive 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
1 x Nema 34 CNC Stepper Motor 4.5Nm(637oz.in) 5.5A 86x86x80mm Key Way Shaft
Motor Specification
Manufacturer Part Number: 34HS31-5504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg..
C$114.49
Model: 1-DM860T-34HS46
This CNC kit included:
1 x Digital Stepper Drive 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
1 x Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm (1204oz.in) 5A 86x114mm
Motor Specification
Manufacturer Part Number: 34HS46-5004D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Hol..
C$144.57
Model: 1-DM860T-34HS59
This CNC kit included:
1 x Digital Stepper Drive 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
1 x Nema 34 CNC High Torque Stepper Motor 13Nm(1841oz.in) 5A 86x86x150mm
Motor Specification
Manufacturer Part Number: 34HS59-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holdi..
C$138.93
Model: 3-DM860I-34HS46
This CNC kit included:
3 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
3 x 8.5Nm (1204oz.in) of Nema 34 Stepper Motor
3 x 350W 60V 5.9A 115/230V Switching Power Supply
Driver Specification
Anti-Resonance provides optimal torque and nulls mid-range instabili..
C$645.09
Model: 4-DM860I-34HS46
This CNC kit included:
4 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
4 x 8.5Nm (1204oz.in) of Nema 34 Stepper Motor
4 x 350W 60V 5.9A 115/230V Switching Power Supply
Driver Specification
Anti-Resonance provides optimal torque and nulls mid-range instabili..
C$860.12
Model: 4-DM860I-34HS59
This CNC kit included:
4 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
4 x 13Nm(1841oz.in) of Nema 34 Stepper Motor
4 x 350W 60V 5.9A 115/230V Switching Power Supply
Driver Specification
Anti-Resonance provides optimal torque and nulls mid-range instability..
C$957.87
Model: 1-DM542Y-23HS30
This CNC kit includes:
1 x 23HS30-2804S2: Nema 23 Bipolar 1.9Nm(269.06oz.in) 2.8A 57x57x76.5mm 4 Wires Φ8mm Shaft
1 x DM542Y: Y Series Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor
Motor Specification
Manufacturer Part Number: 23HS30-2804S2
Motor Type: B..
C$39.40
Model: 1-DM542Y-S19
This CNC kit includes:
1 x 23HS30-2804S2: Nema 23 Bipolar 1.9Nm(269.06oz.in) 2.8A 57x57x76.5mm 4 Wires Φ8mm Shaft
1 x DM542Y: Y Series Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor
1 x LRS-150-36: 154.8W 36VDC 4.3A 115/230VAC Enclosed Switching Power Supply
..
C$62.03
Hot
Model: 1-DM556Y-23HS39
This CNC kit includes:
1 x 23HS39-5004S: Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires
1 x DM556Y: Y Series Digital Stepper Driver 1.7-5.6A DC20V-50V for Nema 23, 24, 34 Stepper Motor
Motor Specification
Manufacturer Part Number: 23HS39-5004S
Motor ..
C$48.74
Model: 1-DM556Y-S30
This CNC kit includes:
1 x 23HS39-5004S: Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires
1 x DM556Y: Y Series Digital Stepper Driver 1.7-5.6A DC20V-50V for Nema 23, 24, 34 Stepper Motor
1 x LRS-150-36: 154.8W 36VDC 4.3A 115/230VAC Enclosed Switching Power Suppl..
C$71.38
