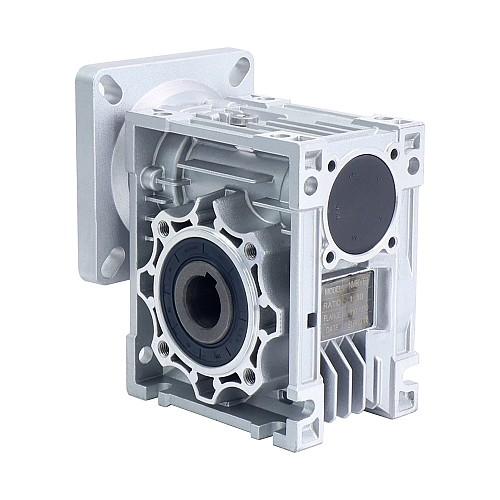

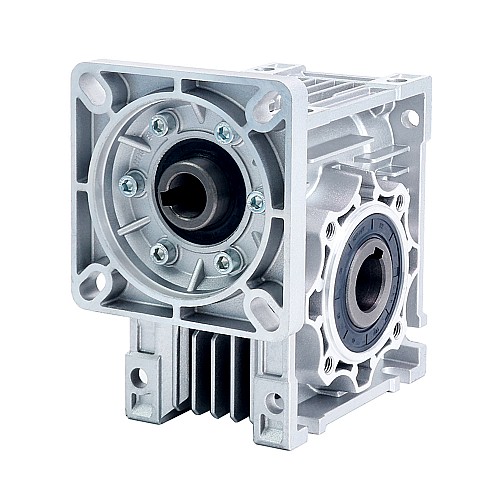

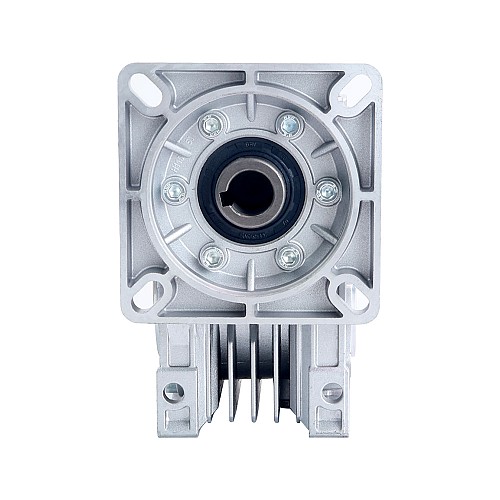

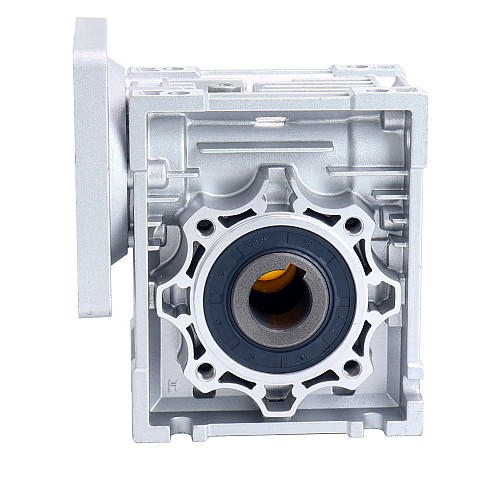

10:1 Worm Gearbox NMRV50 Worm Gear Speed Reducer 19mm Input Shaft Diameter

0 reviews - Write a review

C$0.00

In Stock: 1
Model: NMRV50-G10-D19
Gross Weight: 3.60kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

This 10:1 worm gearbox is designed for Nema 42 Stepper Motor or other 110mmx110mm size motor, the output shaft is offset by 90° from the drive shaft. Besides big cases, no gap structure of box means a maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.

Gearbox Specifications

Manufacturer Part Number: NMRV50-G10-D19
Gearbox Type: Worm Gearbox
Gear Ratio: 10:1
Output Max.Permissible Torque: 70Nm(619.55lb-in)
Output Max. Radial Load: 1.98kN
Output Type: Hollow Bore
Output Bore Diameter: Φ25mm
Input Shaft Type: Key way
Input Shaft Diameter: Φ19mm
Input Shaft Max. Length: 43mm

Note

Recommend Input Speed <=1500rpm.
Due to high backlash, worm gearboxes are not suitable for positioning applications.

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is NMRVS50-G10-D19.

Physical Specification
Gear Ratio(xx:1)	10
Gearbox Size	050
Gearbox Type	Worm Gearbox
Input Shaft Diameter(mm)	19
Input Shaft Max. Length	43mm
Inventory Method	Dedicated Inventory
Matching Motor Type	Nema Size Stepper Motor
