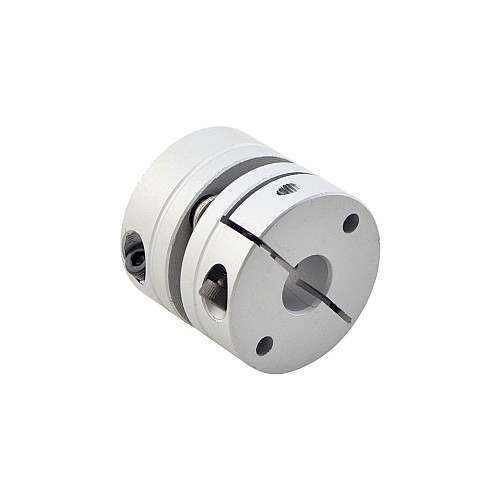

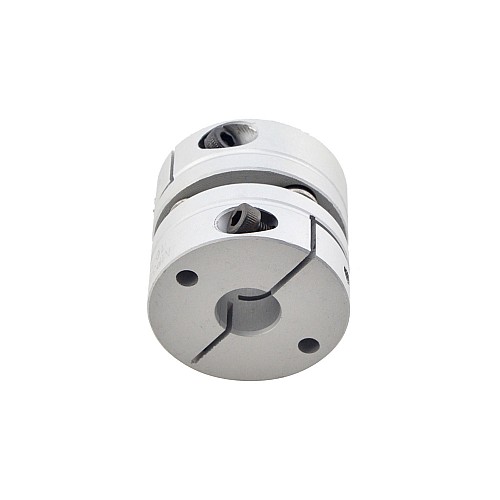

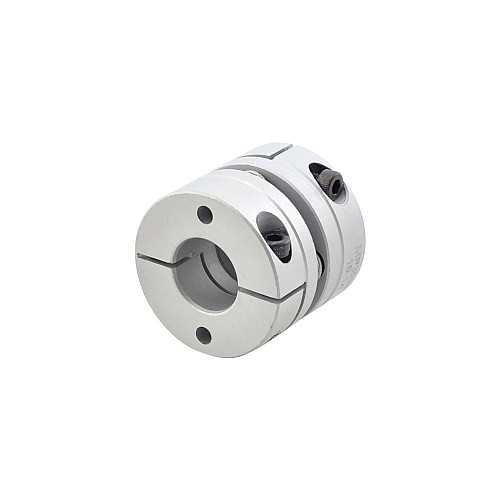

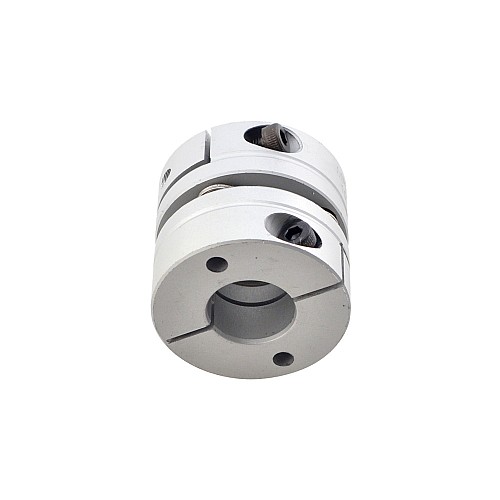

10mm - 14mm Flexible Single Disc Coupling 32x29mm CNC Stepper Motor Shaft Coupler
0 reviews - Write a review
C$8.38
5 + C$7.96
10 + C$7.59
50 + C$7.25
100 + C$6.94
  • In Stock: 10000
  • Model: MP3229-10-14
  • Gross Weight: 0.11kg
  • Certificated: ISO
Sold: 306

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Specification

  • Part Number: MP3229-10-14
  • Type: Single Disc
  • Rated Torque: 2.8Nm(396.42oz.in)
  • Max. Torque: 5.6Nm(792.84oz.in)
  • Max. Speed: 10000rpm
  • Moment of Inertia: 7.1*10-6kg*m2
  • Static Torsional Spring Constant: 1960Nm/rad
  • Bore Diameter(d1-d2): 10mm - 14mm
  • Body Outside Diameter(D): 32mm
  • Body Length(L): 29mm
  • Material Type: Aluminum
  • Weight: 46g
Coupling Specification
Body Length(mm) 29
Coupling Type Disc Shaft Coupling
Diameter(mm) 32
Matching Shaft Diameter(mm) 10 - 14
Physical Specification
Inventory Method Dedicated Inventory
  • Bore Diameter
  • With Keyway/without keyway, other special-shaped hole
  • Overall Length
  • Material(45/304 stainless steel)
  • Outside Diameter
File Size
MP3229-10-14.STEP 7.89MB Download
