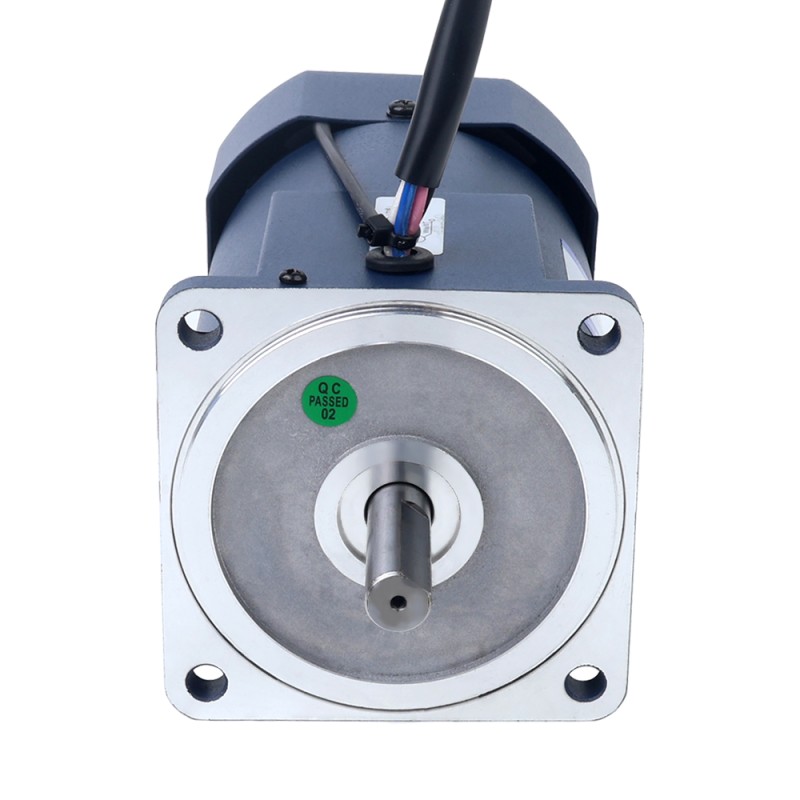

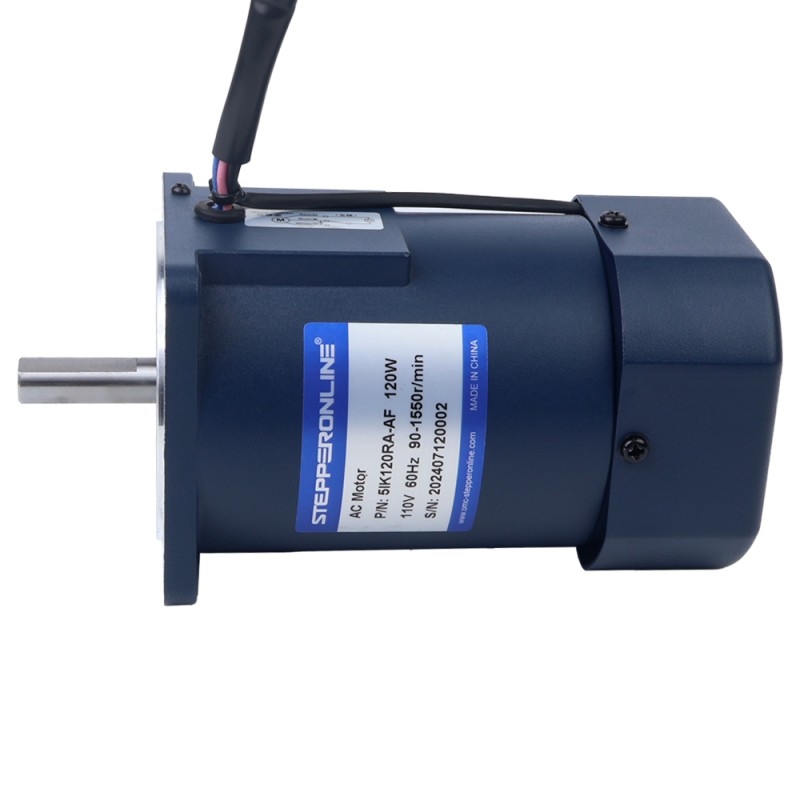

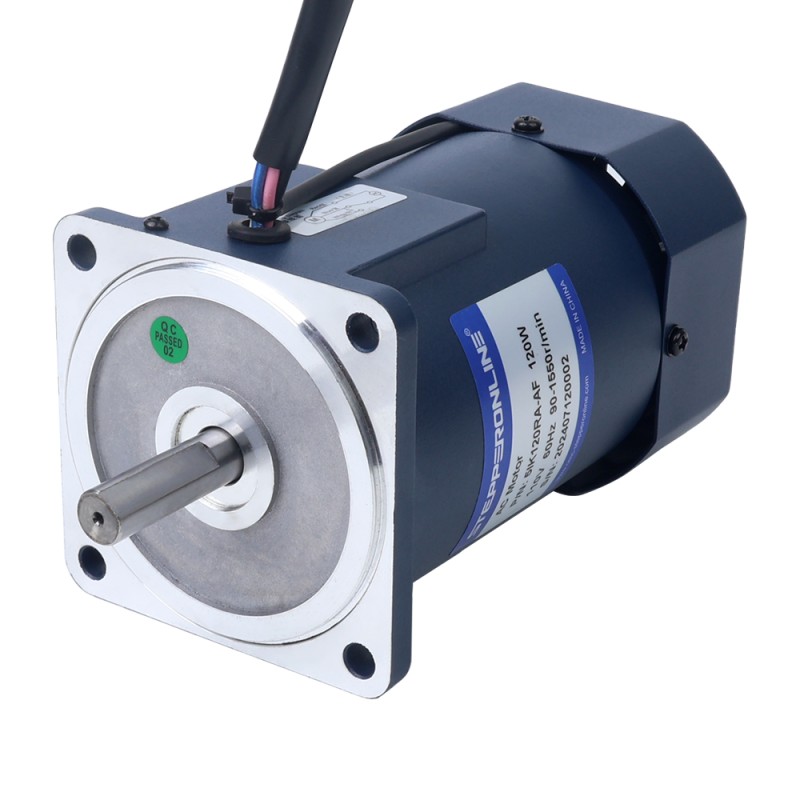

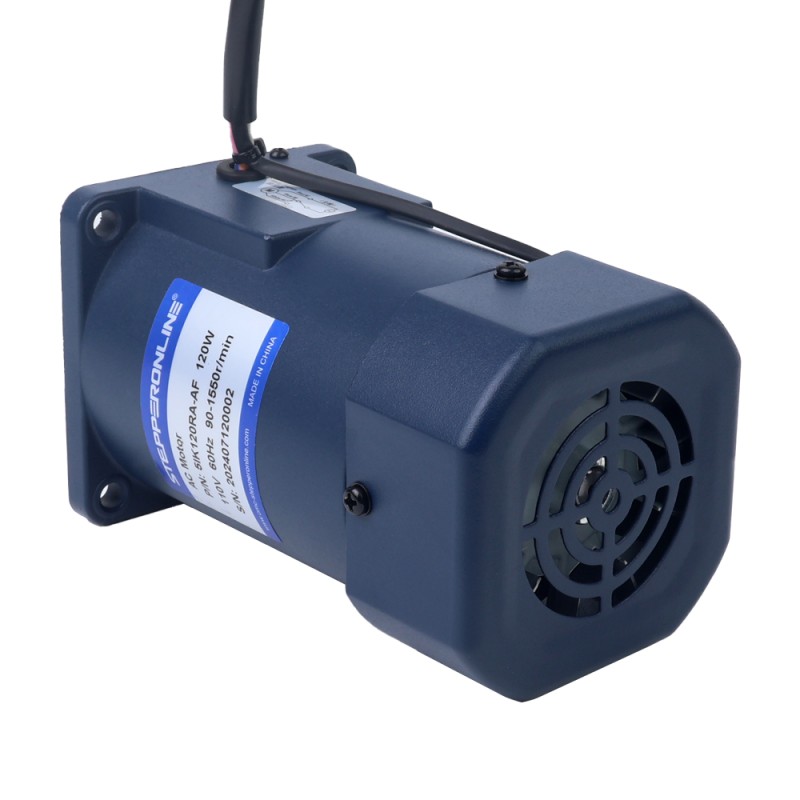

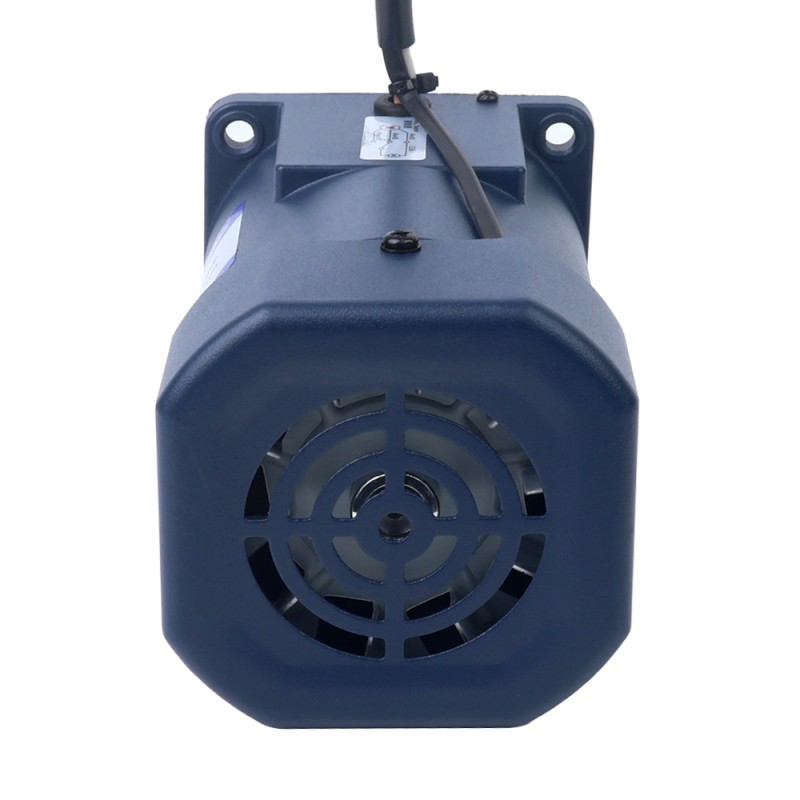

120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor

120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor - 5IK120RA-AF | StepperOnline CA
5IK120RA-AF
Output Shaft TypeD
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.65
Question

Downloads

5IK120RA-AF_Manual.pdfPDF · 13.59MB5IK120RA-AF.STEPSTEP · 1.79MBLog in to download
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RA-AFD1PH 110VAC90 x 901.65C$50.72In stock
5IK120RA-CFD1PH 220VAC90 x 900.87C$50.72In stock
5IK120RGU-AF/5GU100KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120RGU-AF/5GU100RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU100RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU10KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120RGU-AF/5GU10RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU10RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU15KBKeyway1PH 110VAC90 x 901.65C$80.58In stock
5IK120RGU-AF/5GU15RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU15RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU180RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU180RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU200KBKeyway1PH 110VAC90 x 901.65C$87.44In stock
5IK120RGU-AF/5GU20KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU20RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU20RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU30KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU30RCHollow1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU3KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-AF/5GU50KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU50RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU50RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU5KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-CF/5GU100KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120RGU-CF/5GU100RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU100RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU10KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120RGU-CF/5GU10RCHollow1PH 220VAC90 x 900.87C$111.74In stock
View all in category
120W 110VAC 60Hz 90-1550RPM 0.72Nm(101.96oz.in) Flange 90mm Single-phase AC Variable Speed Motor
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC and ha... Read More
0 reviews • Write a review
from
C$50.72
5 + C$49.36
10 + C$48.07
50 + C$46.85
100 + C$45.68

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC and has a speed range of 90-1550rpm. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120RA-AF
  • Output Power: 120W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.65A
  • Speed Range: 90-1550rpm
  • Rated Torque(90rpm): 0.28Nm(39.65oz.in)
  • Rated Torque(1200rpm): 0.72Nm(101.96oz.in)
  • Capacitor: 25.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 151mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ12mm
  • Shaft Length: 37mm
  • Cable Length: 300mm
  • Weight: 3.5kg

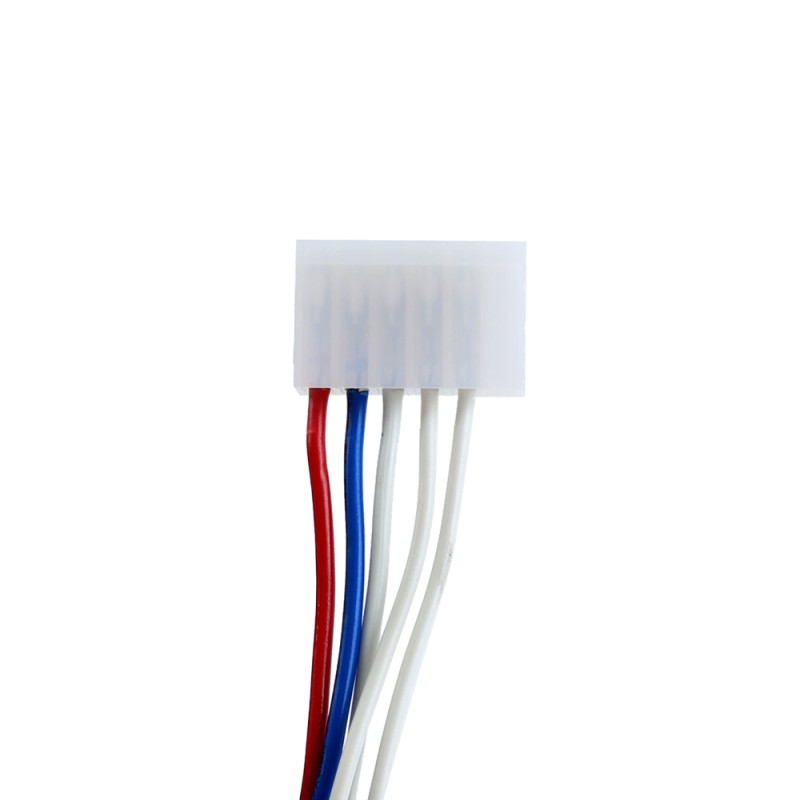

Wiring

Electrical Specification
Current(A) 1.65
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 0.72
Output Power(W) 120
Speed Range(rpm) 90-1550
Physical Specification
Frame Size(mm) 90 x 90
Gearbox Type Without Gearbox
Output Shaft Type D
