120W 220VAC 13.5RPM 40.00Nm(5664.47oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor

120W 220VAC 50Hz 13.5RPM 40.00Nm(5664.47oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK120GU-CFT/5GU100RC | StepperOnline CA

120W 220VAC 13.5RPM 40.00Nm(5664.47oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor

0 reviews - Write a review

C$145.03

5 + C$140.23

10 + C$135.75

50 + C$131.53

100 + C$127.58

In Stock: 10000
Model: 5IK120GU-CFT/5GU100RC
Gross Weight: 6.76kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

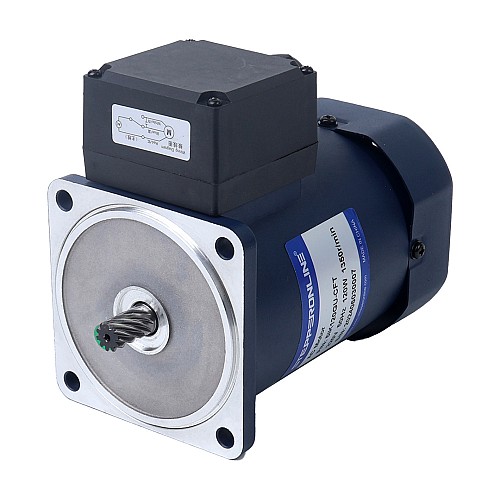

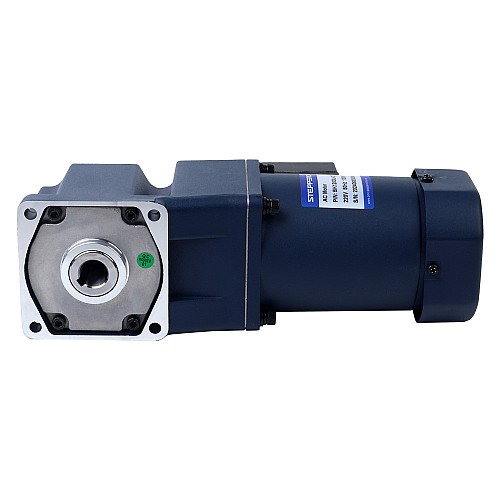

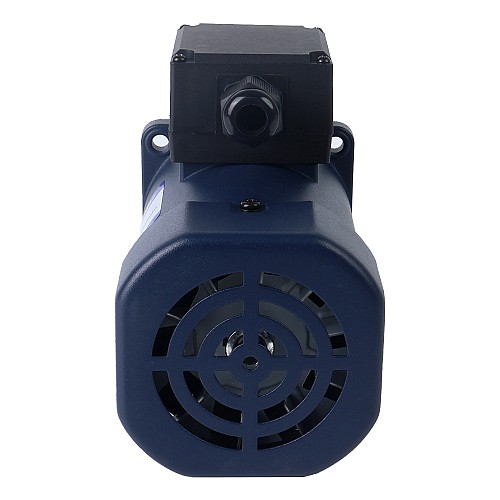

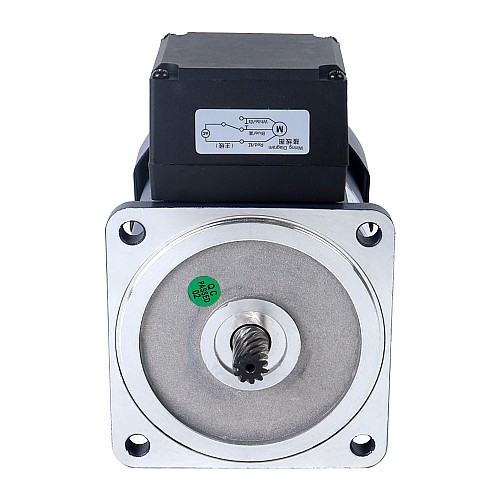

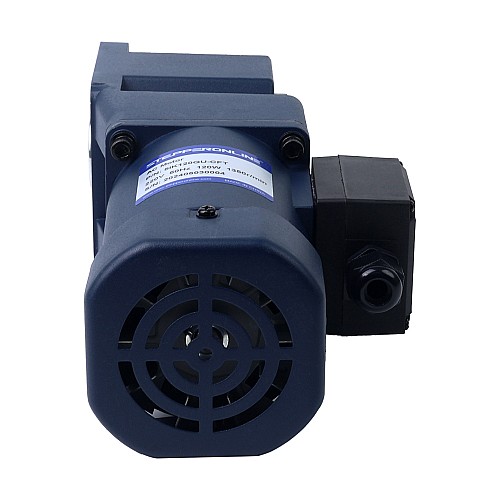

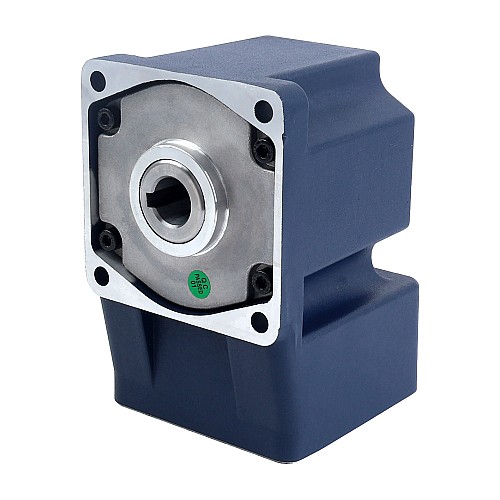

This 90x90mm hollow shaft single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 100, a torque of 40.00Nm(5664.47oz.in) and a speed of 13.5rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

P/N: 5IK120GU-CFT/5GU100RC

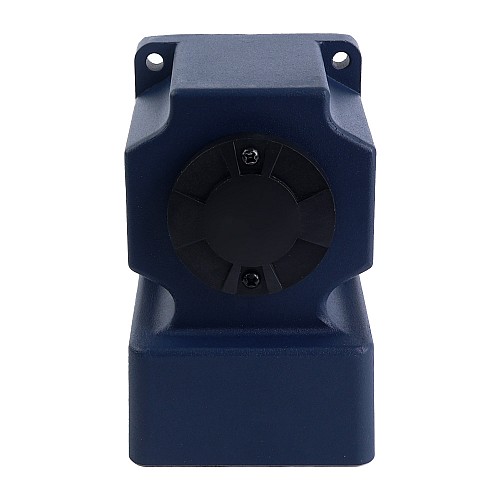

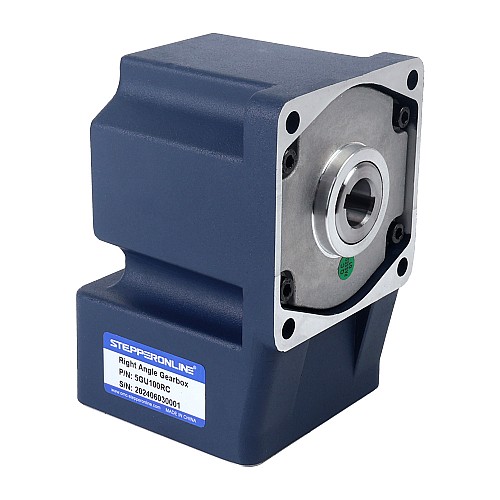

Gearbox Type: Right Angle Gearbox
Output Power: 120W
Voltage: 1PH 220VAC
Frequency: 50Hz
Current: 0.87A
Gear Ratio: 100:1
Speed: 13.5rpm
Torque: 40.00Nm(5664.47oz.in)

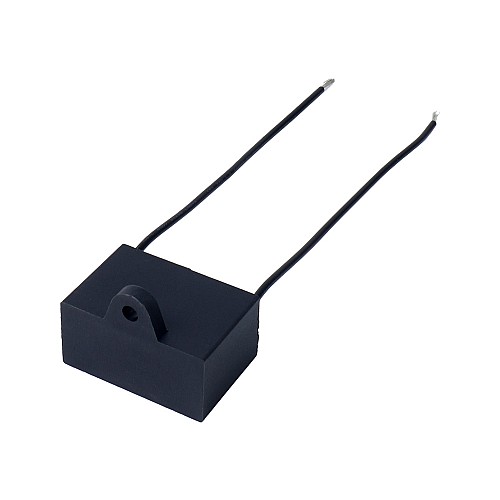

Capacitor: 6.0μF/450VAC

Physical Specifications

Frame Size: 90x90mm
Body Length: 278mm
Shaft Type: Hollow
Bore Diameter: Φ17mm
Weight: 6.4kg

Wiring

Note:
1. The actual speed might vary with the load size, ranging from 2 to 20%.
2. The conversion of the single-phase motor's running direction should be performed when the motor is stopped.

Electrical Specification
Current(A)	0.87
Frequency(Hz)	50
Input Voltage(V)	1PH 220VAC
Output Power(W)	120
Speed(rpm)	13.5
Torque(Nm)	40
Physical Specification
Frame Size(mm)	90 x 90
Gear Ratio(xx:1)	100
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Hollow
