120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor

120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-CF/5GU10RC | StepperOnline CA
5IK120RGU-CF/5GU10RC
Output Shaft TypeHollow
Input Voltage(V)1PH 220VAC
Frame Size(mm)90 x 90
Current(A)0.87
Question

Downloads

5IK120RGU-XF_5GUXXRX_Manual.pdfPDF · 1.7MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.65C$111.74In stock
5IK120RGU-AF/5GU3KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-AF/5GU50KBKeyway1PH 110VAC90 x 901.65C$83.74In stock
5IK120RGU-AF/5GU50RCHollow1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU50RTKeyway1PH 110VAC90 x 901.65C$114.65In stock
5IK120RGU-AF/5GU5KBKeyway1PH 110VAC90 x 901.65C$76.60In stock
5IK120RGU-CF/5GU100KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120RGU-CF/5GU100RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU100RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU10KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120RGU-CF/5GU10RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU10RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU15KBKeyway1PH 220VAC90 x 900.87C$80.58In stock
5IK120RGU-CF/5GU15RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU15RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU180RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU180RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU200KBKeyway1PH 220VAC90 x 900.87C$87.44In stock
5IK120RGU-CF/5GU20KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120RGU-CF/5GU20RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU20RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU30KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120RGU-CF/5GU30RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU30RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120RGU-CF/5GU3KBKeyway1PH 220VAC90 x 900.87C$76.60In stock
5IK120RGU-CF/5GU50KBKeyway1PH 220VAC90 x 900.87C$83.74In stock
5IK120RGU-CF/5GU50RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU50RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120RGU-CF/5GU5KBKeyway1PH 220VAC90 x 900.87C$76.60In stock
5IK40RGN-A/5GN100KKeyway1PH 110VAC90 x 900.66C$66.31In stock
View all in category
120W 220VAC 50Hz 9-135RPM 6.20Nm(877.98oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor
This 90x90mm hollow shaft single-phase AC motor with adjustable speed control is operated with 220VA... Read More
0 reviews • Write a review
from
C$111.74
5 + C$108.74
10 + C$105.89
50 + C$103.20
100 + C$100.64

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

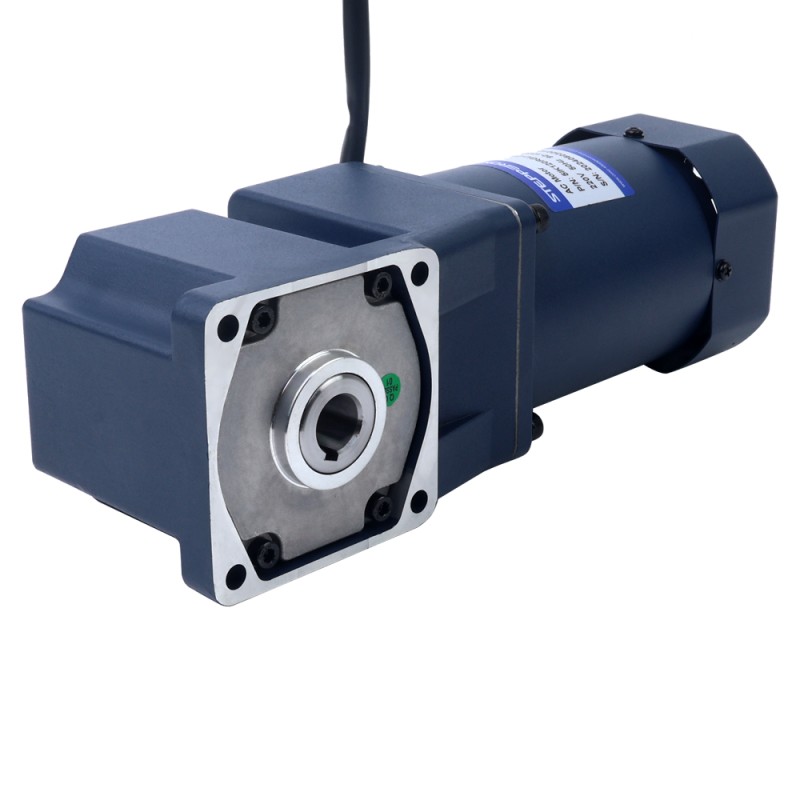

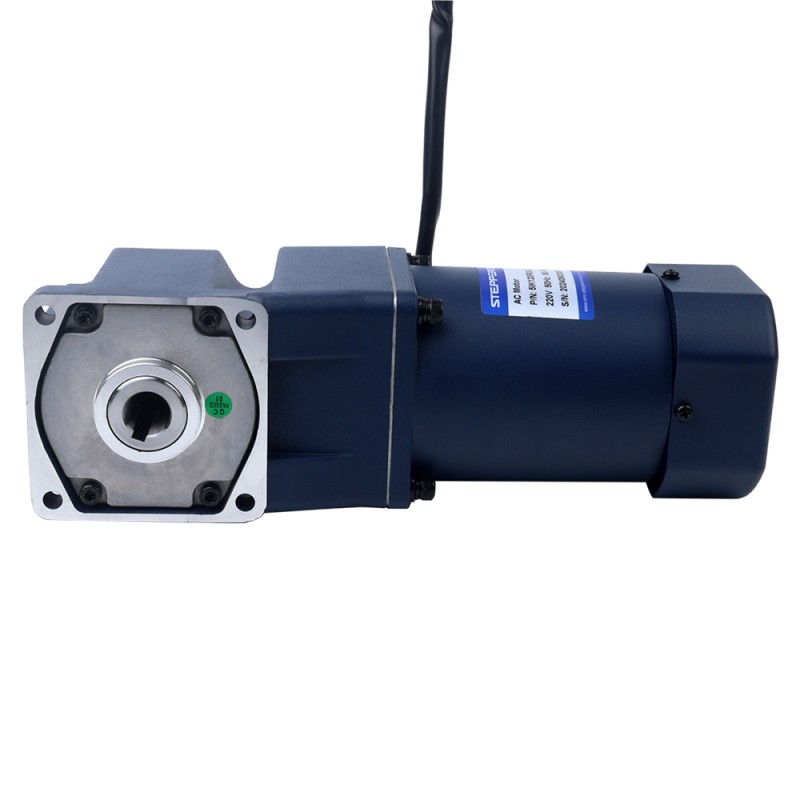

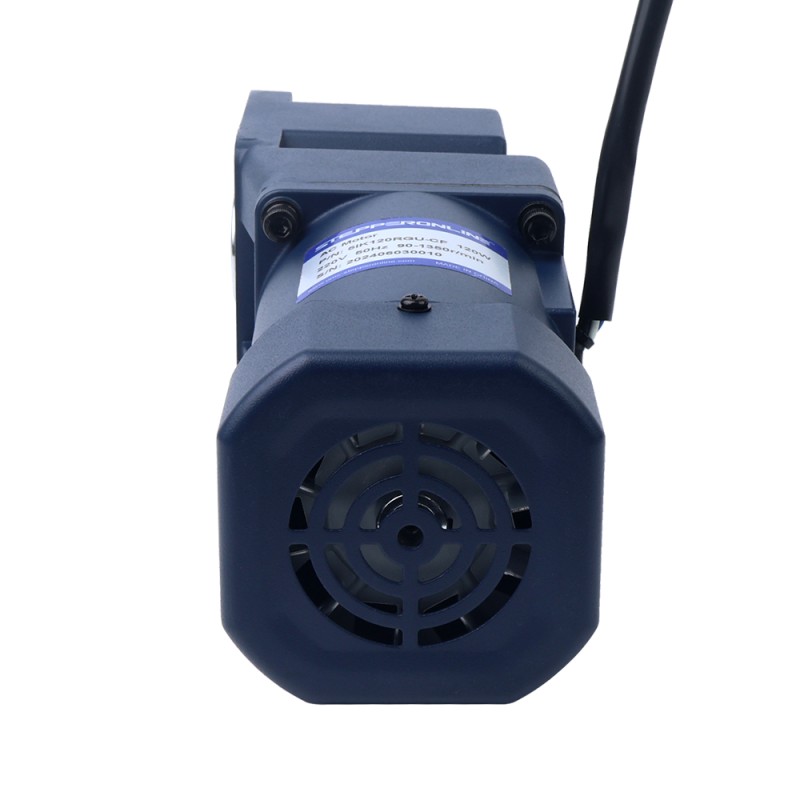

This 90x90mm hollow shaft single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 9-135rpm and a right angle gearbox with a gear ratio of 10. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120RGU-CF/5GU10RC
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 120W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.87A
  • Gear Ratio: 10:1
  • Speed Range: 9-135rpm
  • Maximum Torque: 6.20Nm(877.98oz.in)
  • Capacitor: 6.0μF/450VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 289mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ17mm
  • Weight: 6.5kg

Wiring

Electrical Specification
Current(A) 0.87
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Max. Torque(Nm) 6.20
Output Power(W) 120
Speed Range(rpm) 9-135
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 10
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow
