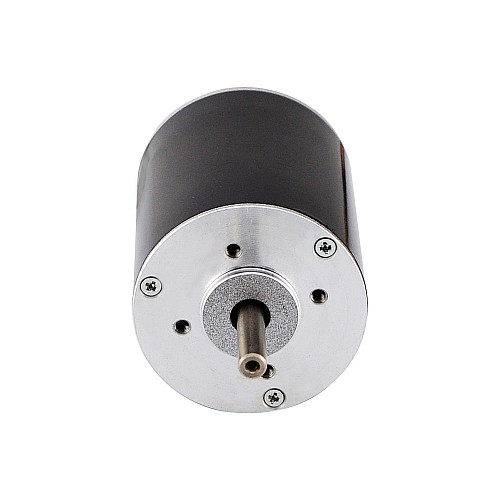

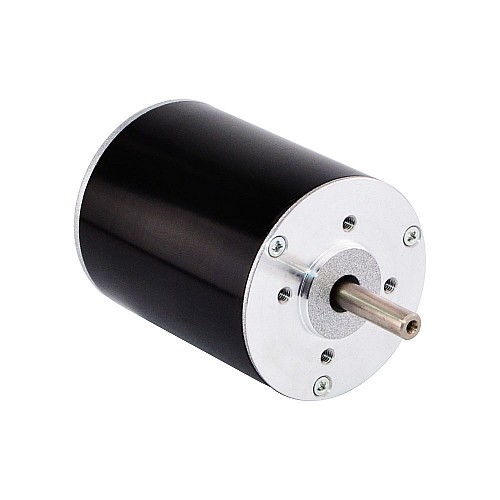

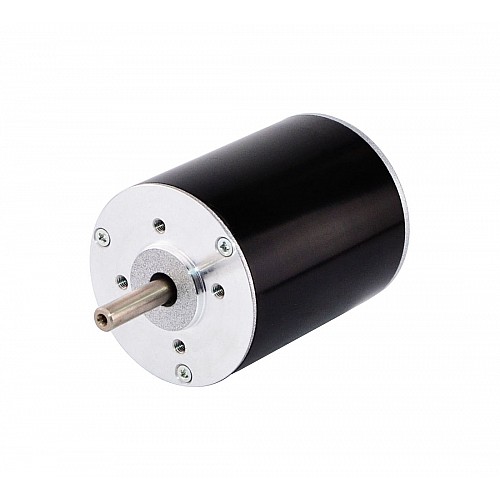

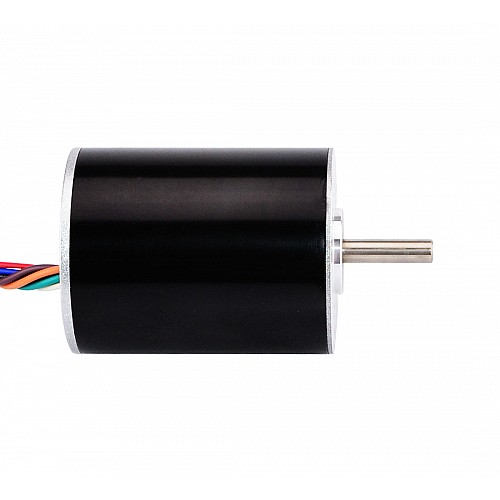

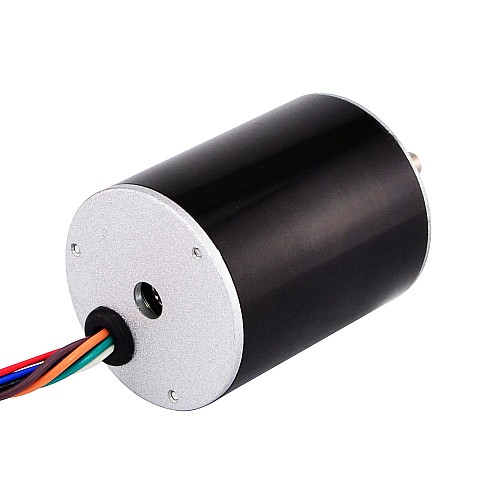

12V 3000RPM 0.048Nm 15W 1.9A Round Ф42x53mm Brushless DC Motor

0 reviews - Write a review

C$31.75

5 + C$30.70

10 + C$29.72

50 + C$28.79

100 + C$27.93

In Stock: 10000
Model: 42BLR53-12-01
Gross Weight: 0.38kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 42BLR53-12-01
Phase: 3
Poles: 4
Rated Voltage: 12V
Rated Speed: 3000±10%RPM
Noload Speed: 3800RPM
Rated Torque: 0.048Nm(6.8oz.in)
Rated Current: 1.9±10%A
Noload Current: 0.7A
Rated Power: 15W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ42mm
Body Length: 53mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.35kg

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1.9
Rated Power(W)	15
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.048
Rated Voltage(V)	12
Physical Specification
Body Length(mm)	53
Frame Size(mm)	Φ42
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
With Gearbox	No
