200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor

200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor - 6IK200GU-AFT/6GU200K | StepperOnline CA
6IK200GU-AFT/6GU200K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)104 x 104
Current(A)2.7
Question

Downloads

6IK200GU-XXFT_6GUXXK_manual.pdfPDF · 2.18MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
6IK200GU-AFT/6GU100KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200GU-AFT/6GU10KKeyway1PH 110VAC104 x 1042.7C$114.91In stock
6IK200GU-AFT/6GU15KKeyway1PH 110VAC104 x 1042.7C$114.91In stock
6IK200GU-AFT/6GU200KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200GU-AFT/6GU20KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200GU-AFT/6GU30KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200GU-AFT/6GU3KKeyway1PH 110VAC104 x 1042.7C$108.58In stock
6IK200GU-AFT/6GU50KKeyway1PH 110VAC104 x 1042.7C$121.25In stock
6IK200GU-AFT/6GU5KKeyway1PH 110VAC104 x 1042.7C$108.58In stock
6IK200GU-CFT/6GU100KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200GU-CFT/6GU10KKeyway1PH 220VAC104 x 1041.3C$114.91In stock
6IK200GU-CFT/6GU15KKeyway1PH 220VAC104 x 1041.3C$114.91In stock
6IK200GU-CFT/6GU200KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200GU-CFT/6GU20KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200GU-CFT/6GU30KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200GU-CFT/6GU30K-SALEKeyway1PH 220VAC104 x 1041.3C$123.18In stock
6IK200GU-CFT/6GU3KKeyway1PH 220VAC104 x 1041.3C$108.58In stock
6IK200GU-CFT/6GU50KKeyway1PH 220VAC104 x 1041.3C$121.25In stock
6IK200GU-CFT/6GU5KKeyway1PH 220VAC104 x 1041.3C$108.58In stock
6IK200GU-S/S3FT/6GU100KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$121.25In stock
6IK200GU-S/S3FT/6GU10KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$114.91In stock
6IK200GU-S/S3FT/6GU15KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$114.91In stock
6IK200GU-S/S3FT/6GU15K-SALEKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$116.74In stock
6IK200GU-S/S3FT/6GU15K-SALEKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$116.74In stock
6IK200GU-S/S3FT/6GU200KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$121.25In stock
6IK200GU-S/S3FT/6GU20KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$121.25In stock
6IK200GU-S/S3FT/6GU30KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$121.25In stock
6IK200GU-S/S3FT/6GU3KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$108.58In stock
6IK200GU-S/S3FT/6GU50KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$121.25In stock
6IK200GU-S/S3FT/6GU5KKeyway3PH 220VAC/380VAC104 x 1041.17,0.98,0.66,0.57C$108.58In stock
200W 110VAC 60Hz 7.75RPM 40.00Nm(5664.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Induction Motor
This 104x104mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 200... Read More
0 reviews • Write a review
from
C$121.25
5 + C$118.00
10 + C$114.91
50 + C$111.98
100 + C$109.20

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

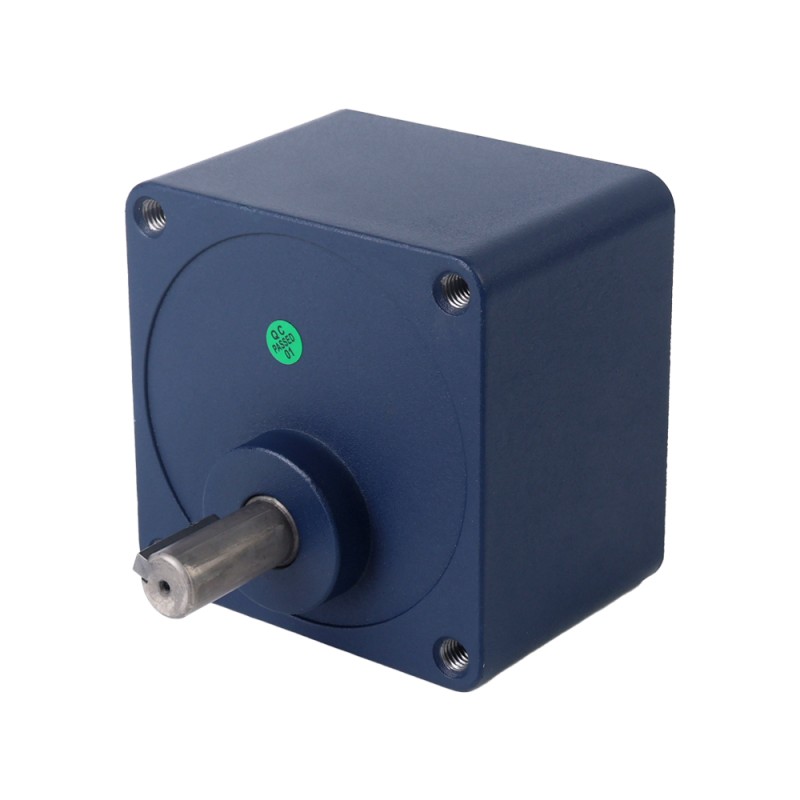

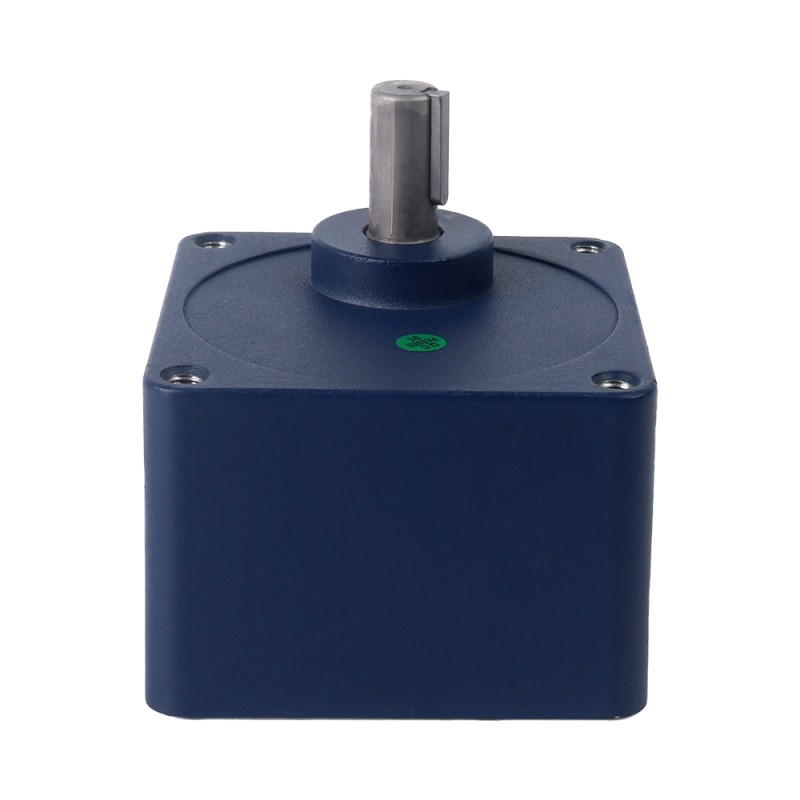

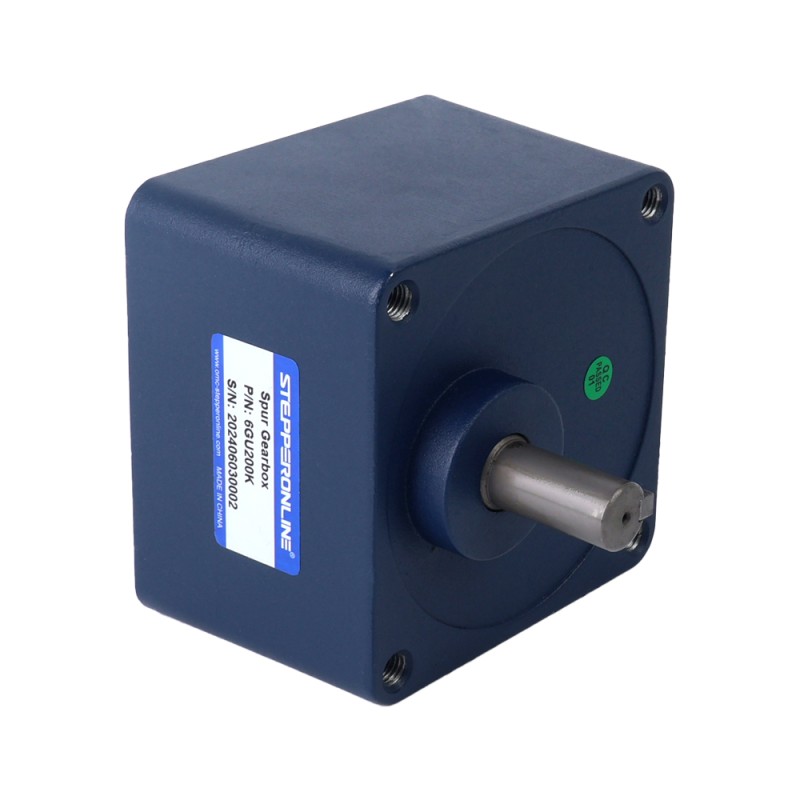

This 104x104mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 200, a torque of 40.00Nm(5664.47oz.in) and a speed of 7.75rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 6IK200GU-AFT/6GU200K
  • Gearbox Type: Spur Gearbox
  • Output Power: 200W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 2.70A
  • Gear Ratio: 200:1
  • Speed: 7.75rpm
  • Torque: 40.00Nm(5664.47oz.in)
  • Capacitor: 35.0μF/250VAC

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 245mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 42mm
  • Weight: 7.25kg

Wiring

Electrical Specification
Current(A) 2.7
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 200
Speed(rpm) 7.75
Torque(Nm) 40
Physical Specification
Frame Size(mm) 104 x 104
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
