57BLR70-24-02
Rated Voltage(V)24
Rated Speed(rpm)3500
Rated Torque(Nm)0.47
Frame Size(mm)Nema 23 (57 x 57)
Question

Pre-order: A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Downloads

Same series
ModelRated Voltage(V)Rated Speed(rpm)Rated Torque(Nm)Frame Size(mm)PriceStock
42BLR43-24-012420000.062⌀42C$28.81Backorder
42BLS40-24-012440000.06342 x 42C$24.88In stock
42BLS60-24-012440000.12542 x 42C$31.08In stock
42BSA46-24-012430000.08Nema 17 (42 x 42)C$23.04In stock
42BSA62-24-012430000.16Nema 17 (42 x 42)C$25.92In stock
42BSA62-36-013630000.16Nema 17 (42 x 42)C$25.92In stock
42BSA78-24-012430000.24Nema 17 (42 x 42)C$34.56In stock
42BSA78-48-014830000.24Nema 17 (42 x 42)C$34.56In stock
42BSB101-24-012430000.25Nema 17 (42 x 42)C$31.68In stock
42BSB101-48-014830000.25Nema 17 (42 x 42)C$31.68In stock
42BSB41-24-012430000.063Nema 17 (42 x 42)C$20.16In stock
42BSB61-24-012430000.125Nema 17 (42 x 42)C$23.04In stock
42BSB61-48-014830000.125Nema 17 (42 x 42)C$23.04In stock
42BSB81-24-012430000.19Nema 17 (42 x 42)C$28.80In stock
42BSB81-48-014830000.19Nema 17 (42 x 42)C$28.80In stock
42BYA43-24-012430000.04⌀42C$21.60In stock
42BYA51-24-012430000.08⌀42C$24.48In stock
42BYA73-24-012430000.16⌀42C$34.56In stock
57BLR110-36-013640000.44Nema 23 (57 x 57)C$52.37In stock
57BLR50-24-012435000.23Nema 23 (57 x 57)C$32.20In stock
57BLR50-36-013640000.11Nema 23 (57 x 57)C$32.20In stock
57BLR70-24-022435000.47Nema 23 (57 x 57)C$45.76In stock
57BLR70-36-013643000.22Nema 23 (57 x 57)C$37.29In stock
57BLY54-24-012440000.16⌀57C$27.12In stock
57BSA100-36-013630000.6Nema 23 (57 x 57)C$63.36In stock
57BSA100-48-014830000.6Nema 23 (57 x 57)C$63.36In stock
57BSA58-24-012430000.2Nema 23 (57 x 57)C$31.68In stock
57BSA79-36-013630000.4Nema 23 (57 x 57)C$46.08In stock
57BSD116-36-013630000.6Nema 23 (57 x 57)C$41.76In stock
57BSD116-48-014830000.6Nema 23 (57 x 57)C$41.76In stock
View all in category

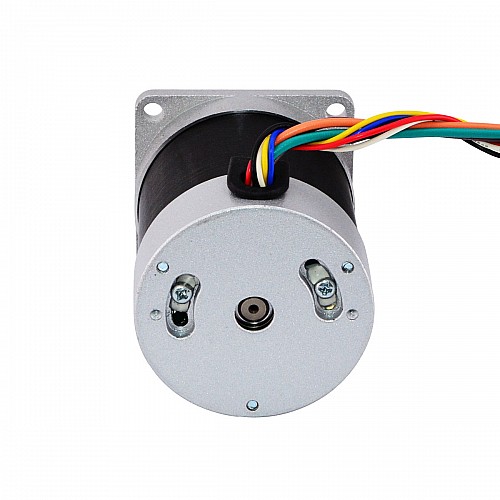

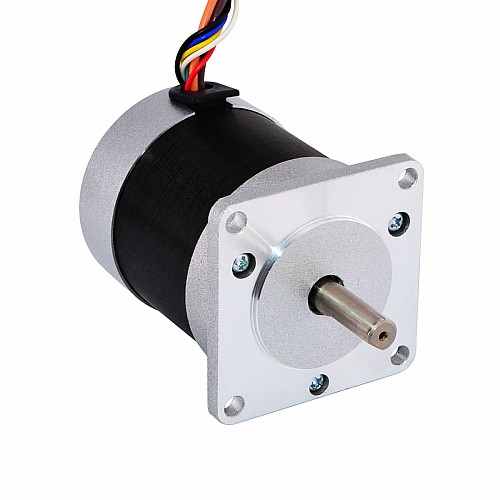

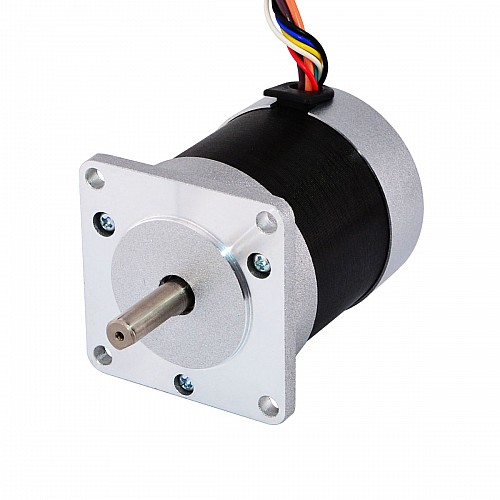

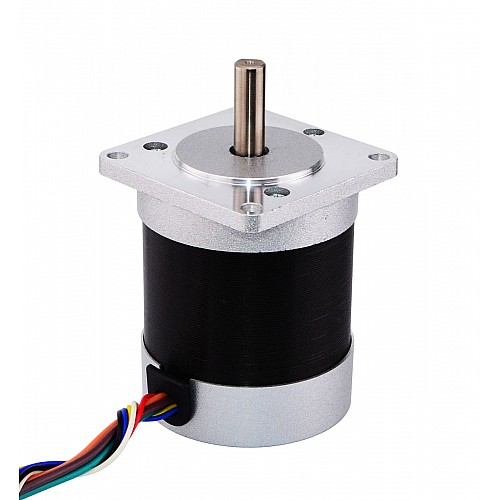

24V 3500RPM 0.47Nm 172W 10.4A Ф57x74mm Brushless DC Motor
Electrical Specification Manufacturer Part Number: 57BLR70-24-02 Phase: 3 Poles: 4 Rated Vo... Read More
from
C$45.76
5 or more: C$44.20
10 or more: C$42.73
50 or more: C$41.37
100 or more: C$40.09

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

  • Manufacturer Part Number: 57BLR70-24-02
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 3500±10%RPM
  • Rated Torque: 0.47Nm(66.56oz.in)
  • Rated Current: 10.4±10%A
  • Rated Power: 172W
  • Insulation Class: B 130°C[266°F]
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ57mm
  • Body Length: 74mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Shaft Type: D-cut
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Weight: 0.65kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 10.4
Rated Power(W) 172
Rated Speed(rpm) 3500
Rated Torque(Nm) 0.47
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 74
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 20
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 25
With Gearbox No
