24V 40W 15RPM Geared Brushless DC Motor 8.00Nm(1132.90oz.in) 200:1 Spur Gearbox

0 reviews - Write a review

C$88.70

5 + C$85.04

10 + C$81.68

50 + C$78.56

100 + C$75.69

In Stock: 10000
Model: F4B40-24GN-30S/4GN200K
Gross Weight: 2.18kg
Certificated: ISO, CE

Available Options

Ships from (Click country for real-time stock)

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

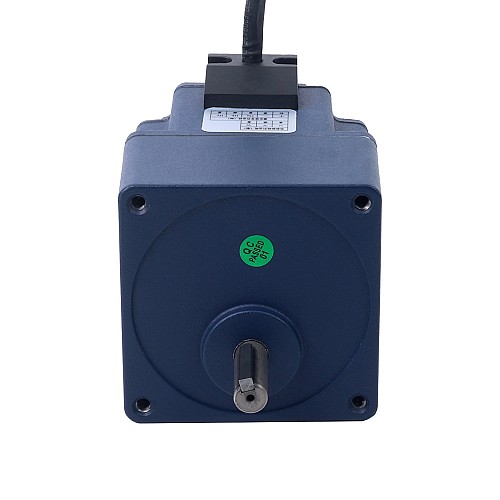

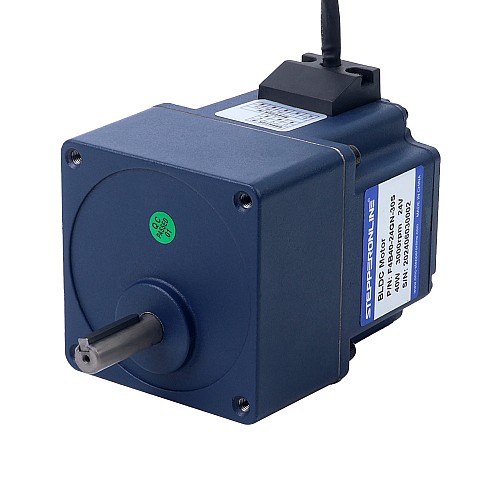

This is a 24V 40W brushless DC gear Motor with a flange of 80x80mm. The built-in 200:1 spur gearbox brings speed and torque to 15rpm and 8.00Nm(1132.90oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

P/N: F4B40-24GN-30S/4GN200K
Phase: 3
Poles: 10
Rated Current: 2.50A
Rated Voltage: 24V
Rated Speed: 15rpm
Rated Torque: 8.00Nm(1132.90oz.in)
No-load Current: 0.70A
Rated Power: 40W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 80x80mm
Body Length: 102mm
Gearbox Type: Spur Gearbox
Gearbox Ratio: 200:1
Shaft Type: Keyway
Shaft Diameter: Φ10mm
Shaft Length: 33mm
Keyway Length: 25mm
Bearing: Deep Groove Ball
Weight: 1.86kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	0.7
No. of Phase	3
Rated Current(A)	2.50
Rated Power(W)	40
Rated Speed(rpm)	15
Rated Torque(Nm)	8.00
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	102
Frame Size(mm)	80 x 80
Gear Ratio(xx:1)	200
Gearbox Type	Square Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	10
Shaft Length(mm)	33
With Gearbox	Yes
