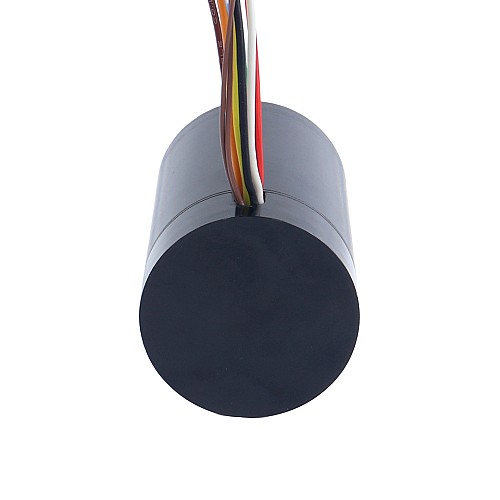

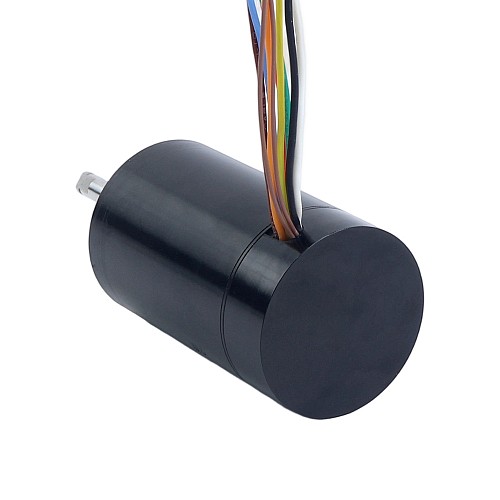

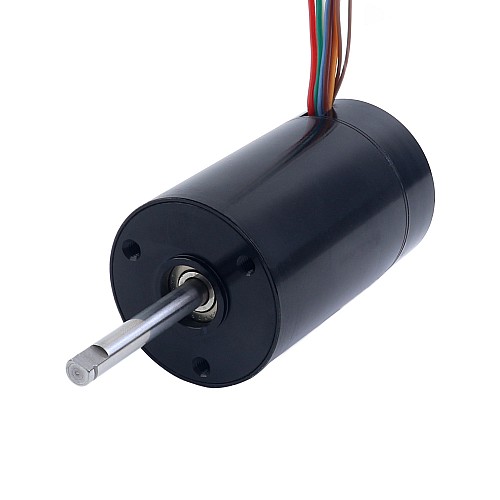

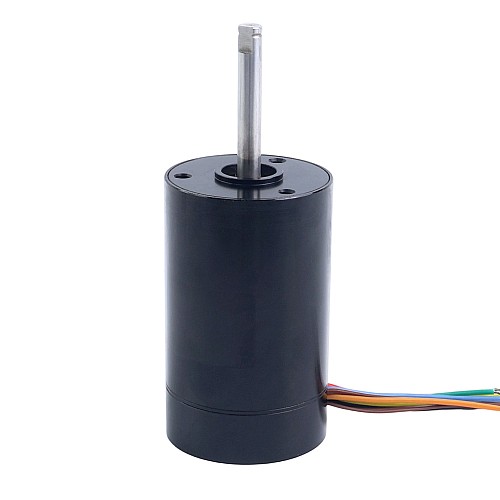

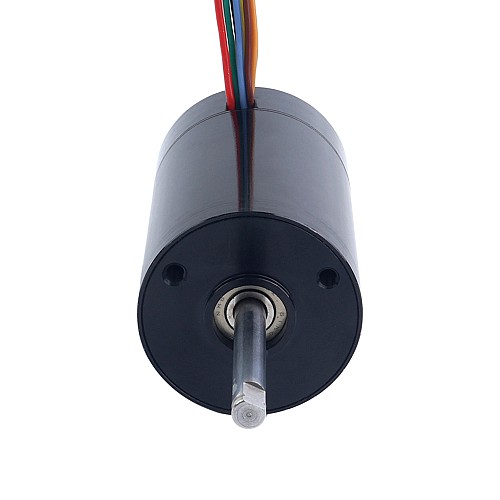

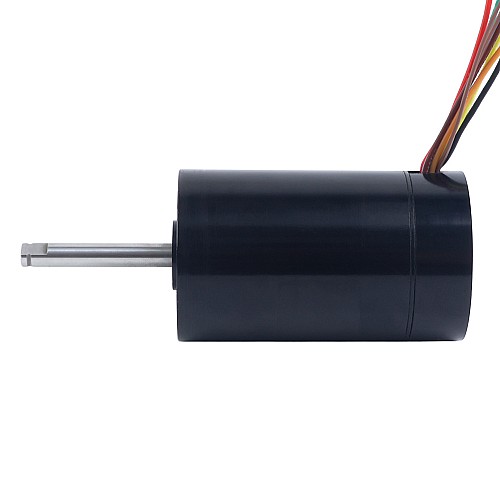

24V 6000RPM 304mNm 191W 11.99A Round Ф50x70mm Brushless Coreless Motor

24V 304mNm 191W 11.99A Round Ф50x70mm Brushless Coreless Motor - 50CL70-24-P2-6000 | StepperOnline CA

New

24V 6000RPM 304mNm 191W 11.99A Round Ф50x70mm Brushless Coreless Motor

0 reviews - Write a review

C$252.24

5 + C$241.83

10 + C$232.26

50 + C$223.41

100 + C$215.21

In Stock: Pre-order
Model: 50CL70-24-P2-6000
Gross Weight: 0.72kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 24V brushless coreless motor delivers an output power of 191W. It achieves a rated speed of 6000rpm with a current draw of 11.99A, and provides a rated torque of 304mNm. It is suitable for compact, responsive applications requiring low inertia.

Coreless motor delivers exceptional efficiency by eliminating iron losses, significantly cutting energy use in continuous automation. Its ultra-low inertia enables millisecond-level response for precise positioning. The ultra-compact design and inherently quiet, low-vibration operation ensure easy integration and reliable, maintenance-free performance. Perfect for robotics, lab automation, and precision medical devices.

Electrical Specification

Manufacturer Part Number: 50CL70-24-P2-6000
Number of Pole Pairs: 1
Rated Voltage: 24V
Terminal Resistance: 0.32Ohms
Terminal Inductance: 0.09mH
No Load Speed: 9000rpm
No Load Current: 0.35A
Rated Speed: 6000rpm
Rated Current: 11.99A
Rated Torque: 304mNm
Rated Power: 191W
The Greatest Power Output: 445.81W
Efficiency: 86.8%
Torque Constant: 25.35mNm/A
Stall Torque: 1892.08mNm
Back-EMF Constant: 2.65mV/rpm
Speed Constant: 376.76rpm/V
Friction Torque: 8.87mNm
Current Constant: 0.04A/mNm
Vibration Amplitude: <=0.1mm
Wingding Max.Permissible Temperature: 180°C
Operating Temperature Range: -20 - 80°C
Noise: <=35dB
Lifetime: 8000hours

Physical Specification

Frame Size: Φ50mm
Motor Length: 70mm
Shaft Diameter: Φ6mm
Shaft Length: 17.5mm
Cable Length: 300mm

Connection

U	V	W	+5V	GND	A	B	C
Red	Black	White	Green	Blue	Brown	Yellow	Orange

Electrical Specification
Back-Emf Constant(mV/Rpm)	2.65
Current Constant(A/mNm)	0.04
Efficiency(%)	86.80
Friction Torque(mNm)	8.87
Max. Output Power(W)	445.81
No-load Current(A)	0.35
No-Load Speed(rpm)	9000
No. of Pole	2
Rated Current(A)	11.99
Rated Power(W)	191
Rated Speed(rpm)	6000
Rated Torque(mNm)	304.00
Rated Voltage(V)	24
Speed Constant(Rpm/V)	376.76
Stall Torque(mNm)	1892.08
Terminal Inductance(mH)	0.09
Terminal Resistance(Ohms)	0.32
Torque Constant(mNm/A)	25.35
Physical Specification
Inventory Method	Dedicated Inventory

File	Size
50CL70-24-P2-6000_Full_Datasheet.pdf	45.63KB	Download

Tags: Rated Voltage(V): 24, Rated Current(A): 11.99, Rated Speed(rpm): 6000, Rated Power(W): 191, Efficiency(%): 86.80, Max. Output Power(W): 445.81, Inventory Method: Dedicated Inventory, No-load Current(A): 0.35, No. of Pole: 2, Terminal Resistance(Ohms): 0.32, Rated Torque(mNm): 304.00, Terminal Inductance(mH): 0.09, No-Load Speed(rpm): 9000, Torque Constant(mNm/A): 25.35, Stall Torque(mNm): 1892.08, Back-Emf Constant(mV/Rpm): 2.65, Friction Torque(mNm): 8.87, Current Constant(A/mNm): 0.04, Speed Constant(Rpm/V): 376.76
