4IK25RGN-A/4GN30RT
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)80 x 80
Current(A)0.5
Question

Downloads

4IK25RGN-A_4GNXXRX_manual.pdfPDF · 1.01MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25RGN-A/4GN15RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN15RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN180RCHollow1PH 110VAC80 x 800.5C$80.04In stock
4IK25RGN-A/4GN180RTKeyway1PH 110VAC80 x 800.5C$80.04In stock
4IK25RGN-A/4GN200KKeyway1PH 110VAC80 x 800.5C$53.10In stock
4IK25RGN-A/4GN20KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25RGN-A/4GN20RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN20RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN30KKeyway1PH 110VAC80 x 800.5C$50.72In stock
4IK25RGN-A/4GN30RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN30RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN3KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25RGN-A/4GN50KKeyway1PH 110VAC80 x 800.5C$50.72In stock
4IK25RGN-A/4GN50RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN50RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25RGN-A/4GN5KKeyway1PH 110VAC80 x 800.5C$48.08In stock
4IK25RGN-C/4GN100KKeyway1PH 220VAC80 x 800.24C$53.10In stock
4IK25RGN-C/4GN100RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25RGN-C/4GN100RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25RGN-C/4GN100RT-SALEKeyway1PH 220VAC80 x 800.24C$81.32In stock
4IK25RGN-C/4GN10KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25RGN-C/4GN10RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25RGN-C/4GN10RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25RGN-C/4GN15KKeyway1PH 220VAC80 x 800.24C$48.08In stock
4IK25RGN-C/4GN15RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25RGN-C/4GN15RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25RGN-C/4GN180RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25RGN-C/4GN180RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25RGN-C/4GN200KKeyway1PH 220VAC80 x 800.24C$53.10In stock
4IK25RGN-C/4GN200K-SALEKeyway1PH 220VAC80 x 800.24C$53.94In stock
View all in category
25W 110VAC 60Hz 3-51.67RPM 3.90Nm(552.28oz.in) Flange 80mm Right Angle Gearbox Single-phase AC Variable Speed Motor
This 80x80mm keyway shaft single-phase AC motor with adjustable speed control is operated with 110VA... Read More
0 reviews • Write a review
from
C$77.92
5 + C$75.84
10 + C$73.85
50 + C$71.98
100 + C$70.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

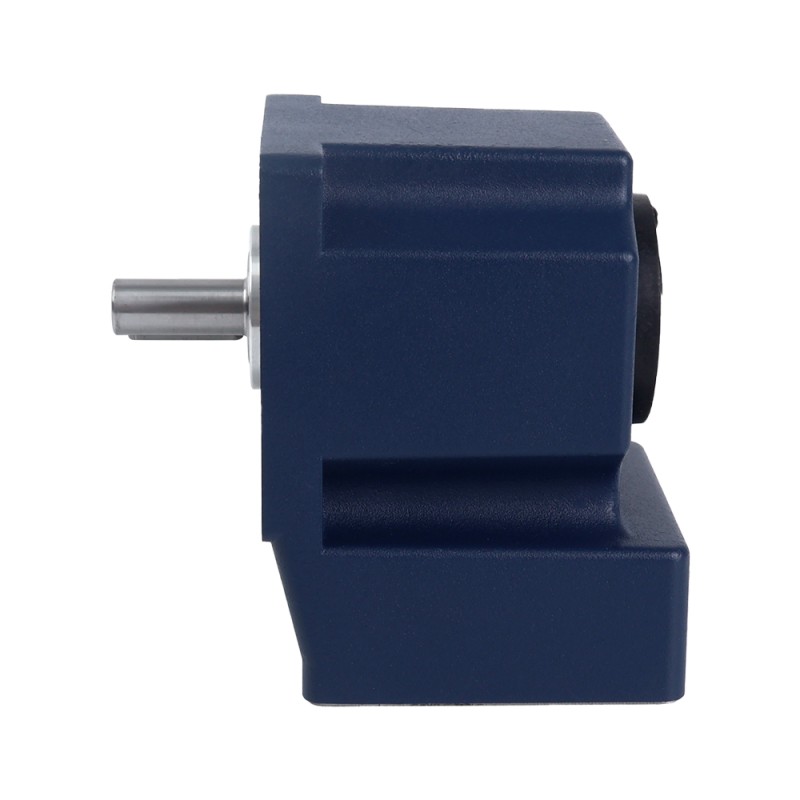

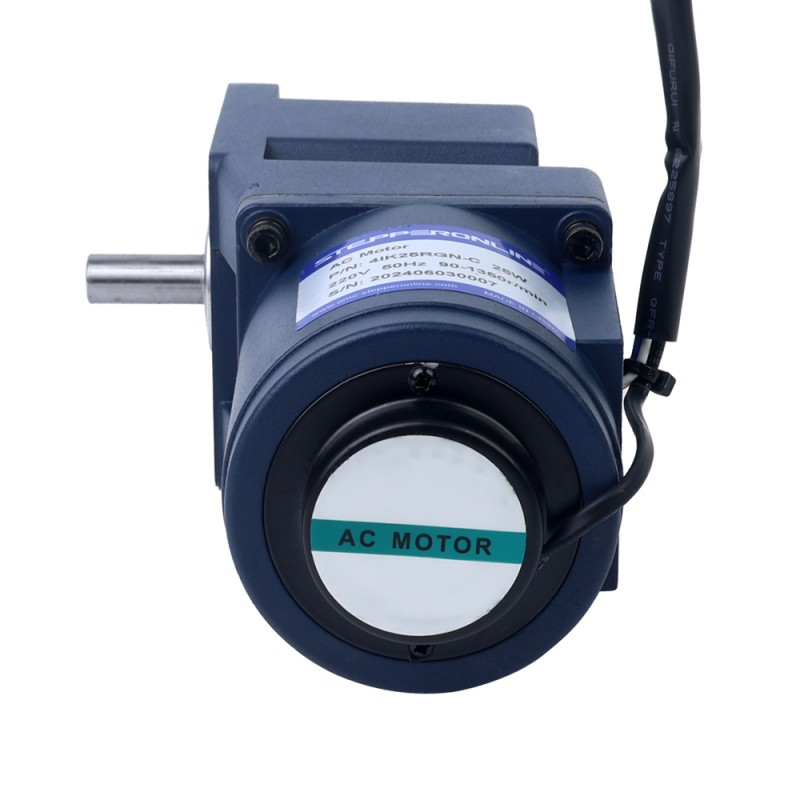

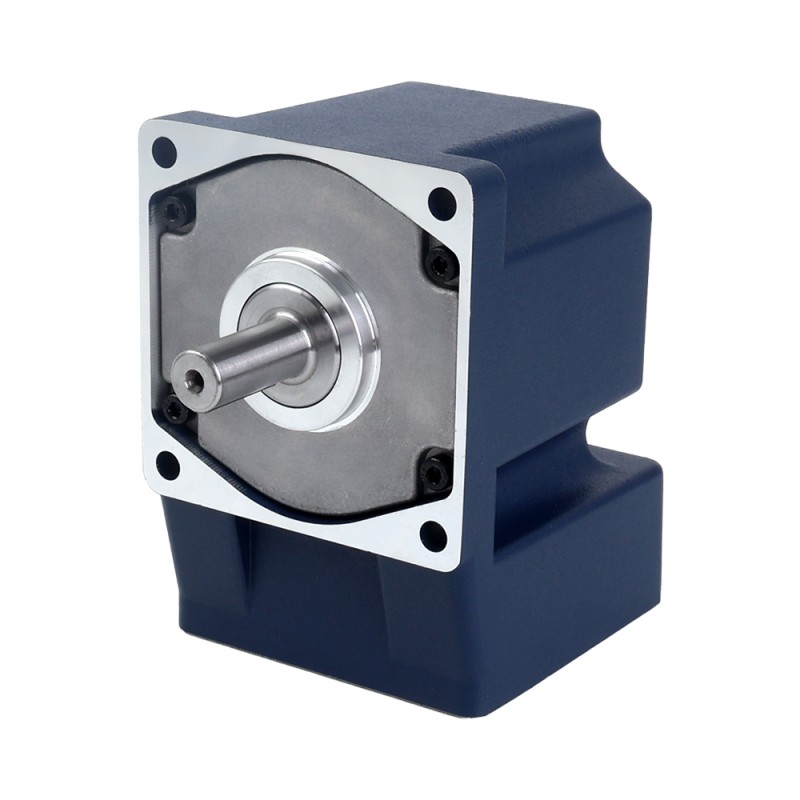

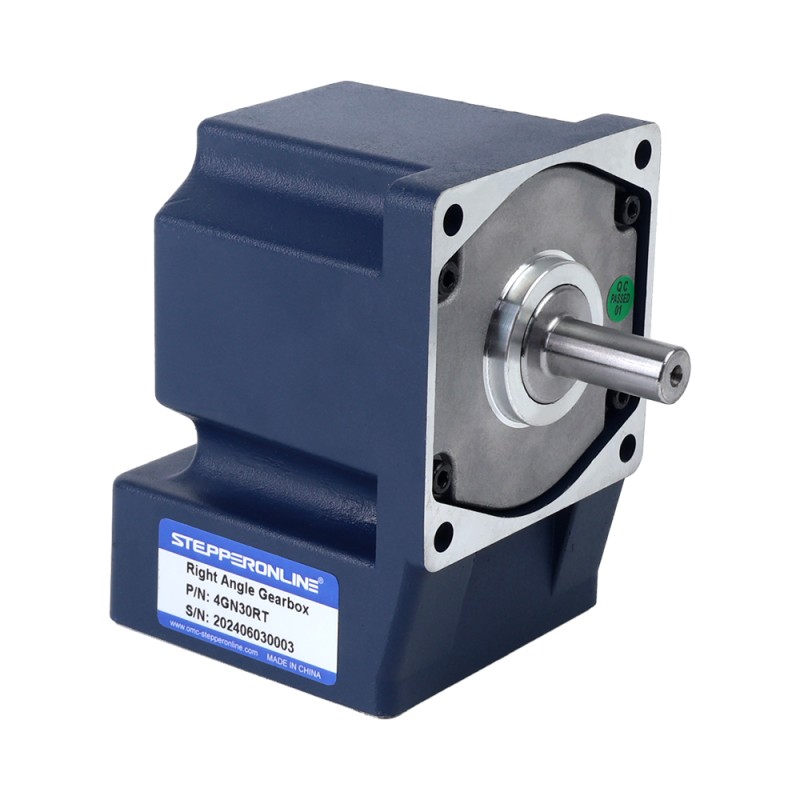

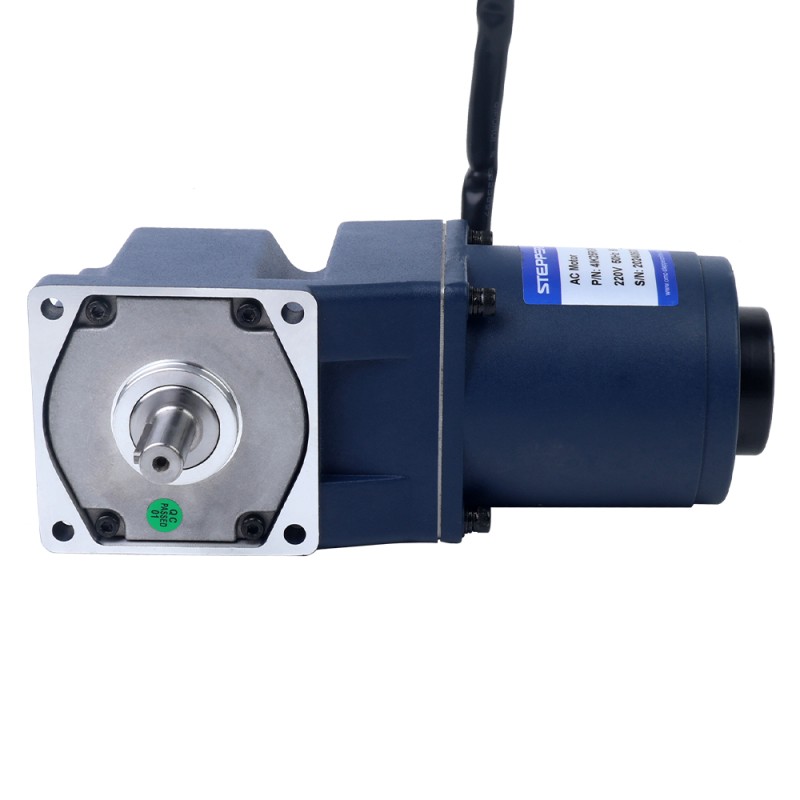

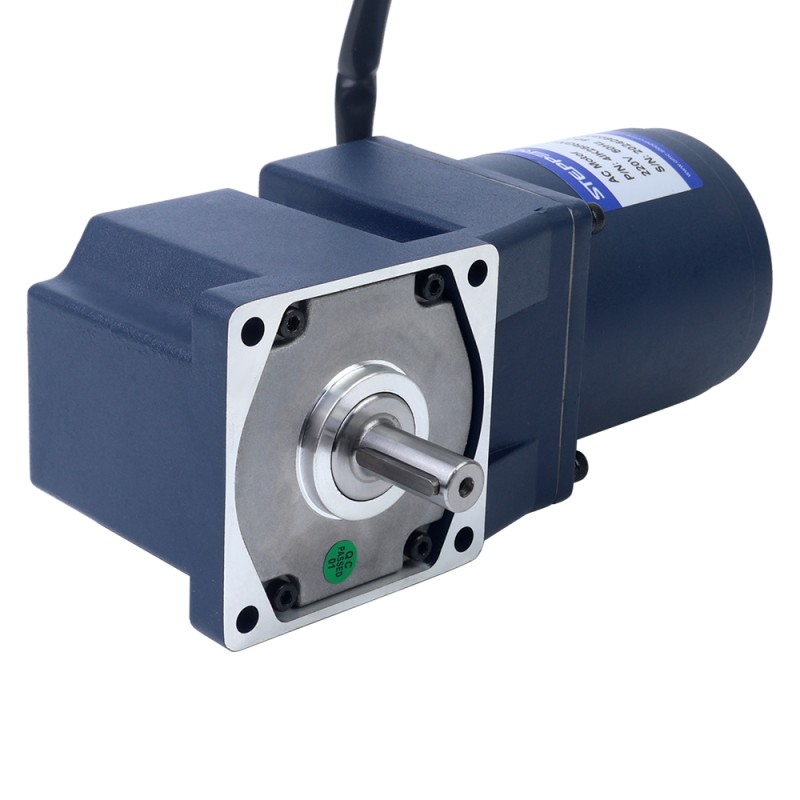

This 80x80mm keyway shaft single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 3-51.67rpm and a right angle gearbox with a gear ratio of 30. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25RGN-A/4GN30RT
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.50A
  • Gear Ratio: 30:1
  • Speed Range: 3-51.67rpm
  • Maximum Torque: 3.90Nm(552.28oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.8kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 3.90
Output Power(W) 25
Speed Range(rpm) 3-51.67
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 30
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway
