4IK25GN-AT/4GN30RT
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)80 x 80
Current(A)0.5
Question

Downloads

4IK25GN-XXT_4GNXXRX_manual.pdfPDF · 1.71MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN100RTKeyway1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN10RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN10RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN15RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN15RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN180RCHollow1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN180RTKeyway1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN20RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN20RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN30RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN30RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-CT/4GN100RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN100RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN10RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN10RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN180RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN180RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN20RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN20RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-S/S3T/4GN100RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN100RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN10RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
View all in category
25W 110VAC 60Hz 45RPM 3.90Nm(552.29oz.in) Flange 80mm Right Angle Gearbox Keyway Shaft Single-phase AC Induction Motor
This 80x80mm keyway shaft single-phase AC induction gear motor is powered by 110VAC and has a gear r... Read More
0 reviews • Write a review
from
C$77.92
5 + C$75.84
10 + C$73.85
50 + C$71.98
100 + C$70.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 80x80mm keyway shaft single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 30, a torque of 3.90Nm(552.29oz.in) and a speed of 45rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-AT/4GN30RT
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.50A
  • Gear Ratio: 30:1
  • Speed: 45rpm
  • Torque: 3.90Nm(552.29oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.7kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 25
Speed(rpm) 45
Torque(Nm) 3.9
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 30
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview
LRS-200-24 MEANWELL 200W 24VDC 8.8A 115/230VAC Enclosed Switching Power Supply
LRS-200-24 MEANWELL 200W 24VDC 8.8A 115/230VAC Enclosed Switching Power Supply
This is a 200W 24VDC 8.8A power supply. MEANWELL LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Ad..
from
C$22.50
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-50-5 MEANWELL 50W 5VDC 10A 115/230VAC Enclosed Switching Power Supply
LRS-50-5 MEANWELL 50W 5VDC 10A 115/230VAC Enclosed Switching Power Supply
This is a 50W 5VDC 10A power supply. MEANWELL LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adoptin..
from
C$12.59
Add to Cart
Add to Wish List Compare this Product
Quickview
Handheld Intelligent Setting Unit for Y Series Closed Loop Driver
Handheld Intelligent Setting Unit for Y Series Closed Loop Driver
Handheld Intelligent Setting Unit for CL57Y & CL86Y...
from
C$13.04
Add to Cart
Add to Wish List Compare this Product
Quickview
25W 220/380VAC 1.50Nm(212.42oz.in)/1.21Nm(171.35oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
25W 220/380VAC 1.50Nm(212.42oz.in)/1.21Nm(171.35oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
This 80x80mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 10. The simple brushless structure,..
from
C$48.08
Add to Cart
Add to Wish List Compare this Product
Quickview
25W 220/380VAC 90/103RPM 2.25Nm(318.63oz.in)/1.82Nm(257.73oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
25W 220/380VAC 90/103RPM 2.25Nm(318.63oz.in)/1.82Nm(257.73oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
This 80x80mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The simple brushless structure,..
from
C$48.08
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-600-48 MEANWELL 600W 48VDC 12.5A 115/230VAC Enclosed Switching Power Supply
LRS-600-48 MEANWELL 600W 48VDC 12.5A 115/230VAC Enclosed Switching Power Supply
This is a 600W 48VDC 12.5A power supply. MEANWELL LRS-600 series is a 600W single-output enclosed type power supply with 41mm of low profile design. A..
from
C$85.83
Add to Cart
Add to Wish List Compare this Product
Quickview

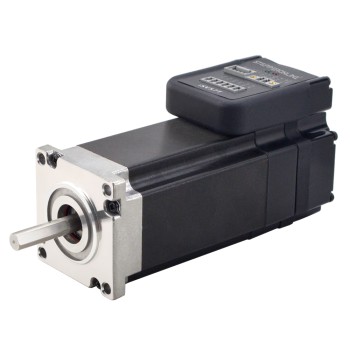

CN On Sale - NEMA 23 Integrated Easy Servo Motor 180W 3000rpm 0.6Nm(84.98oz.in) 20-50VDC Brushless DC Servo Motor
