25W 110VAC 60Hz 6-103.33RPM 1.90Nm(269.06oz.in) Flange 80mm Right Angle Gearbox Single-phase AC Variable Speed Motor
0 reviews - Write a review
C$98.58
5 + C$95.31
10 + C$92.26
50 + C$89.41
100 + C$86.71
  • In Stock: 10000
  • Model: 4IK25RGN-A/4GN15RT
  • Gross Weight: 4.03kg
  • Certificated: ISO, CE, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

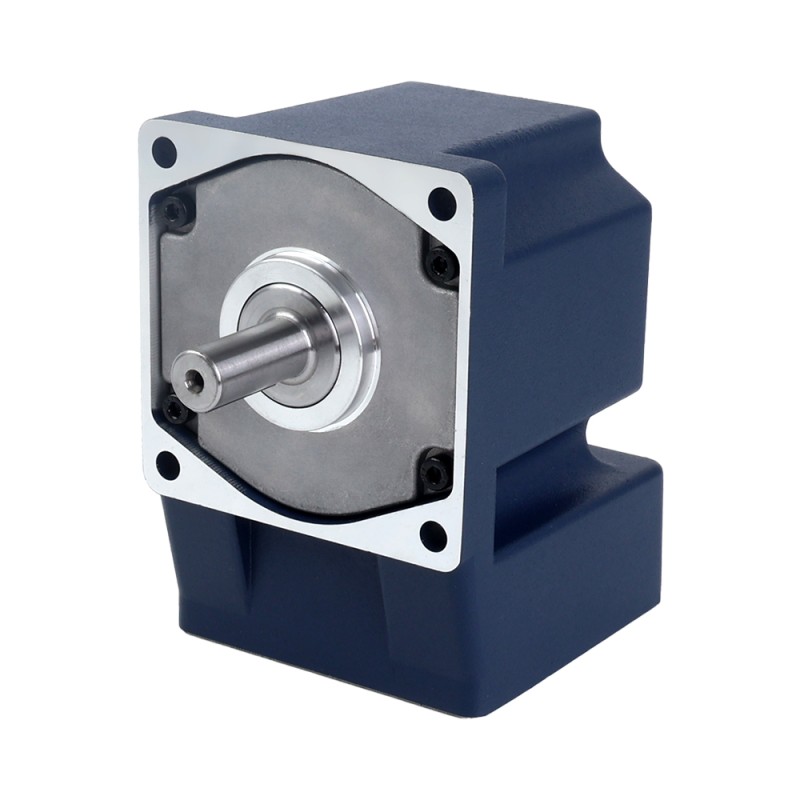

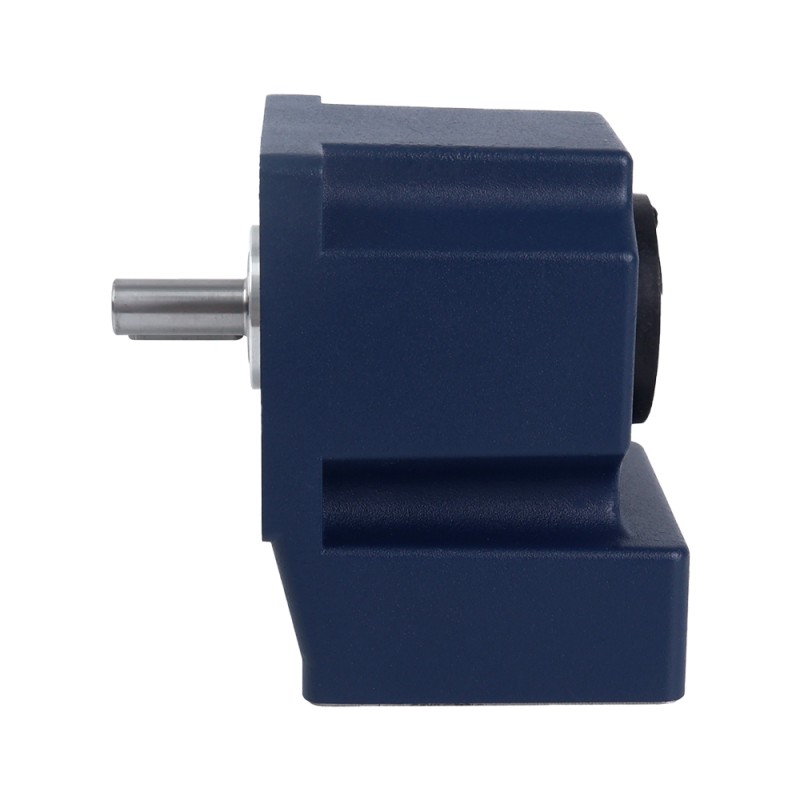

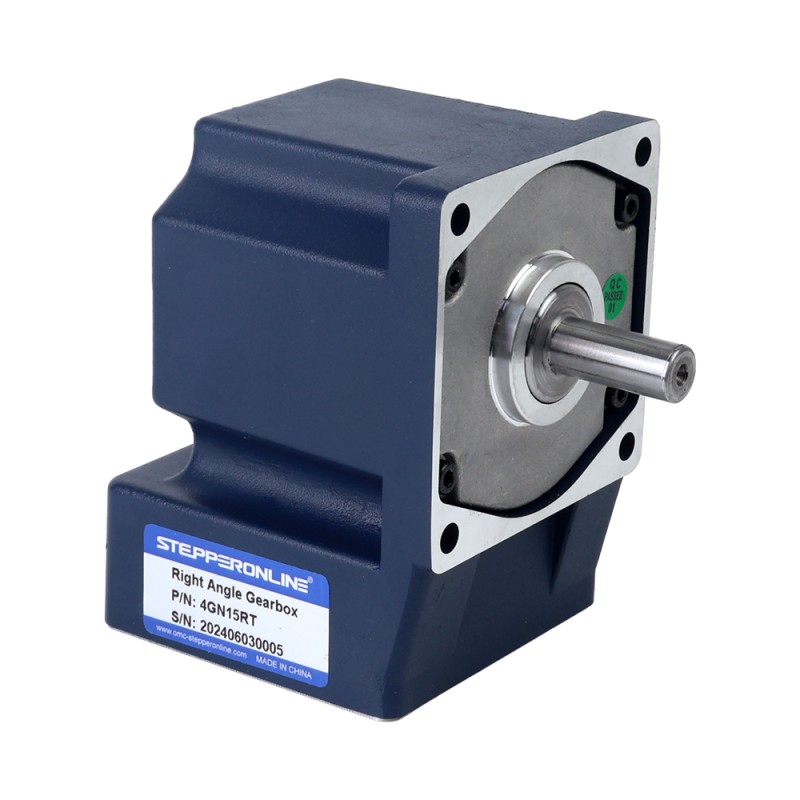

This 80x80mm keyway shaft single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 6-103.33rpm and a right angle gearbox with a gear ratio of 15. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25RGN-A/4GN15RT
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.50A
  • Gear Ratio: 15:1
  • Speed Range: 6-103.33rpm
  • Maximum Torque: 1.90Nm(269.06oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.8kg

Wiring

The variable speed motor must be connected to a speed controller for speed regulation. The recommended speed controller to match this motor is FS-02-110V-25W.
Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 1.90
Output Power(W) 25
Speed Range(rpm) 6-103.33
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 15
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway


File Size
4IK25RGN-A_4GNXXRX_manual.pdf 1.01MB Download
