25W 220VAC 50Hz 0.45-6.75RPM 8.00Nm(1132.89oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor
C$67.16
5 + C$64.94
10 + C$62.87
50 + C$60.92
100 + C$59.08
- In Stock: 10000
- Model: 4IK25RGN-C/4GN200K
- Gross Weight: 2.64kg
- Certificated: ISO, CE, RoHS

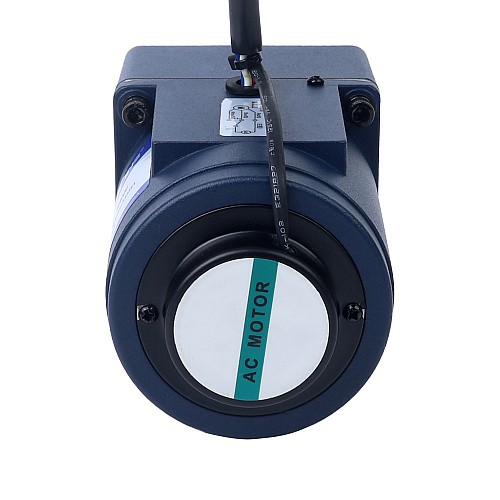

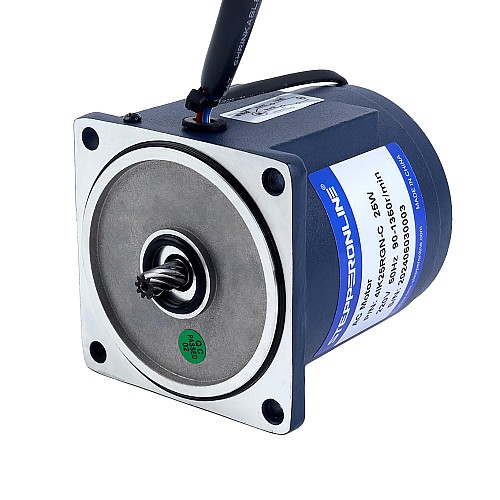

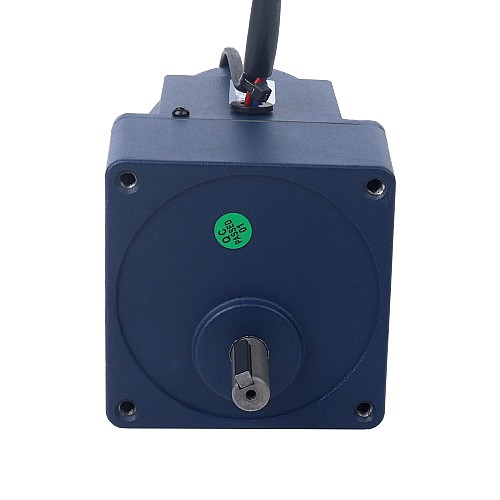

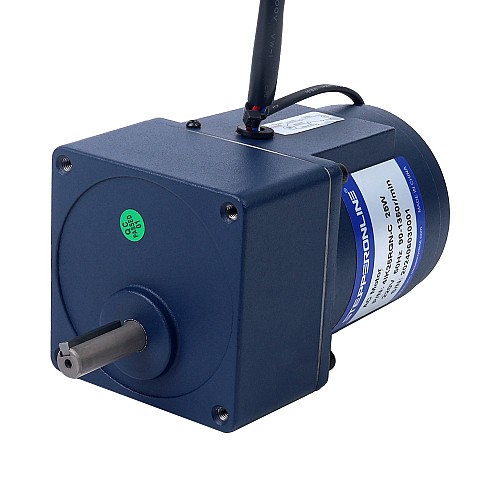

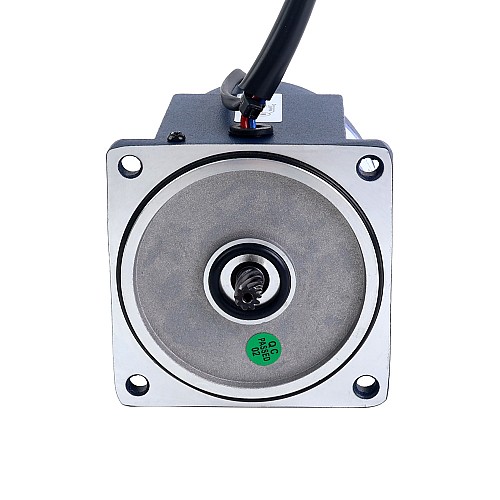

This 80x80mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 0.45-6.75rpm and a gearbox with a gear ratio of 200. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.
Electrical Specifications
- P/N: 4IK25RGN-C/4GN200K

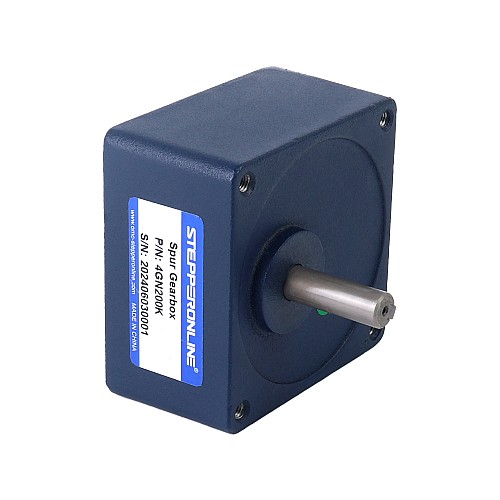

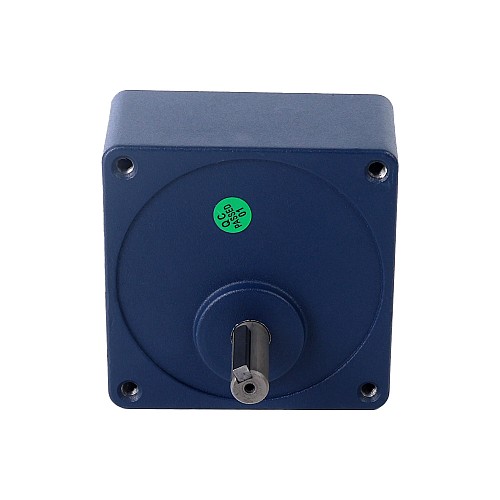

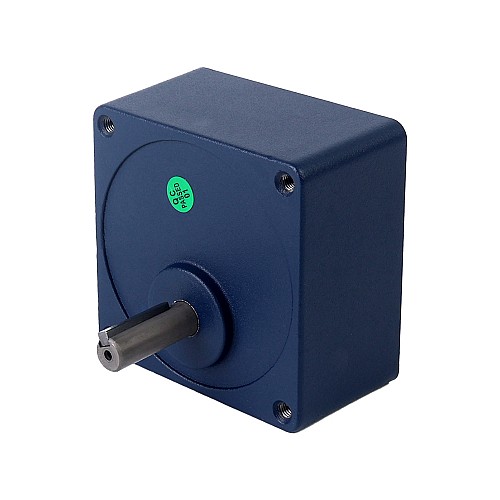

- Gearbox Type: Spur Gearbox
- Output Power: 25W
- Voltage: 1PH 220VAC
- Frequency: 50Hz
- Current: 0.24A
- Gear Ratio: 200:1
- Speed Range: 0.45-6.75rpm
- Maximum Torque: 8.00Nm(1132.89oz.in)
- Capacitor: 1.8μF/450VAC
Physical Specifications
- Frame Size: 80x80mm
- Body Length: 140.5mm
- Shaft Type: Keyway
- Shaft Diameter: Φ10mm
- Shaft Length: 33mm
- Weight: 2.34kg
Wiring
The variable speed motor must be connected to a speed controller for speed regulation. The recommended speed controller to match this motor is FS-02-220V-25W.
