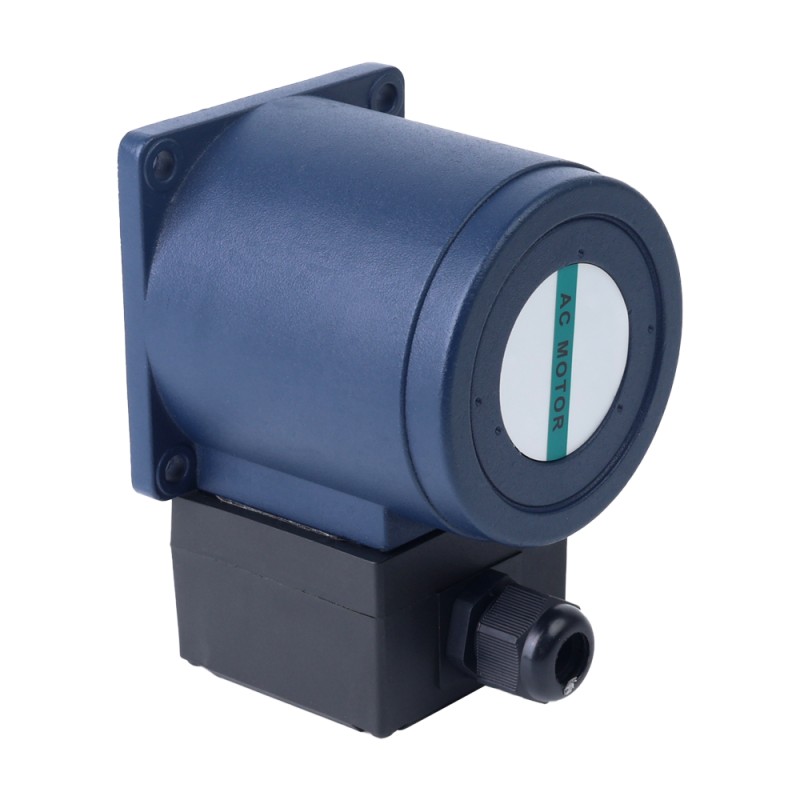

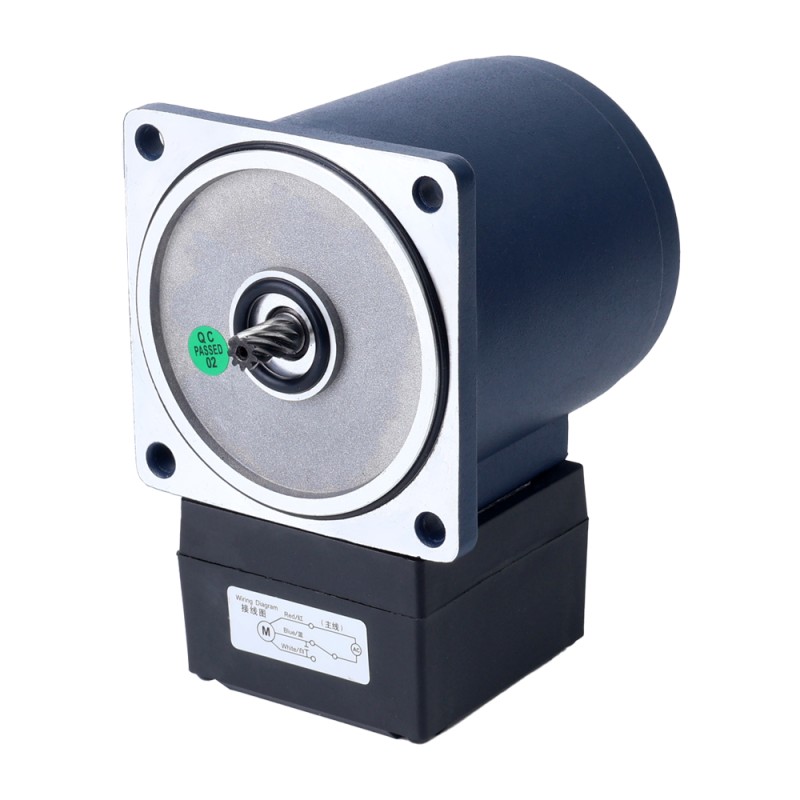

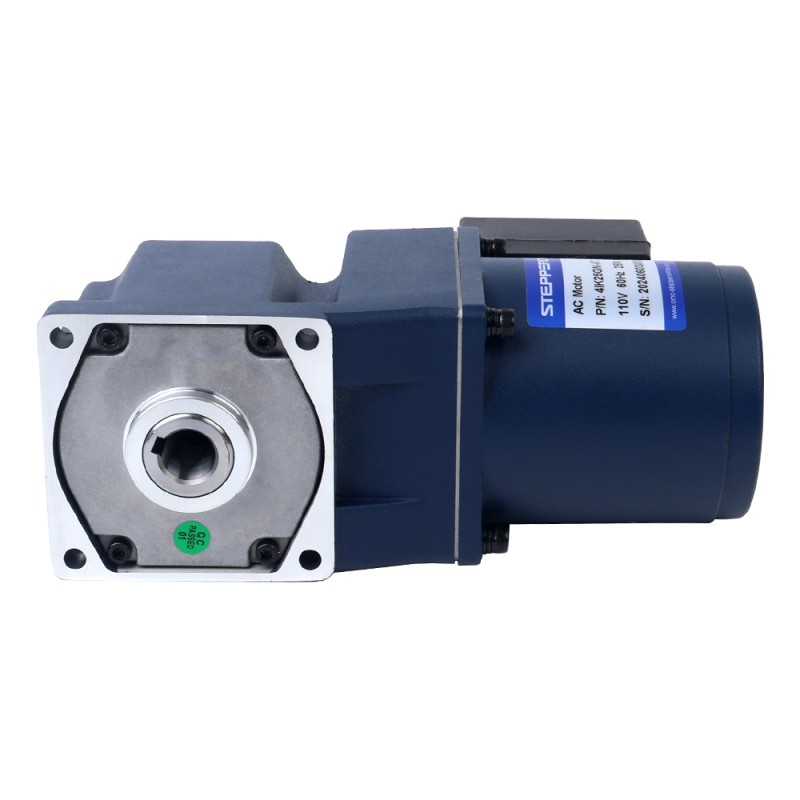

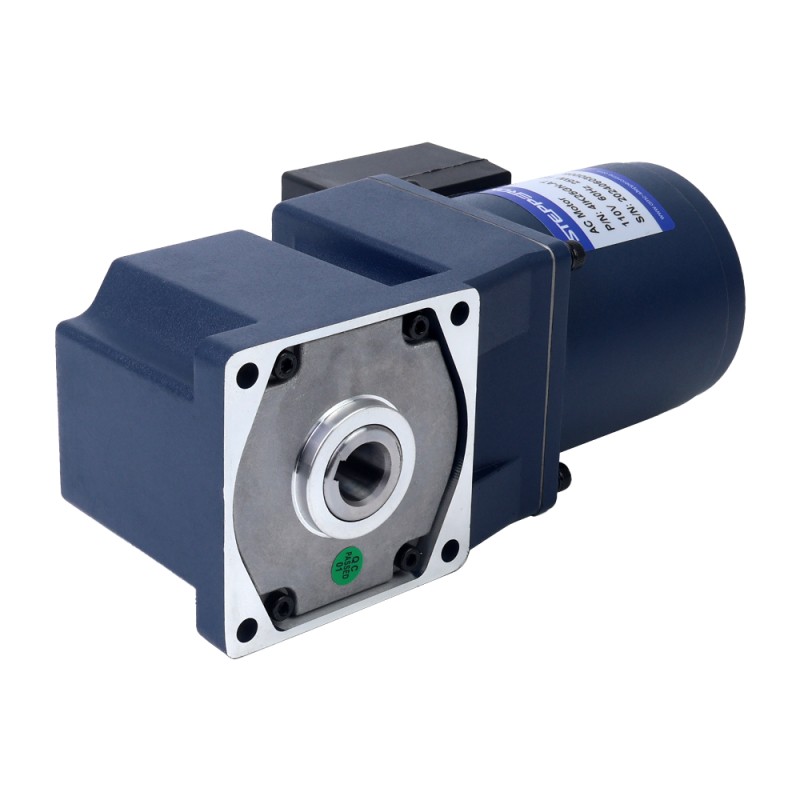

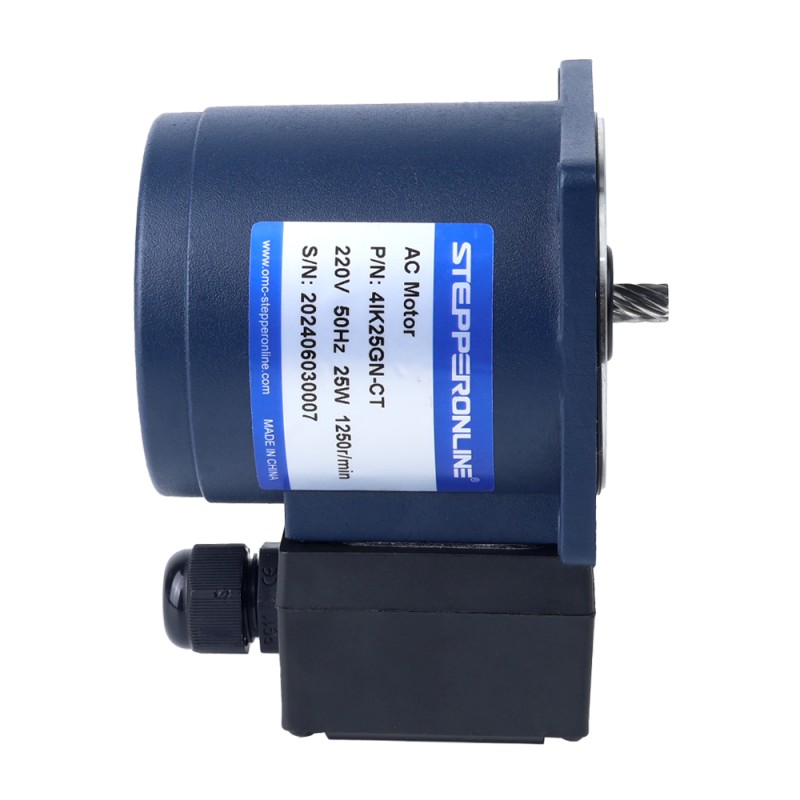

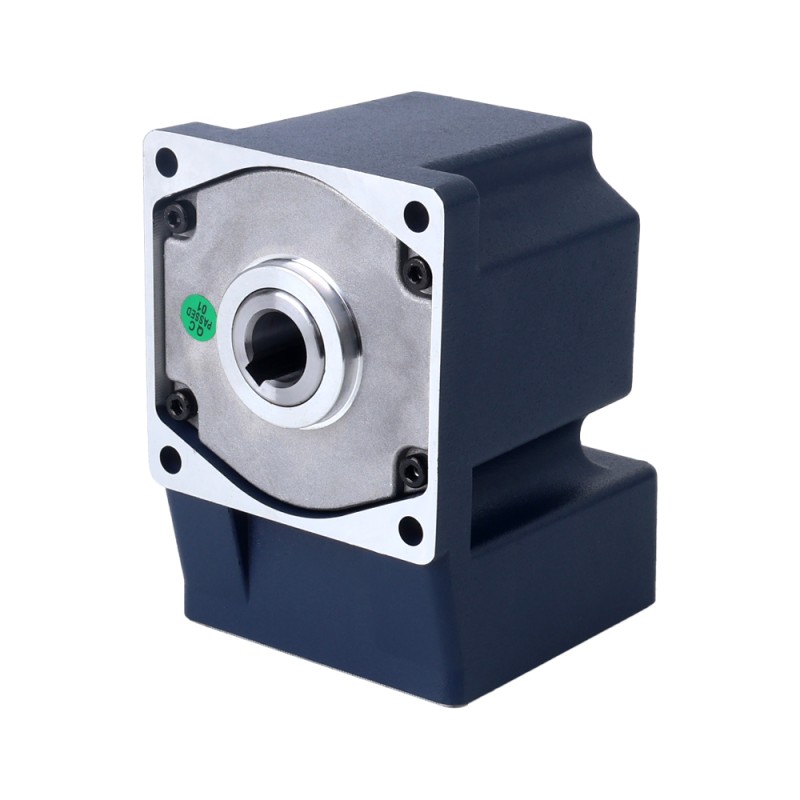

25W 220VAC 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor

25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
25W 220VAC 50Hz 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-CT/4GN20RC | StepperOnline CA
4IK25GN-CT/4GN20RC
Output Shaft TypeHollow
Input Voltage(V)1PH 220VAC
Frame Size(mm)80 x 80
Current(A)0.24
Question

Downloads

4IK25GN-XXT_4GNXXRX_manual.pdfPDF · 1.71MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN50RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-CT/4GN100RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN100RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN10RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN10RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN180RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN180RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN20RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN20RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-S/S3T/4GN100RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN100RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN10RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN10RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN15RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN15RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN180RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN180RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN20RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN20RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN30RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN30RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN50RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
4IK25GN-S/S3T/4GN50RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$77.92In stock
View all in category
25W 220VAC 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 220VAC and has a gear r... Read More
0 reviews • Write a review
from
C$77.92
5 + C$75.84
10 + C$73.85
50 + C$71.98
100 + C$70.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

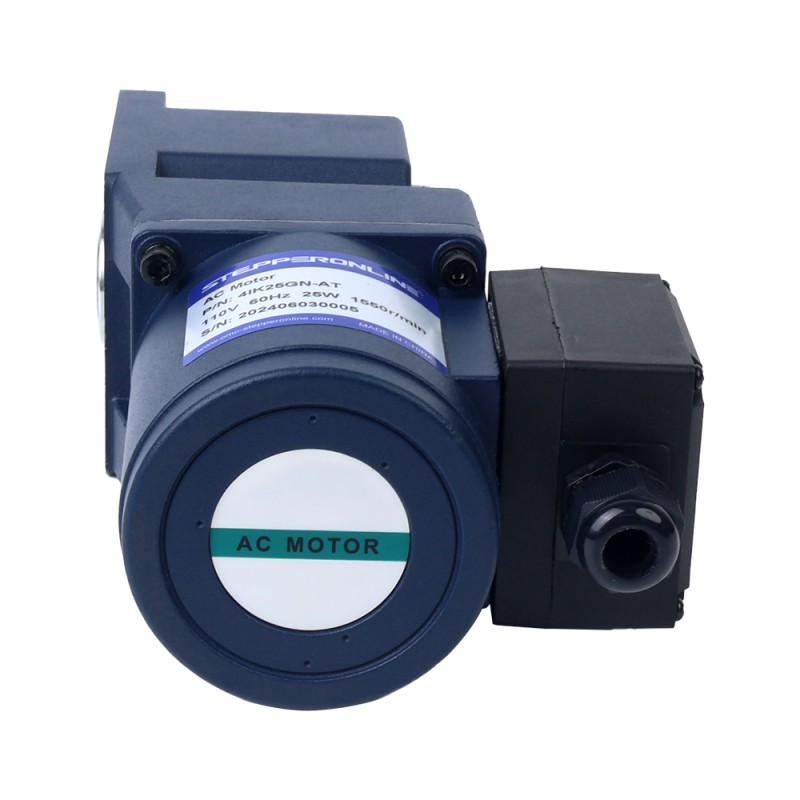

This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 20, a torque of 2.60Nm(368.19oz.in) and a speed of 67.5rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-CT/4GN20RC

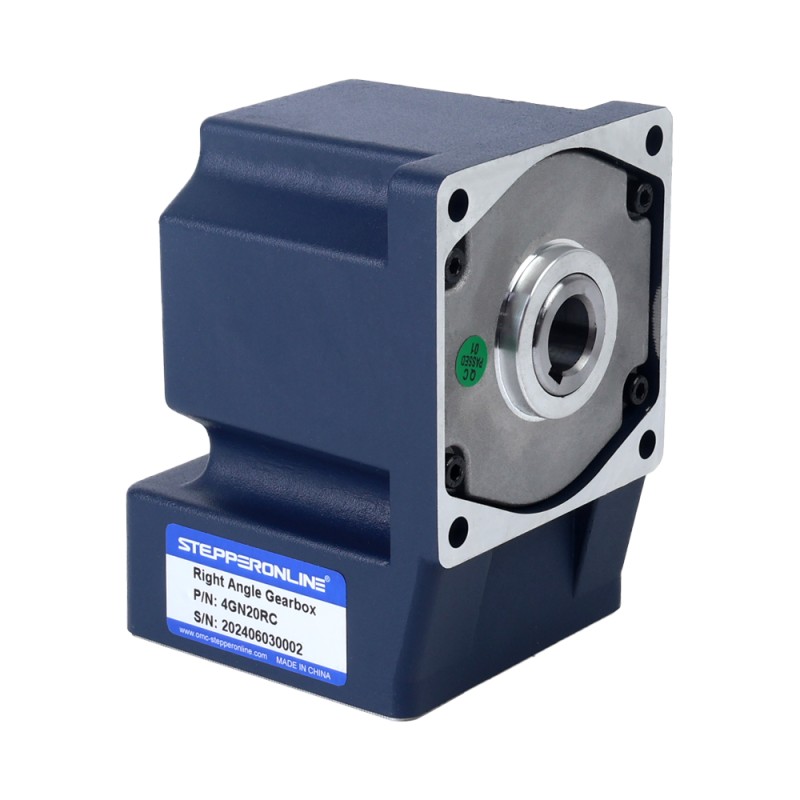

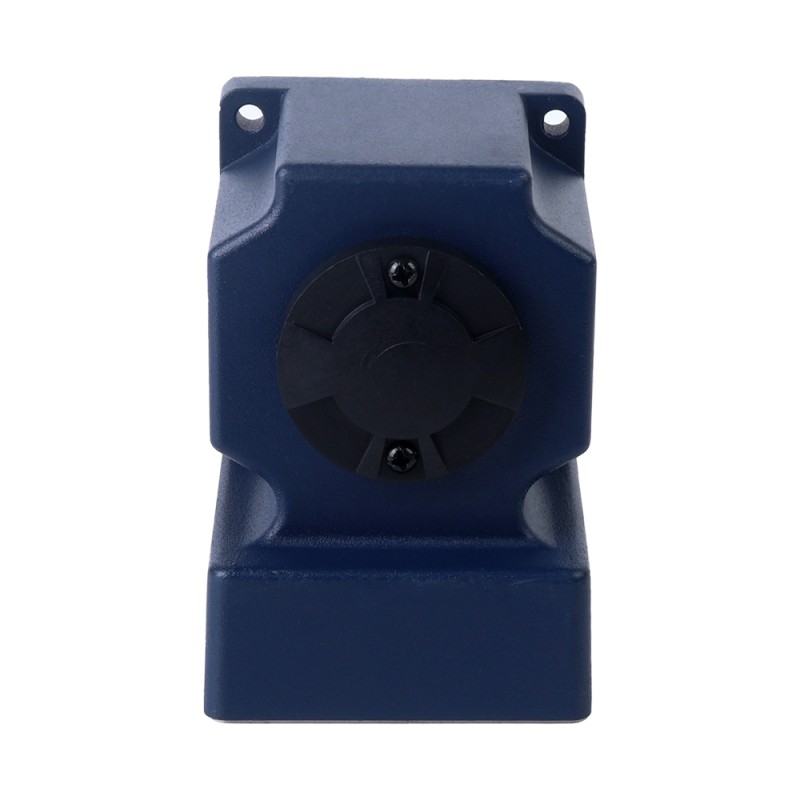

  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.24A
  • Gear Ratio: 20:1
  • Speed: 67.5rpm
  • Torque: 2.60Nm(368.19oz.in)

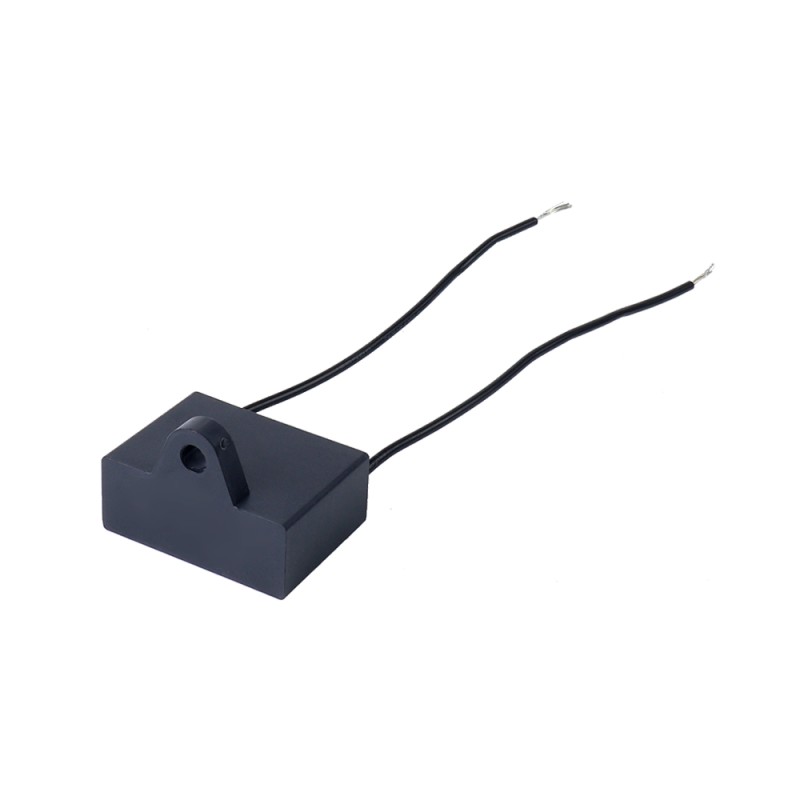

  • Capacitor: 1.8μF/450VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ15mm
  • Weight: 3.6kg

Wiring

Electrical Specification
Current(A)0.24
Frequency(Hz)50
Input Voltage(V)1PH 220VAC
Output Power(W)25
Speed(rpm)67.5
Torque(Nm)2.6
Physical Specification
Frame Size(mm)80 x 80
Gear Ratio(xx:1)20
Gearbox TypeRight Angle Gearbox
Output Shaft TypeHollow

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
25W 220/380VAC 90/103RPM 2.25Nm(318.63oz.in)/1.82Nm(257.73oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
25W 220/380VAC 90/103RPM 2.25Nm(318.63oz.in)/1.82Nm(257.73oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
This 80x80mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The simple brushless structure,..
from
C$48.08
Add to Cart
Add to Wish List Compare this Product
Quickview

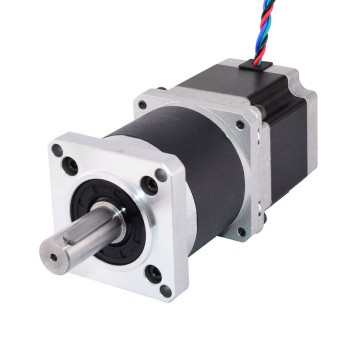

Nema 23 Stepper Motor L=55mm Gear Ratio 20:1 High Precision Planetary Gearbox
Nema 23 Stepper Motor L=55mm Gear Ratio 20:1 High Precision Planetary Gearbox
This Nema 23 stepper motor with 55mm body and 2.8A rated current, integrated with a 61.65mm Planetary gearbox of 20:1 gear ratio. It's a good solutio..
from
C$133.17
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
🔥 Bestseller
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$23.27
Add to Cart
Add to Wish List Compare this Product
Quickview

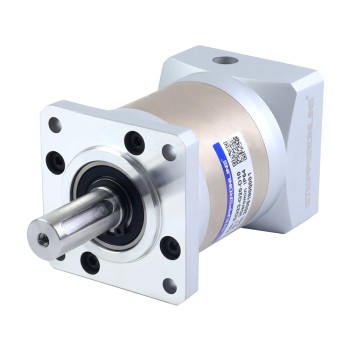

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor
