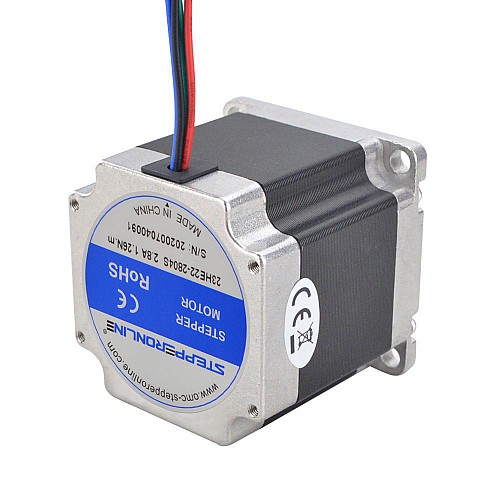

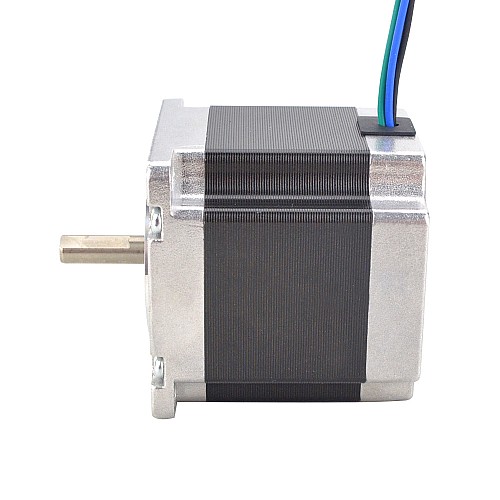

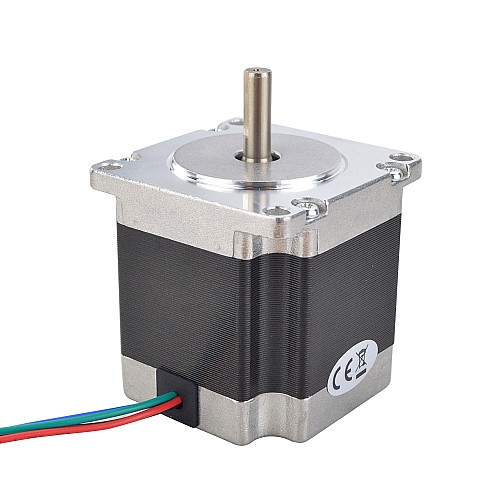

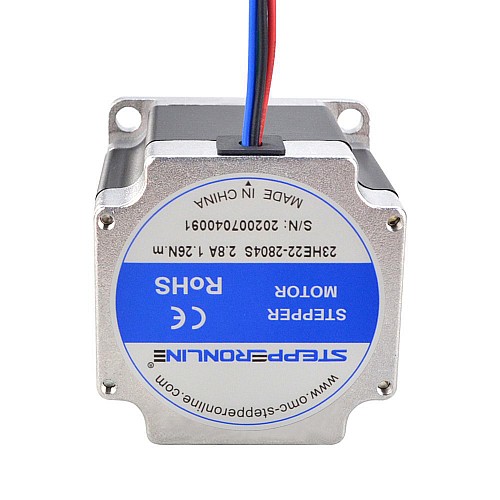

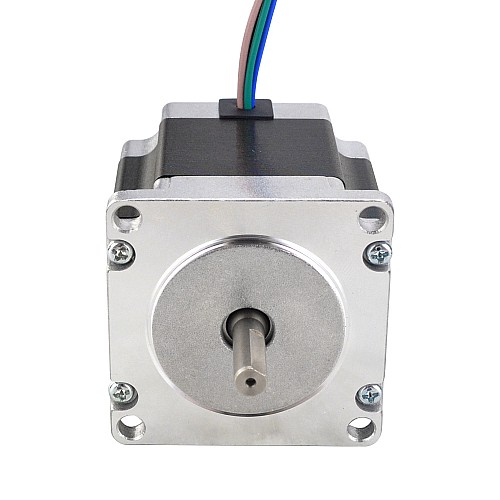

3pcs E Series Nema 23 Stepper Motor Bipolar 1.8deg 1.26Nm(178.4oz.in) 2.8A 57x57x56mm 4 Wires

0 reviews - Write a review

C$45.81

5 + C$44.12

10 + C$42.55

50 + C$41.10

100 + C$39.74

In Stock: 10000
Model: 3-23HE22-2804S
Gross Weight: 2.40kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 295

Click country for real-time stock

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

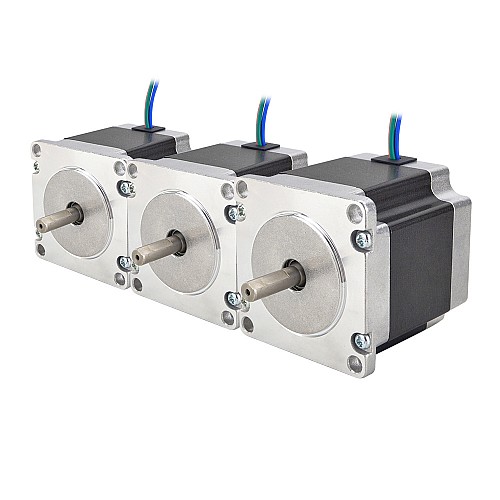

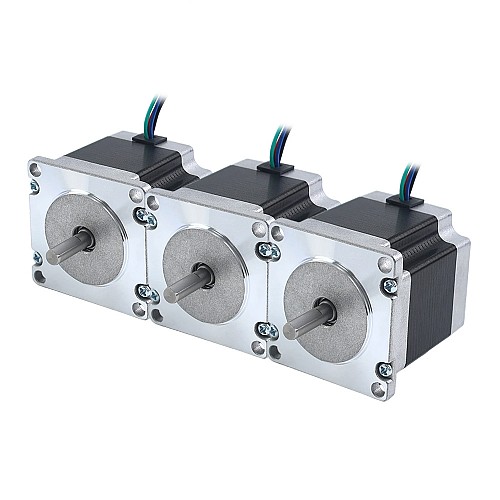

Package includes: 3 x 23HE22-2804S

Electrical Specification

Manufacturer Part Number: 23HE22-2804S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.26Nm(178.4oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms± 10%
Inductance: 2.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 0.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	126
Holding Torque(oz.in)	178.4
Inductance(mH)	2.5
Phase Resistance(ohms)	0.9
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	E
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	700
