5IK40GN-AT/5GN3K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)0.66
Question

Downloads

5IK40GN-XXT_5GNXXK_manual.pdfPDF · 2.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-S/S3FT/5GU30KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU3KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK120GU-S/S3FT/5GU50KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU5KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK40GN-AT/5GN100KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN10KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN15KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN200KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN20KKeyway1PH 110VAC90 x 900.66C$63.67In stock
5IK40GN-AT/5GN30KKeyway1PH 110VAC90 x 900.66C$63.67In stock
5IK40GN-AT/5GN3KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN50KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN5KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-CT/5GN100KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN10KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN15KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN200KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN20KKeyway1PH 220VAC90 x 900.35C$63.67In stock
5IK40GN-CT/5GN30KKeyway1PH 220VAC90 x 900.35C$63.67In stock
5IK40GN-CT/5GN3KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN50KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN5KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-S/S3T/5GN100KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$66.31In stock
5IK40GN-S/S3T/5GN10KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$61.29In stock
5IK40GN-S/S3T/5GN10K-SALEKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$62.26In stock
5IK40GN-S/S3T/5GN15KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$61.29In stock
5IK40GN-S/S3T/5GN200KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$66.31In stock
5IK40GN-S/S3T/5GN20KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$63.67In stock
5IK40GN-S/S3T/5GN30KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$63.67In stock
5IK40GN-S/S3T/5GN3KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$61.29In stock
View all in category
40W 110VAC 60Hz 516RPM 0.56Nm(79.30oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 3, a ... Read More
0 reviews • Write a review
from
C$61.29
5 + C$59.64
10 + C$58.09
50 + C$56.61
100 + C$55.20

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

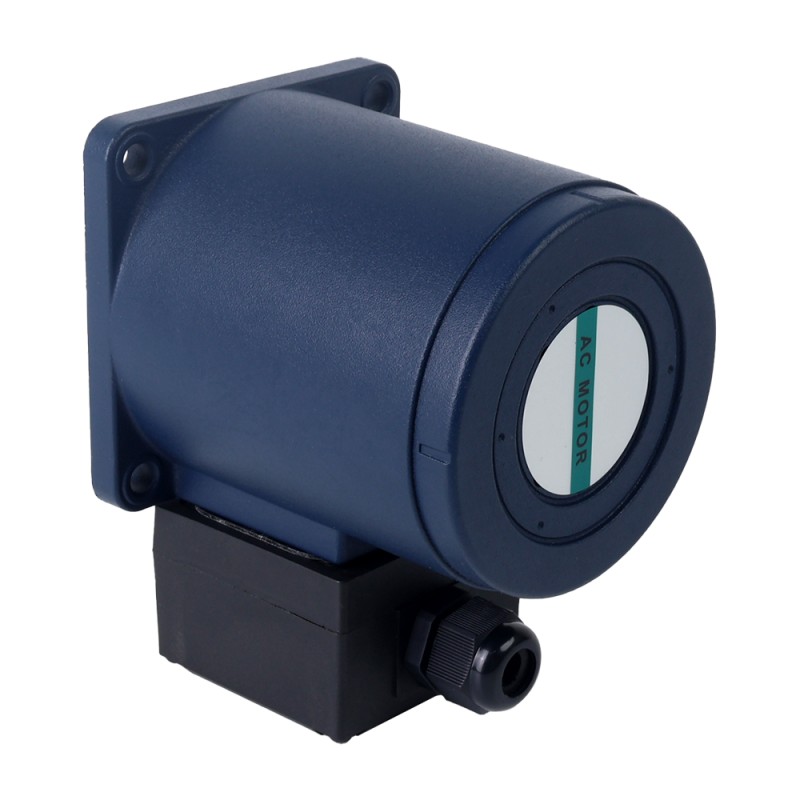

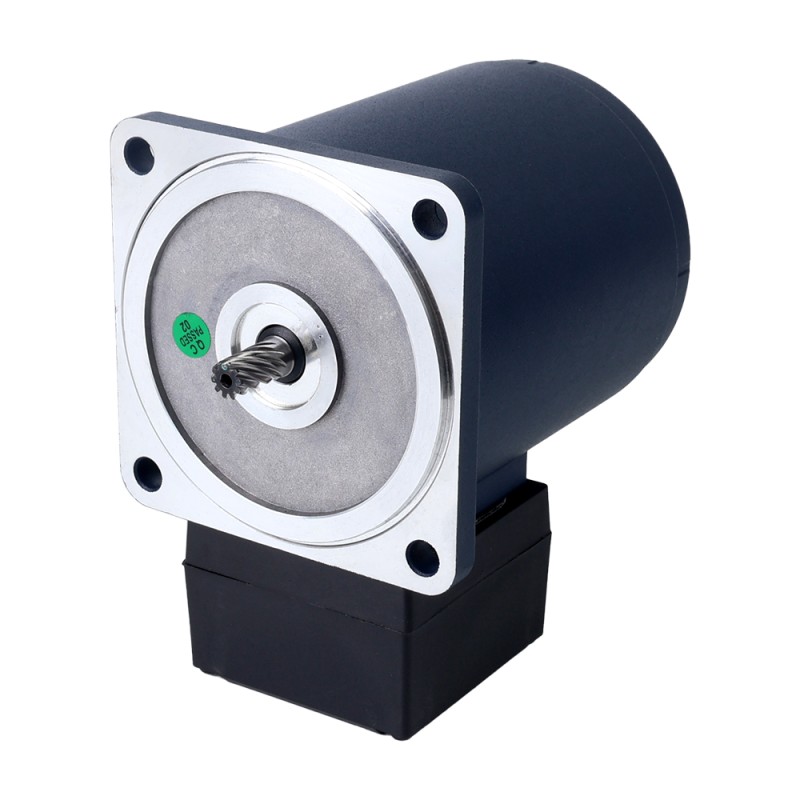

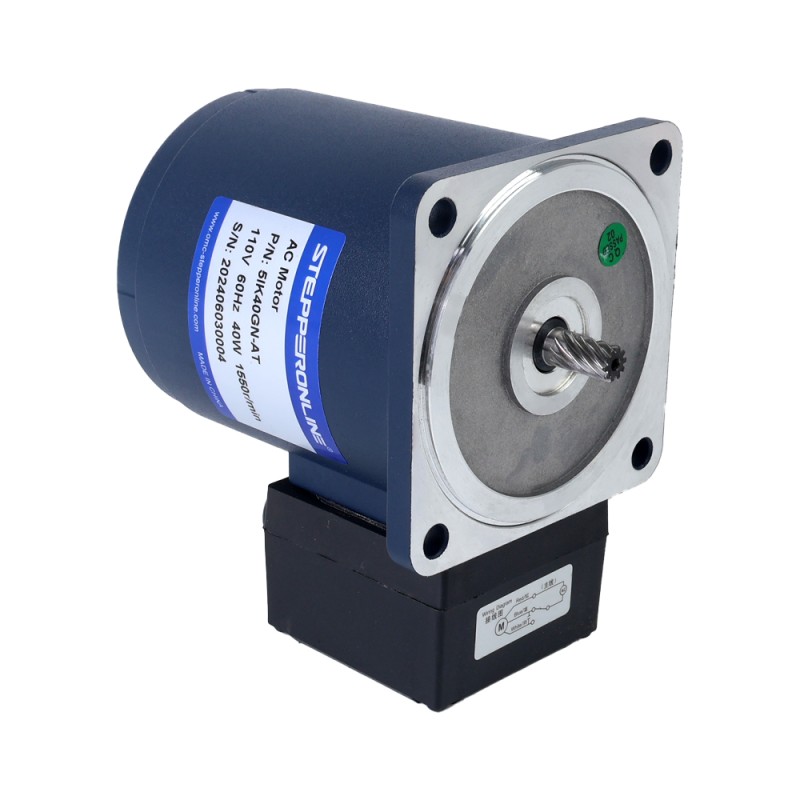

This 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 3, a torque of 0.56Nm(79.30oz.in) and a speed of 516rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40GN-AT/5GN3K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.66A
  • Gear Ratio: 3:1
  • Speed: 516rpm
  • Torque: 0.56Nm(79.30oz.in)

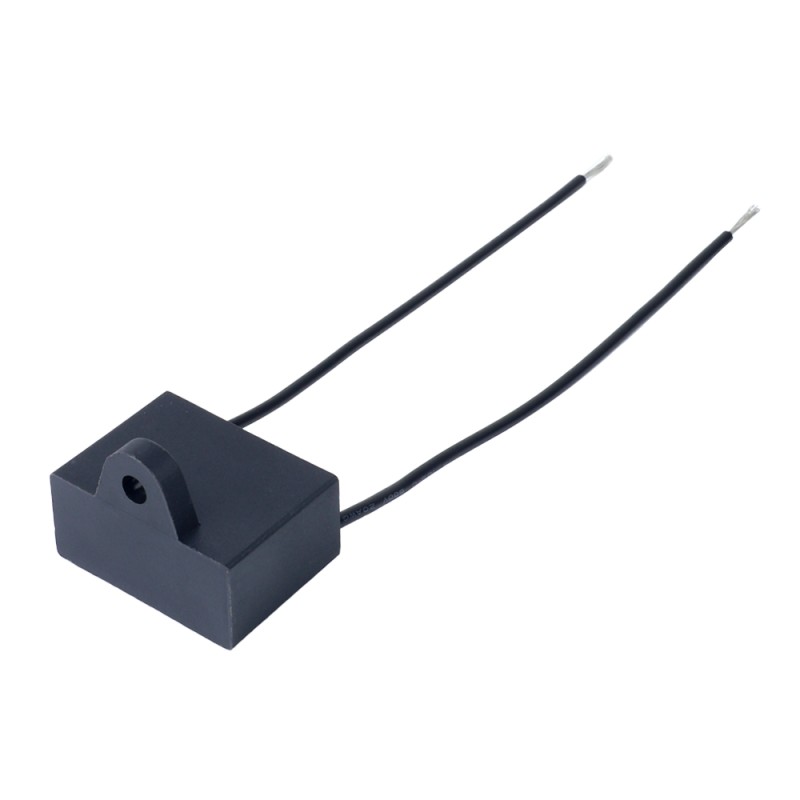

  • Capacitor: 10.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 165mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.53kg

Wiring

Electrical Specification
Current(A) 0.66
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 40
Speed(rpm) 516
Torque(Nm) 0.56
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 3
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
