500VA Single-phase Toroidal Transformer 120VAC to 220VAC 2.27A 50/60Hz

0 reviews - Write a review

C$65.58

5 + C$62.87

10 + C$60.38

50 + C$58.09

100 + C$55.96

In Stock: 10000
Model: TR500-A220-A120
Gross Weight: 4.95kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

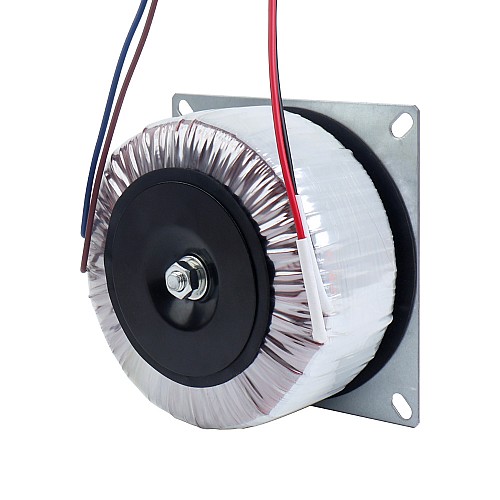

This is a 500VA, 120VAC to 220VAC single-phase stable toroidal transformer. The toroidal transformer adopts a high magnetic permeability core and is made of high-temperature resistant and flame-retardant pure copper wire, which perfectly matches the winding with the core, thereby improving the efficiency of the toroidal transformer.
Featuring high efficiency, low loss, and high reliability, with low noise, minimal radiation, low temperature rise, low scattering loss, wide selection range, and long service life.
Widely used in power circuits for motors and electronic devices, as well as in circular power transformers for audio, electrical control, medical equipment, and other applications.

Specifications

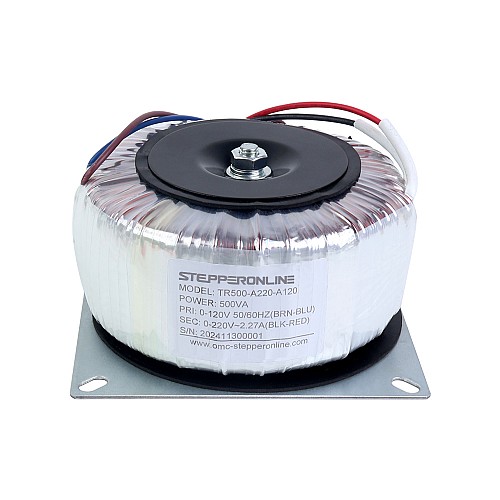

Part Number: TR500-A220-A120
Phase: Single Phase
Power: 500VA
Primary Rated Voltage: 120VAC
Loading Voltage: 0-220VAC ± 5%
Exciting Current: 150mA
Rated Current: 2.27A
Frequency: 50/60Hz
Coil Structure: Toroidal
Insulation Class: Class B(130℃)

Electrical Specification
Exciting Current(mA)	150
Frequency(Hz)	50/60
Insulation Class	B(130℃)
Loading Voltage(V)	0-220V ± 5%
Power(VA)	500
Primary Rated Voltage(V)	120
Rated Current(A)	2.27
Voltage(V)	120V to 220V
Physical Specification
Transformer Type	Toroidal
