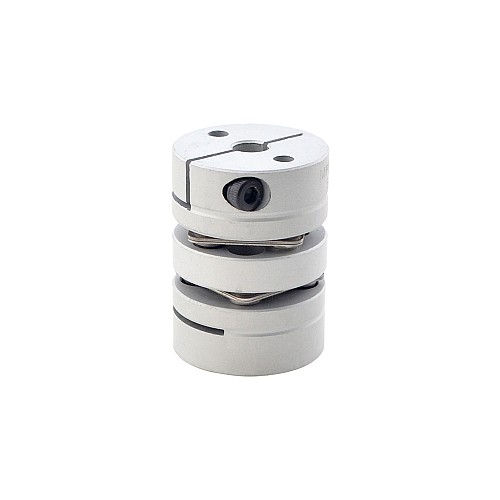

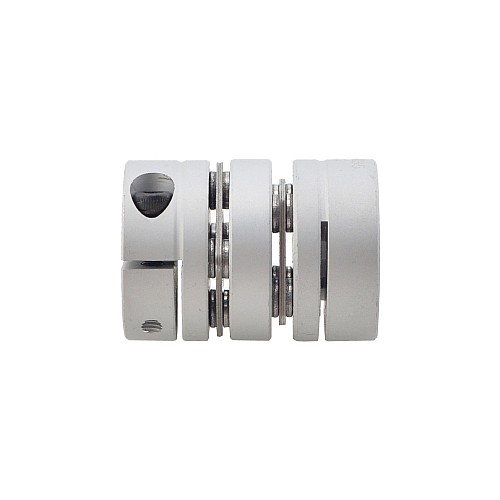

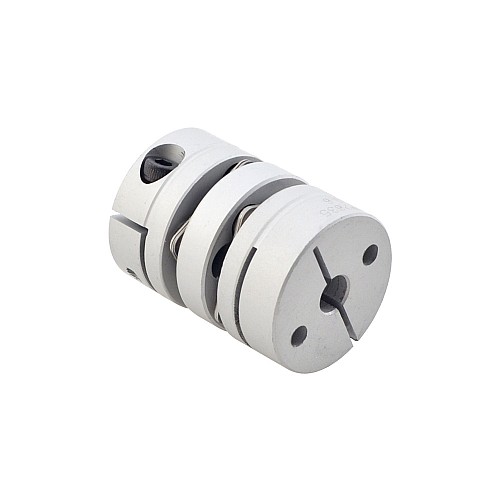

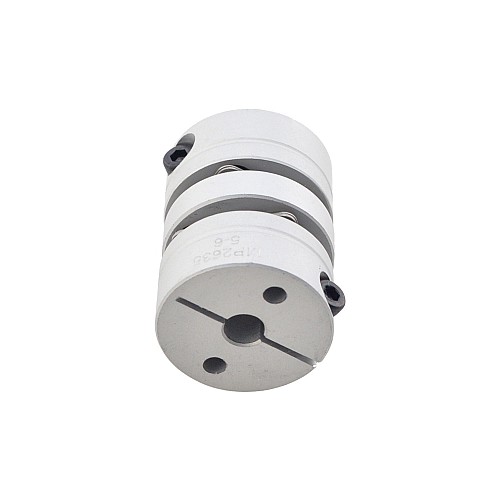

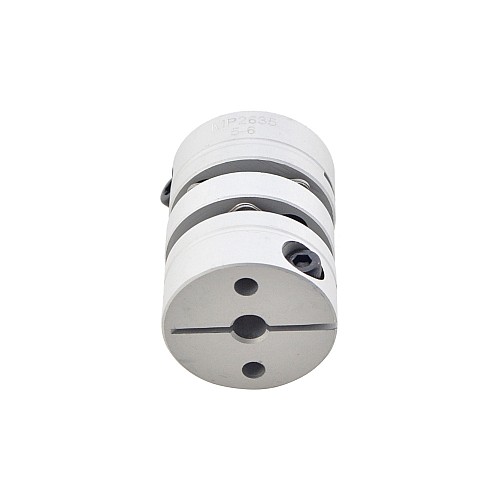

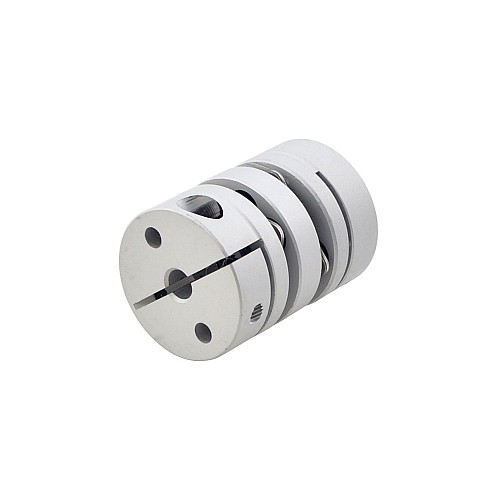

5mm - 6mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$10.92

5 + C$10.37

10 + C$9.89

50 + C$9.44

100 + C$9.04

In Stock: Pre-order
Model: MP2635-5-6
Gross Weight: 0.10kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Part Number: MP2635-5-6
Type: Double Disc
Rated Torque: 1.4Nm(198.21oz.in)
Max. Torque: 2.8Nm(396.42oz.in)
Max. Speed: 10000rpm
Moment of Inertia: 2.2*10^-6kg*m²
Static Torsional Spring Constant: 950Nm/rad
Bore Diameter(d1-d2): 5mm - 6mm
Body Outside Diameter(D): 26mm
Body Length(L): 35mm
Material Type: Aluminum
Weight: 34g

Coupling Specification
Body Length(mm)	35
Coupling Type	Disc Shaft Coupling
Diameter(mm)	26
Matching Shaft Diameter(mm)	5 - 6
Physical Specification
Inventory Method	Dedicated Inventory
