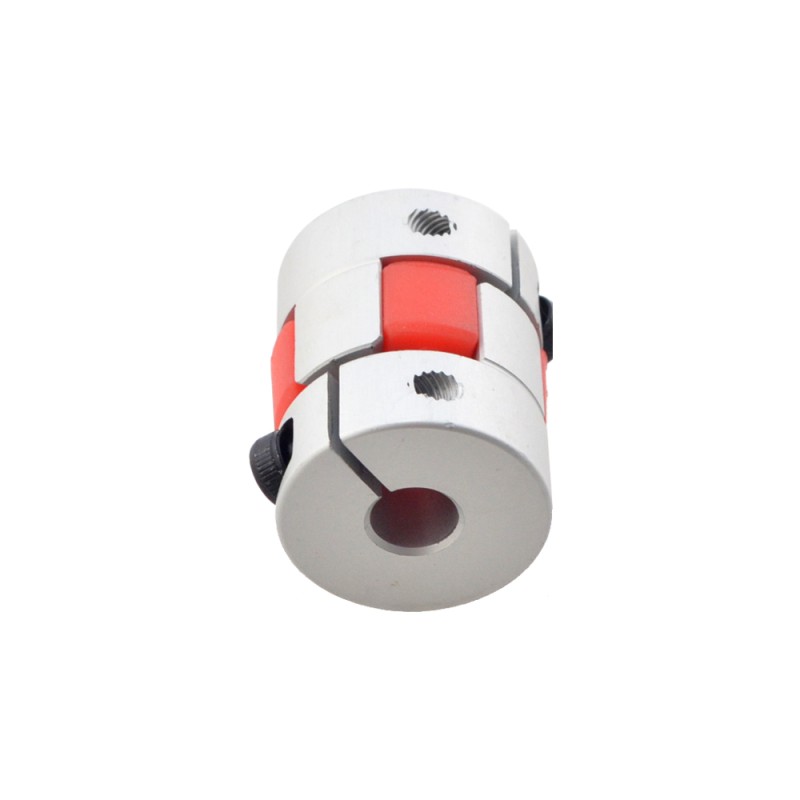

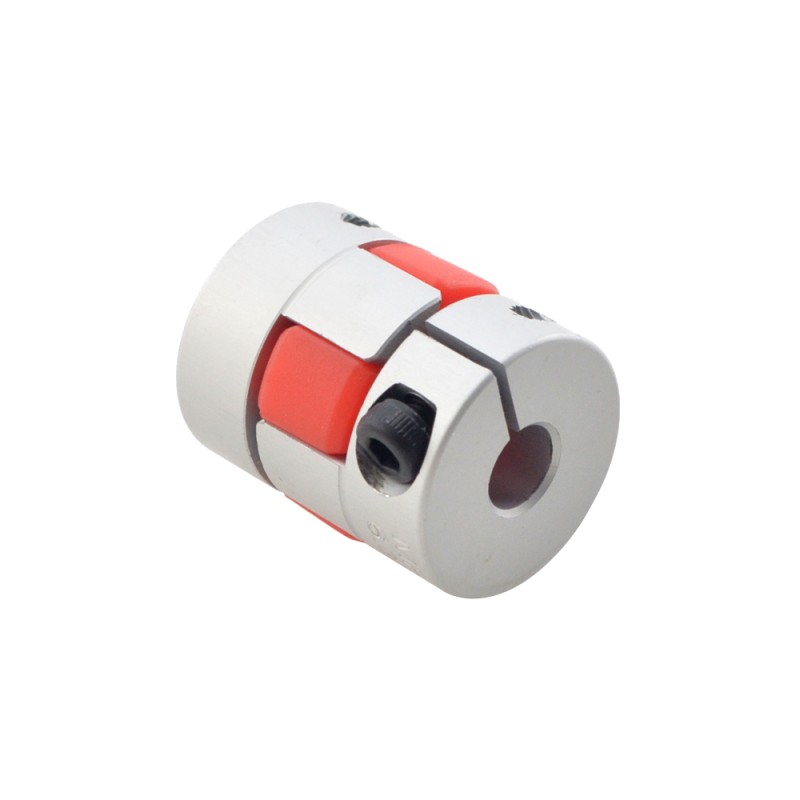

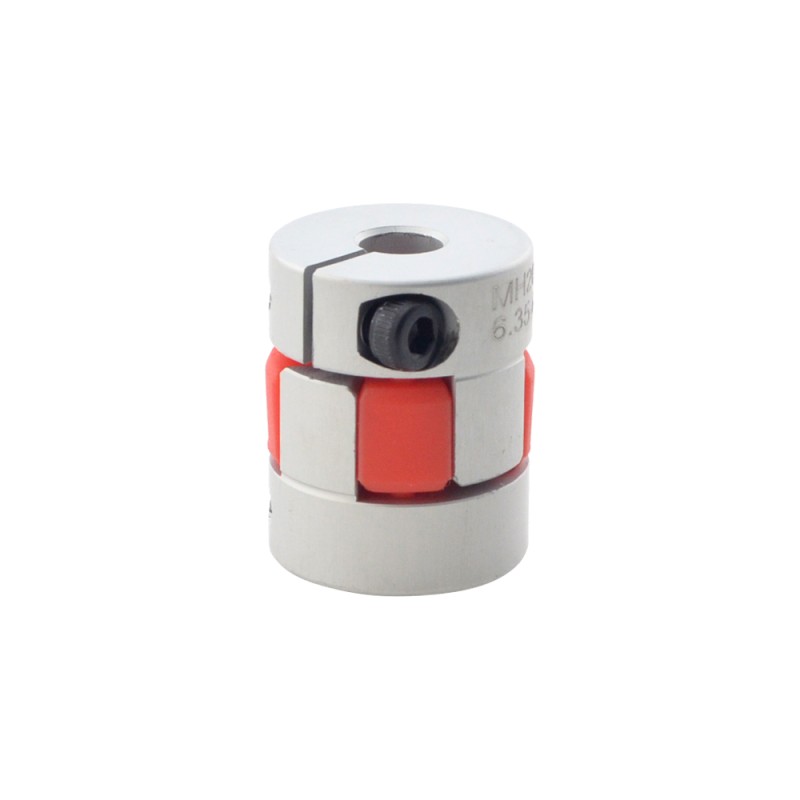

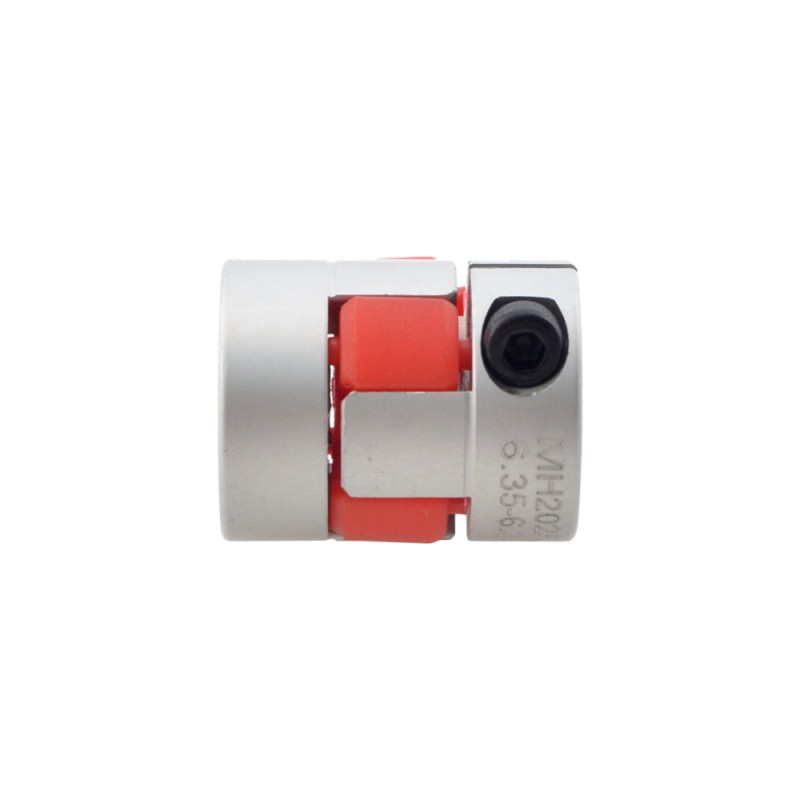

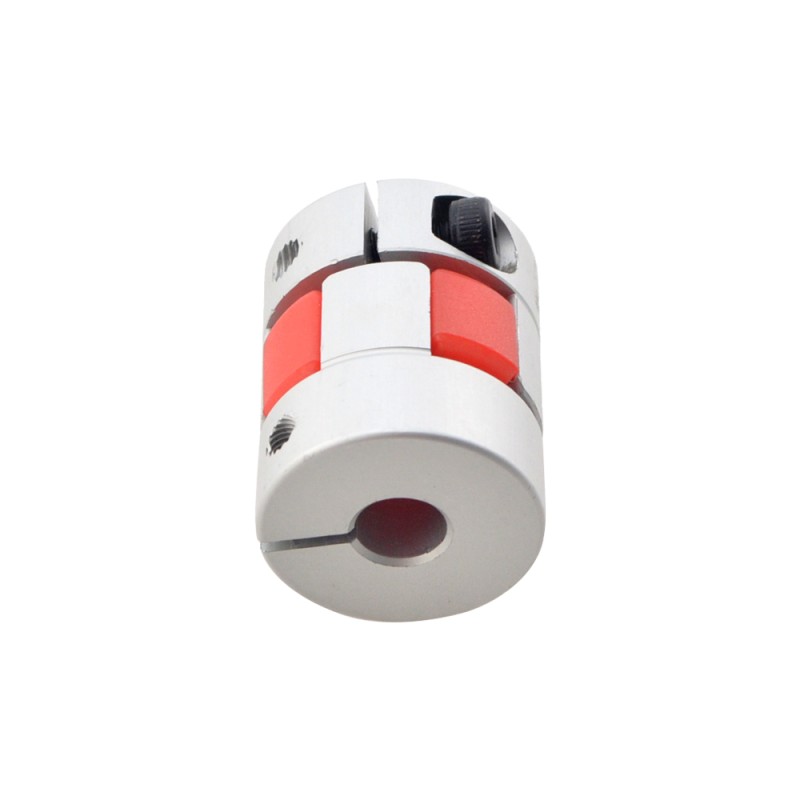

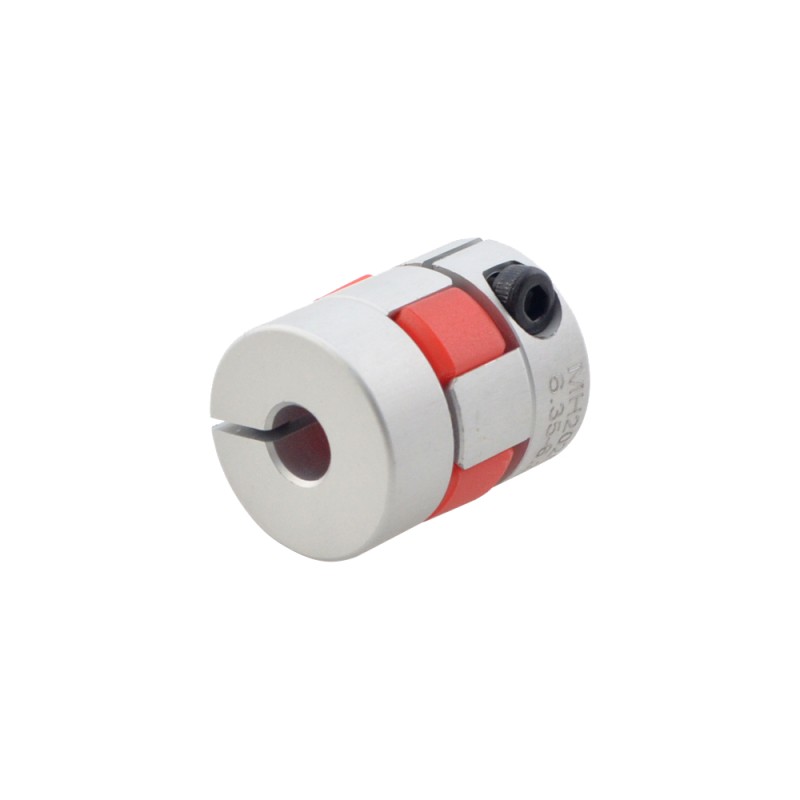

6.35mm - 6.35mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$4.82

5 + C$4.59

10 + C$4.37

50 + C$4.17

100 + C$4.00

In Stock: 10000
Model: MH2025-6.35-6.35
Gross Weight: 0.07kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Part Number: MH2025-6.35-6.35
Type: Jaw Type
Rated Torque: 2.8Nm(396.42oz.in)
Max. Torque: 5.6Nm(792.84oz.in)
Max. Speed: 17000rpm
Moment of Inertia: 6.7*10^-8kg*m²
Static Torsional Spring Constant: 55Nm/rad
Bore Diameter(d1-d2): 6.35mm - 6.35mm
Body Outside Diameter(D): 20mm
Body Length(L): 25mm
Material Type: Aluminum
Weight: 17g

Coupling Specification
Body Length(mm)	25
Coupling Type	Jaw Shaft Coupling
Diameter(mm)	20
Matching Shaft Diameter(mm)	6.35 - 6.35
Physical Specification
Inventory Method	Dedicated Inventory

Bore Diameter
With Keyway/without keyway, other special-shaped hole
Overall Length
Material(45/304 stainless steel)
Outside Diameter

Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	Clamp Screw				Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	M(mm)	Distance1(F)	Distance2(G)	Tightening Torque	Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
MH2025-5-5	5	5	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-4	55	0.02	1	0.6	17
MH2025-5-6	5	6	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-5	55	0.02	1	0.6	17
MH2025-5-6.35	5	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-5-8	5	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-6-10	6	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-7	55	0.02	1	0.6	17
MH2025-6.35-6.35	6.35	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-8	55	0.02	1	0.6	17
MH2025-6.35-8	6.35	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-9	55	0.02	1	0.6	17
MH2025-6.35-10	6.35	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-10	55	0.02	1	0.6	17
MH2025-8-8	8	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-11	55	0.02	1	0.6	17
MH2025-8-10	8	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-12	55	0.02	1	0.6	17
MH2530-6.35-8	6.35	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-4	63	0.02	1	0.6	30
MH2530-6.35-10	6.35	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-5	63	0.02	1	0.6	30
MH2530-8-8	8	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-6	63	0.02	1	0.6	30
MH2530-8-10	8	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-7	63	0.02	1	0.6	30
MH2530-8-12	8	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-8	63	0.02	1	0.6	30
MH2530-10-12	10	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-9	63	0.02	1	0.6	30
MH3035-8-14	8	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-4	72	0.02	1	0.6	50
MH3035-12-14	12	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-5	72	0.02	1	0.6	50
MH3035-14-14	14	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-6	72	0.02	1	0.6	50
