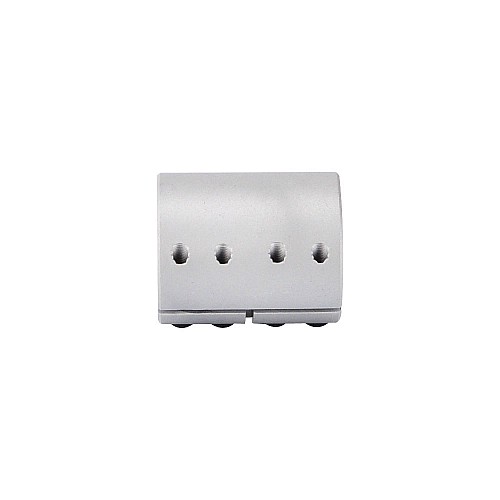

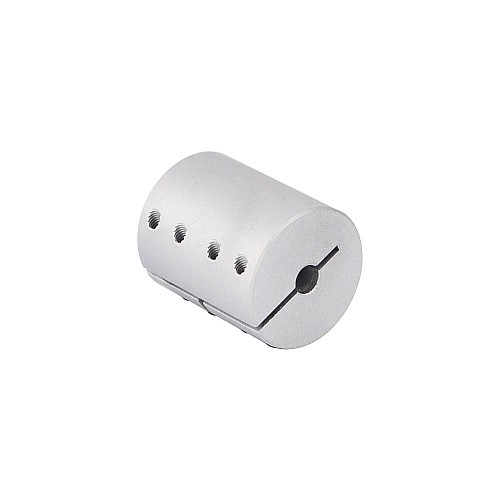

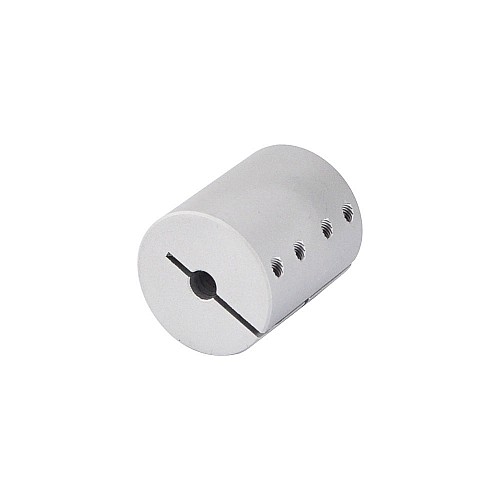

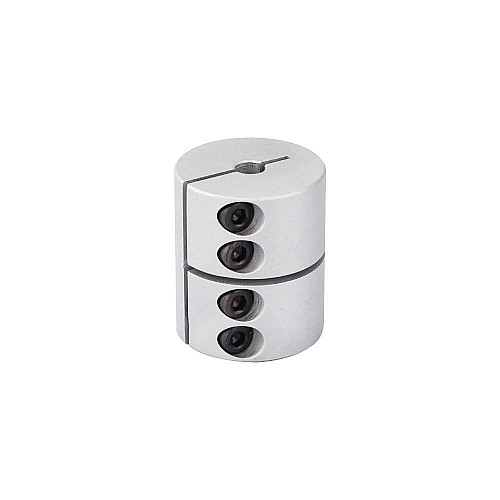

6.35mm - 8mm Rigid Coupling 25x30mm CNC Stepper Motor Shaft Coupler
C$4.60
5 + C$4.40
10 + C$4.20
50 + C$4.03
100 + C$3.88
- In Stock: 200
- Model: ST-RC06
- Gross Weight: 0.07kg
- Certificated: ISO
| Model(Rigid) | d1(mm) | d2(mm) | D(mm) | L(mm) | t(mm) | L2(mm) | M(mm) | A(mm) | Rated Torque(Nm) | Max.Torque(Nm) | Max.Speed(rpm) | Moment of Inertia(kg.cm2) | Tightening Torque(N.M) |
| GX2025-5-5 | 5 | 5 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-7 | 3 |
| GX2025-5-6.35 | 5 | 6.35 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-8 | 3 |
| GX2025-5-8 | 5 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-9 | 3 |
| GX2025-6.35-8 | 6.35 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-10 | 3 |
| GX2025-8-10 | 8 | 10 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-11 | 3 |
| GX2025-8-8 | 8 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-12 | 3 |
