5IK60GN-CFT/5GN50K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)90 x 90
Current(A)0.5
Question

Downloads

5IK60GN-XXFT_5GNXXK_manual.pdfPDF · 2.23MB5IK60GN-CFT_5GN50K.STEPSTEP · 3.63MBLog in to download
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK60GN-AFT/5GN3KKeyway1PH 110VAC90 x 901.01C$64.19In stock
5IK60GN-AFT/5GN50KKeyway1PH 110VAC90 x 901.01C$69.21In stock
5IK60GN-AFT/5GN5KKeyway1PH 110VAC90 x 901.01C$64.19In stock
5IK60GN-CFT/5GN100KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60GN-CFT/5GN10KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60GN-CFT/5GN15KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60GN-CFT/5GN200KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60GN-CFT/5GN20KKeyway1PH 220VAC90 x 900.5C$66.57In stock
5IK60GN-CFT/5GN30KKeyway1PH 220VAC90 x 900.5C$66.57In stock
5IK60GN-CFT/5GN3KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60GN-CFT/5GN50KKeyway1PH 220VAC90 x 900.5C$69.21In stock
5IK60GN-CFT/5GN5KKeyway1PH 220VAC90 x 900.5C$64.19In stock
5IK60GN-S/S3FT/5GN100KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$69.21In stock
5IK60GN-S/S3FT/5GN10KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$64.19In stock
5IK60GN-S/S3FT/5GN15KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$64.19In stock
5IK60GN-S/S3FT/5GN200KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$69.21In stock
5IK60GN-S/S3FT/5GN20KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$66.57In stock
5IK60GN-S/S3FT/5GN30KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$66.57In stock
5IK60GN-S/S3FT/5GN3KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$64.19In stock
5IK60GN-S/S3FT/5GN50KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$69.21In stock
5IK60GN-S/S3FT/5GN5KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$64.19In stock
5IK90GU-AFT/5GU100KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90GU-AFT/5GU100KB-SALEKeyway1PH 110VAC90 x 901.4C$84.54In stock
5IK90GU-AFT/5GU10KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90GU-AFT/5GU15KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90GU-AFT/5GU200KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90GU-AFT/5GU20KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90GU-AFT/5GU30KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90GU-AFT/5GU3KBKeyway1PH 110VAC90 x 901.4C$72.38In stock
5IK90GU-AFT/5GU50KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
View all in category
60W 220VAC 50Hz 27RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90x90mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 50, a... Read More
0 reviews • Write a review
from
C$69.21
5 + C$67.35
10 + C$65.60
50 + C$63.92
100 + C$62.34

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

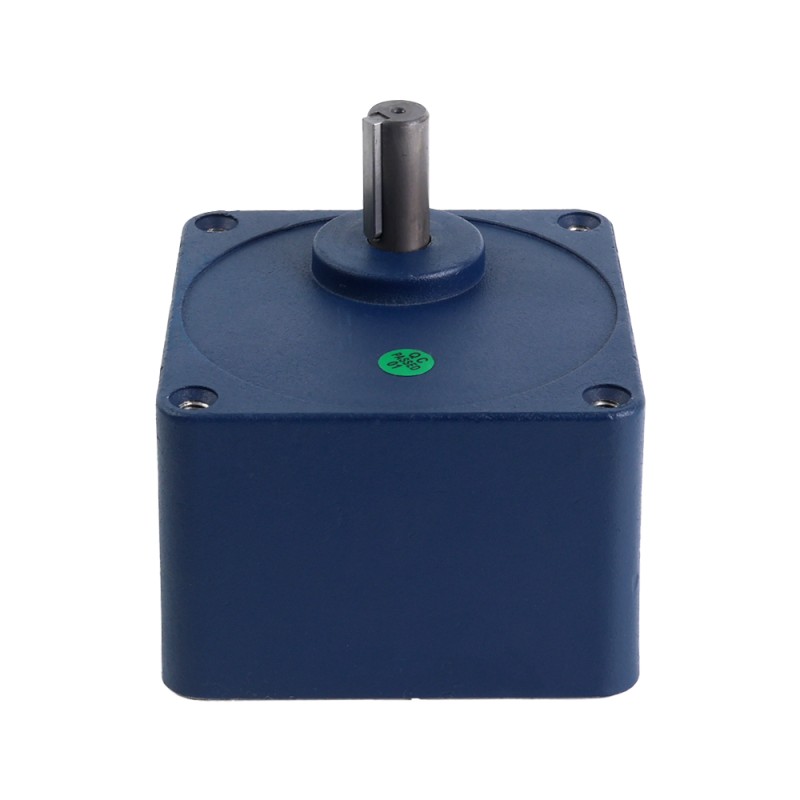

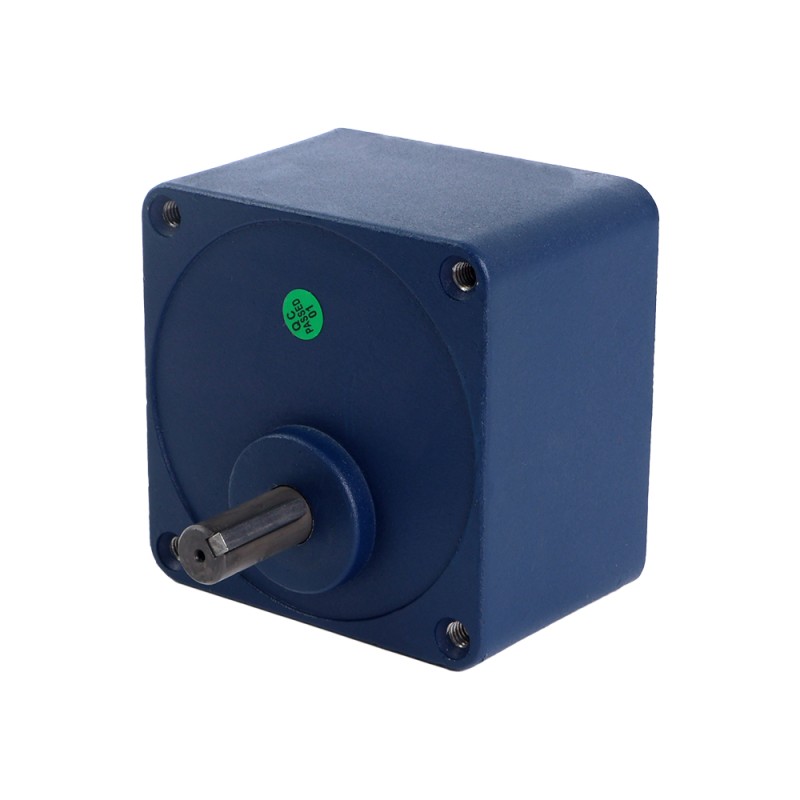

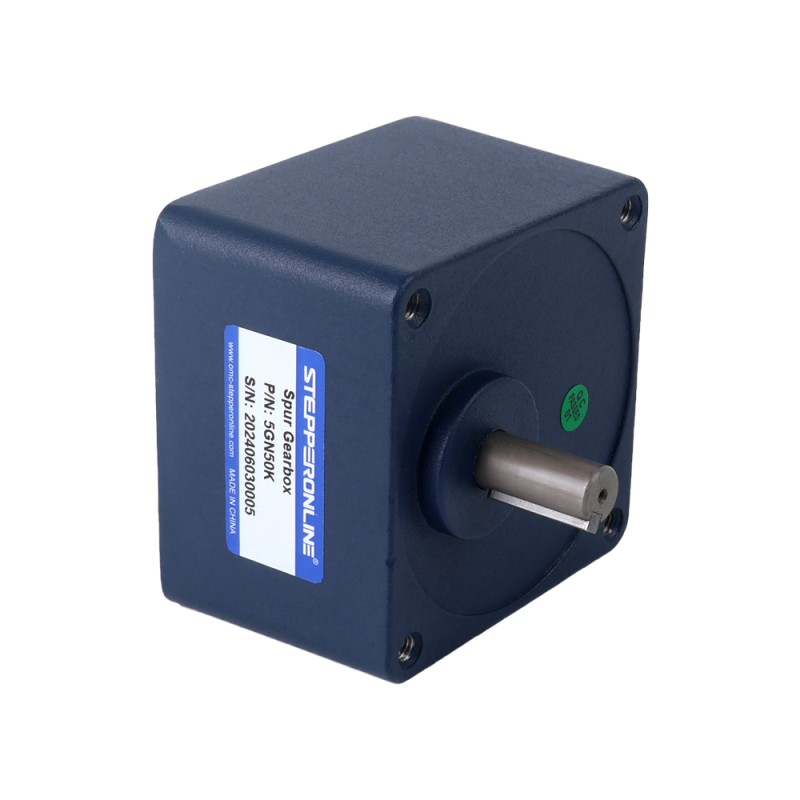

This 90x90mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 50, a torque of 10.00Nm(1416.12oz.in) and a speed of 27rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK60GN-CFT/5GN50K
  • Gearbox Type: Spur Gearbox
  • Output Power: 60W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.50A
  • Gear Ratio: 50:1
  • Speed: 27rpm
  • Torque: 10.00Nm(1416.12oz.in)
  • Capacitor: 4.0μF/450VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 185mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.75kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 60
Speed(rpm) 27
Torque(Nm) 10
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 50
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
