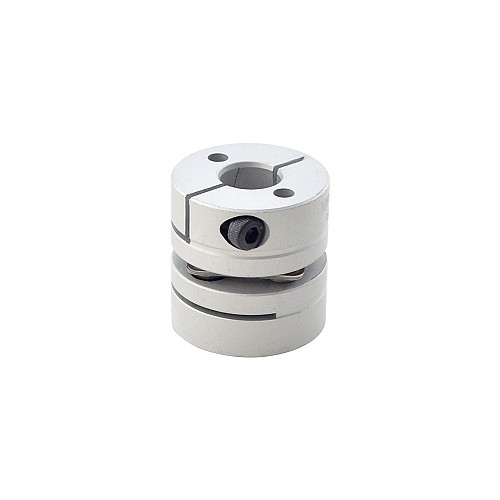

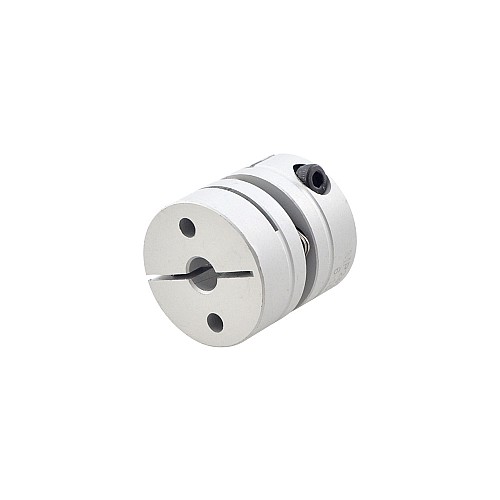

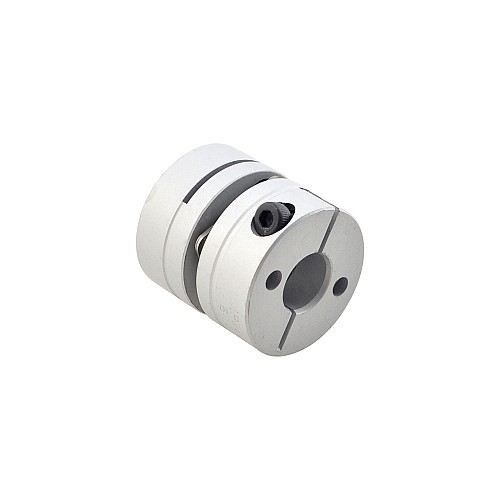

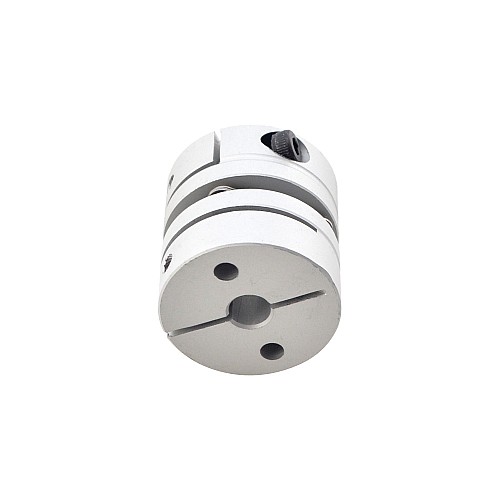

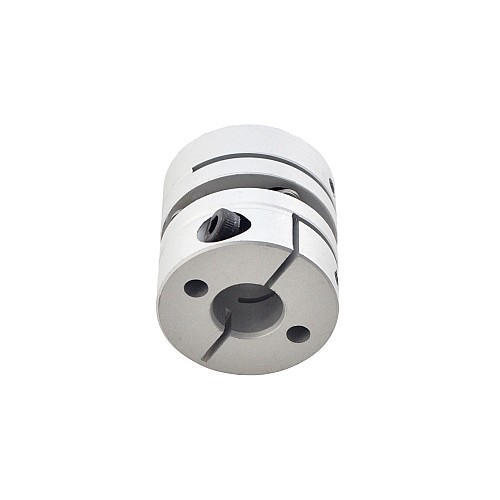

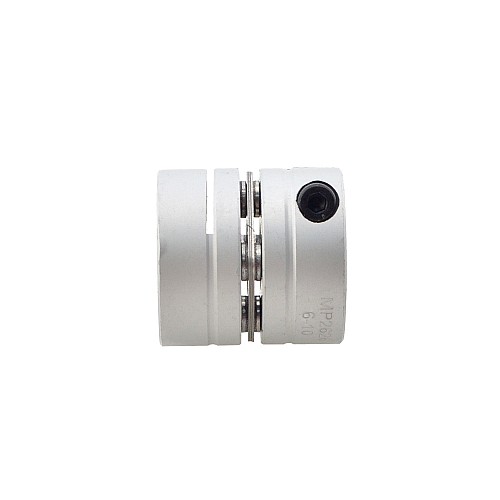

6mm - 10mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$7.21

5 + C$6.86

10 + C$6.54

50 + C$6.24

100 + C$5.97

In Stock: Pre-order
Model: MP2626-6-10
Gross Weight: 0.09kg
Certificated: ISO

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Specification

Part Number: MP2626-6-10
Type: Single Disc
Rated Torque: 1.4Nm(198.21oz.in)
Max. Torque: 2.8Nm(396.42oz.in)
Max. Speed: 10000rpm
Moment of Inertia: 2.2*10^-6kg*m²
Static Torsional Spring Constant: 950Nm/rad
Bore Diameter(d1-d2): 6mm - 10mm
Body Outside Diameter(D): 26mm
Body Length(L): 26mm
Material Type: Aluminum
Weight: 34g

Coupling Specification
Body Length(mm)	26
Coupling Type	Disc Shaft Coupling
Diameter(mm)	26
Matching Shaft Diameter(mm)	6 - 10
Physical Specification
Inventory Method	Dedicated Inventory
