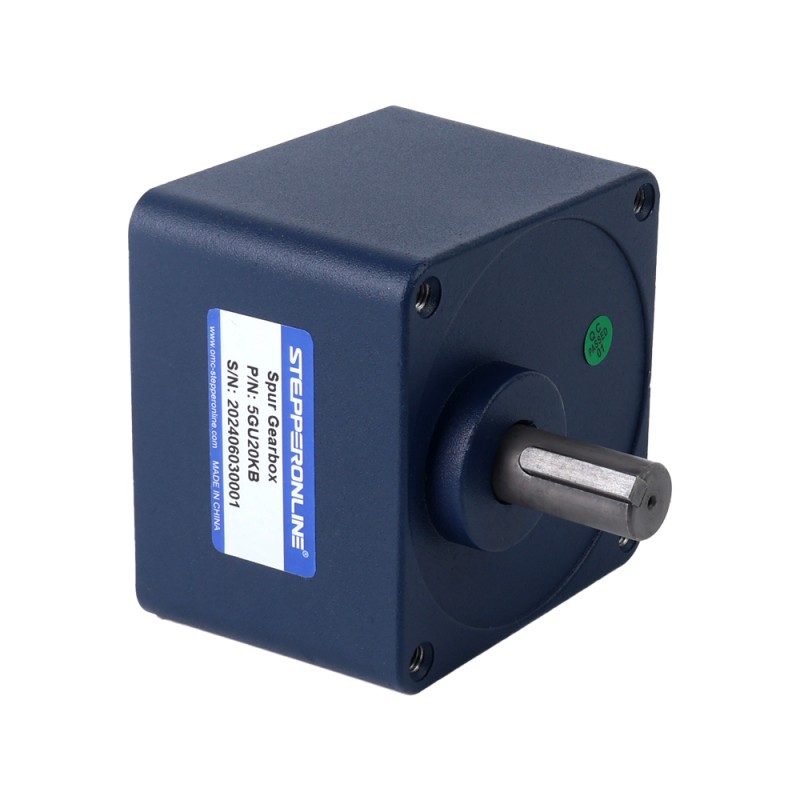

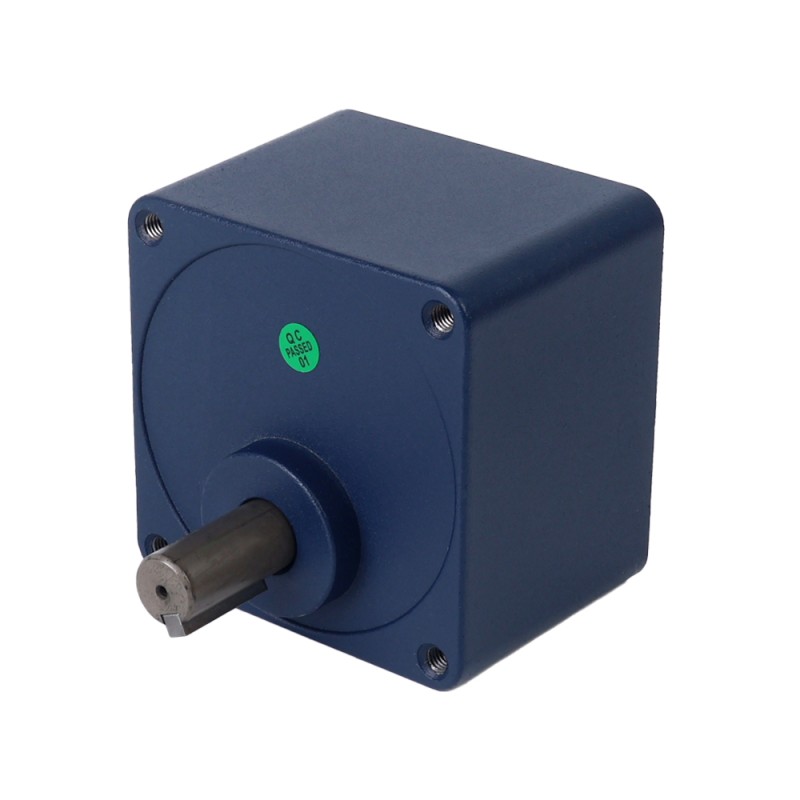

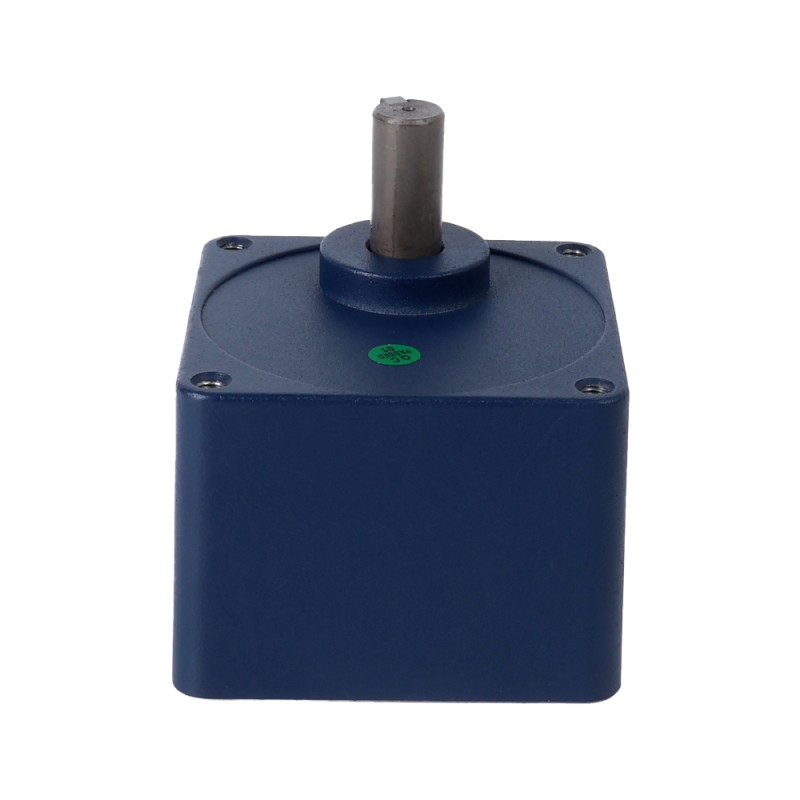

90W 220/380VAC 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor

90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 67.5/77.5RPM 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU20KB | StepperOnline CA
5IK90GU-S/S3FT/5GU20KB
Output Shaft TypeKeyway
Input Voltage(V)3PH 220VAC/380VAC
Frame Size(mm)90 x 90
Current(A)0.53,0.61,0.37,0.35
Question

Downloads

5IK90GU-XXFT_5GUXXKB_manual.pdfPDF · 2.28MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK60GN-S/S3FT/5GN50KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$69.21In stock
5IK60GN-S/S3FT/5GN5KKeyway3PH 220VAC/380VAC90 x 900.38,0.35,0.22,0.20C$64.19In stock
5IK90GU-AFT/5GU100KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90GU-AFT/5GU100KB-SALEKeyway1PH 110VAC90 x 901.4C$84.54In stock
5IK90GU-AFT/5GU10KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90GU-AFT/5GU15KBKeyway1PH 110VAC90 x 901.4C$76.34In stock
5IK90GU-AFT/5GU200KBKeyway1PH 110VAC90 x 901.4C$83.22In stock
5IK90GU-AFT/5GU20KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90GU-AFT/5GU30KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90GU-AFT/5GU3KBKeyway1PH 110VAC90 x 901.4C$72.38In stock
5IK90GU-AFT/5GU50KBKeyway1PH 110VAC90 x 901.4C$79.52In stock
5IK90GU-AFT/5GU5KBKeyway1PH 110VAC90 x 901.4C$72.38In stock
5IK90GU-CFT/5GU100KBKeyway1PH 220VAC90 x 900.64C$83.22In stock
5IK90GU-CFT/5GU10KBKeyway1PH 220VAC90 x 900.64C$76.34In stock
5IK90GU-CFT/5GU15KBKeyway1PH 220VAC90 x 900.64C$76.34In stock
5IK90GU-CFT/5GU200KBKeyway1PH 220VAC90 x 900.64C$83.22In stock
5IK90GU-CFT/5GU20KBKeyway1PH 220VAC90 x 900.64C$79.52In stock
5IK90GU-CFT/5GU30KBKeyway1PH 220VAC90 x 900.64C$79.52In stock
5IK90GU-CFT/5GU3KBKeyway1PH 220VAC90 x 900.64C$72.38In stock
5IK90GU-CFT/5GU50KBKeyway1PH 220VAC90 x 900.64C$79.52In stock
5IK90GU-CFT/5GU5KBKeyway1PH 220VAC90 x 900.64C$72.38In stock
5IK90GU-S/S3FT/5GU100KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$83.22In stock
5IK90GU-S/S3FT/5GU10KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$76.34In stock
5IK90GU-S/S3FT/5GU15KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$76.34In stock
5IK90GU-S/S3FT/5GU200KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$83.22In stock
5IK90GU-S/S3FT/5GU20KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$79.52In stock
5IK90GU-S/S3FT/5GU30KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$79.52In stock
5IK90GU-S/S3FT/5GU3KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$72.38In stock
5IK90GU-S/S3FT/5GU50KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$79.52In stock
5IK90GU-S/S3FT/5GU5KBKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$72.38In stock
View all in category
90W 220/380VAC 8.80Nm(1246.18oz.in)/7.30Nm(1033.77oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
This 90W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and h... Read More
0 reviews • Write a review
from
C$79.52
5 + C$77.39
10 + C$75.36
50 + C$73.44
100 + C$71.62

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
This 90W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 20. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK90GU-S/S3FT/5GU20KB
  • Gearbox Type: Spur Gearbox
  • Output Power: 90W
  • Voltage: 3PH 220VAC/3PH 380VAC
  • Frequency: 50/60Hz
  • Current(220VAC): 0.53A(50Hz)/0.61A(60Hz)
  • Current(380VAC): 0.37A(50Hz)/0.35A(60Hz)
  • Gear Ratio: 20:1
  • Speed(50Hz): 67.5rpm
  • Speed(60Hz): 77.5rpm
  • Torque(50Hz): 8.80Nm(1246.18oz.in)
  • Torque(60Hz): 7.30Nm(1033.77oz.in)

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 205mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 4.35kg

Wiring

Electrical Specification
Current(A) 0.53,0.61,0.37,0.35
Frequency(Hz) 50,60
Input Voltage(V) 3PH 220VAC/380VAC
Output Power(W) 90
Speed(rpm) 67.5,77.5
Torque(Nm) 8.8,7.3
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 20
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
