AB Series 90mm 5:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

0 reviews - Write a review

€125.26

5 + €117.68

10 + €110.95

50 + €104.95

100 + €99.57

In Stock: 10000
Model: AB90-G5-D19
Gross Weight: 3.95kg
Certificated: ISO, CE, REACH

Sold: 27

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

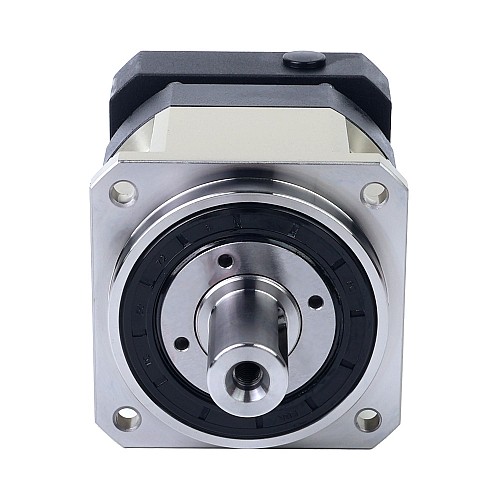

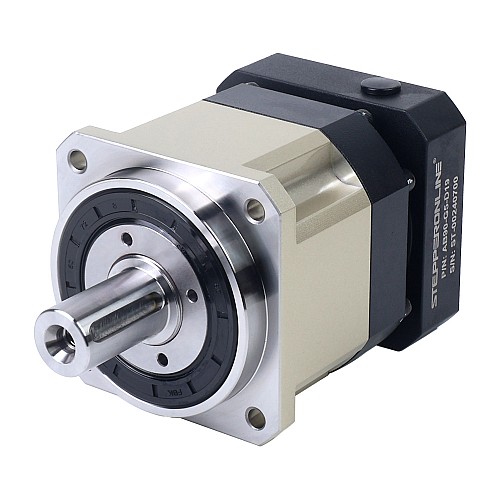

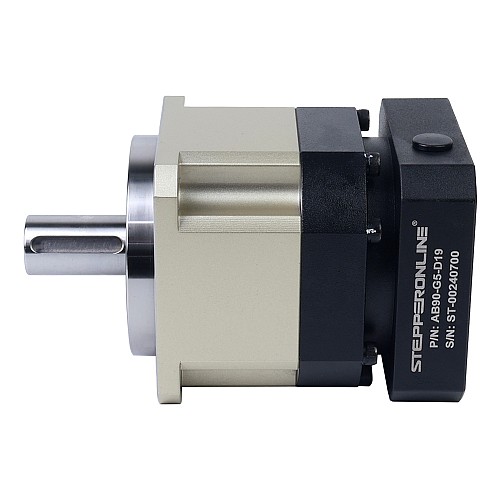

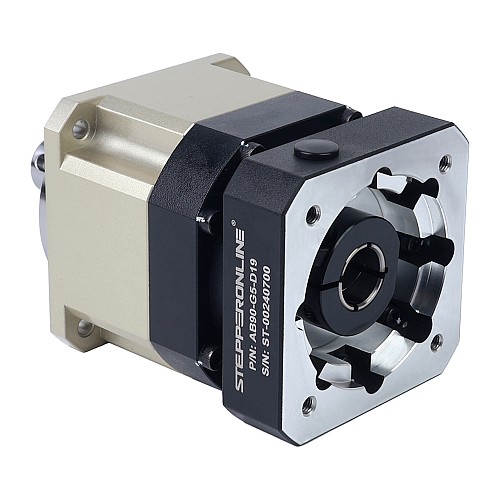

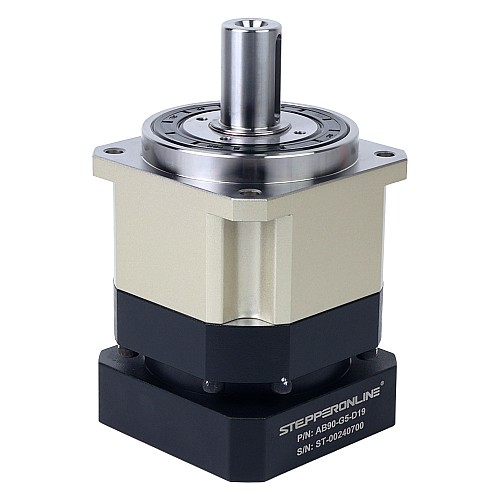

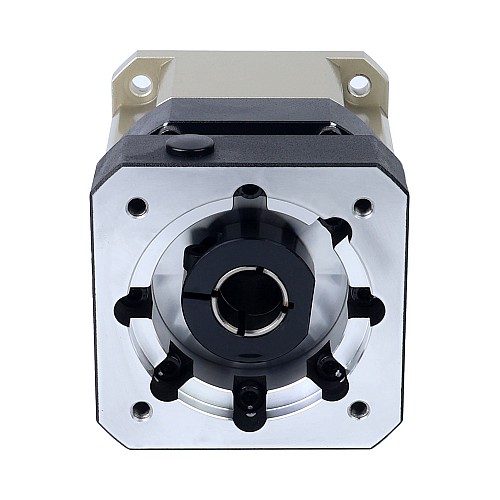

The size of this gearbox is 90 x 90mm and the input shaft diameter is 19mm. This AB series helical planetary gearbox offers a gear ratio of 5:1 with a backlash of 5arcmin. It is designed for servo motors with a size of 80mm and a shaft diameter of 19mm.
This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc.

Gearbox Specifications

Part Number: AB90-G5-D19
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 5:1
Efficiency: 97%
Backlash at No-load: 5arc-min
Rated Input Speed: 3000rpm
Maximum Input Speed: 6000rpm
Max.Permissible Torque: 130Nm(1150.6lb-in)
Moment Permissible Torque: 390Nm(3451.79lb-in)
Shaft Maximum Axial Load: 1625N
Shaft Maximum Radial Load: 3250N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 107mm
Input Shaft Diameter: Φ19mm
Input Shaft Length: Max. 48mm
Output Shaft Diameter: Φ22mm
Output Shaft Length: 48mm
Output Shaft Type: Keyway

Physical Specification
Backlash at No-load	5arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	5
Gearbox Length(mm)	107
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	19
Input Shaft Length(mm)	48
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 80 Servo Motor
Output Shaft Diameter(mm)	22
Output Shaft Length(mm)	48
Output Shaft Type	Keyway
Product Series	AB
