110V AC Gear Motor 100Kg.cm/5.5RPM w/ 590:1 Rectangular Spur Gearbox

0 reviews - Write a review

C$44.98

5 + C$43.44

10 + C$42.00

50 + C$40.66

100 + C$39.40

In Stock: Pre-order
Model: FGE-6130-110V-G590
Gross Weight: 1.84kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

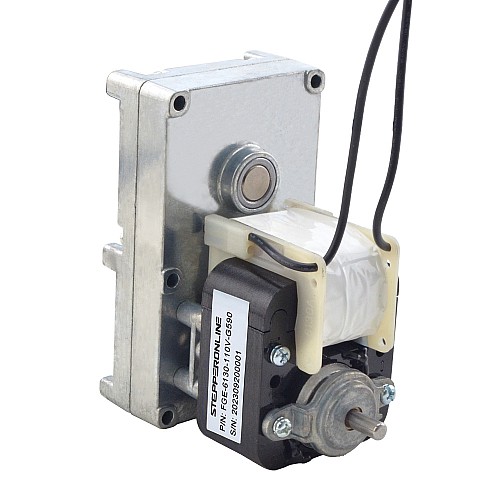

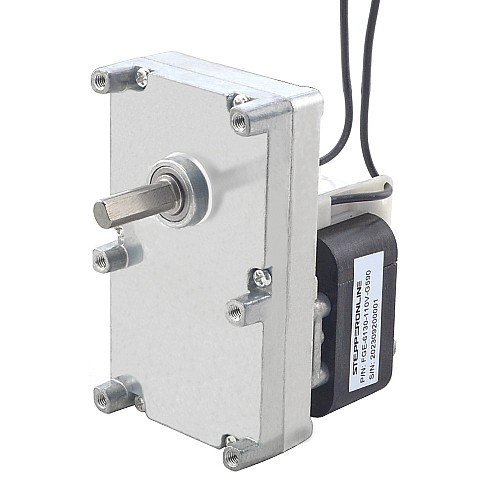

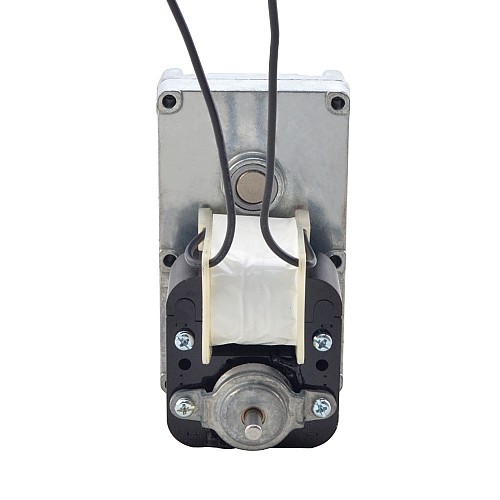

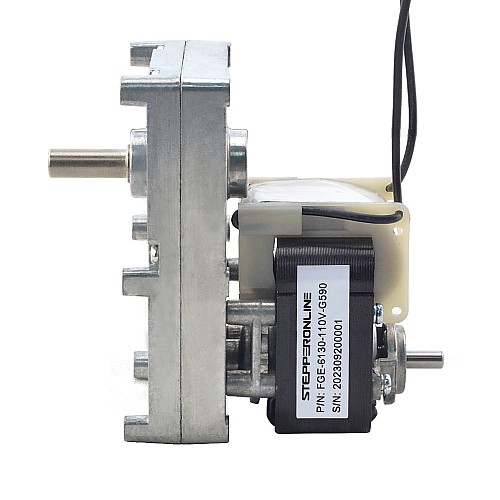

This is a standard 110 volt brushed AC gear motor, generating 100kg.cm of torque at 5.5rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 590 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGE-6130-110V-G590
Rated Voltage: 110V
Rated Torque: 100kg.cm(1383oz.in)
Rated Current: <=570mA
Rated Speed: 5.5rpm
No-load Current: <=520mA
No-load Speed: 5.7rpm
Rotation Direction: CW
Motor Type: Brushed AC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 590 : 1

Physical Specification

Motor length: 30mm
Gearbox Size: 119 x 70 x 33mm
Front Shaft Diameter: Φ9.5mm
Front Shaft Length: 27mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm

Electrical Specification
Rated Current(A)	0.57
Rated Speed(rpm)	5.5
Rated Torque(kg.cm)	100
Rated Voltage(V)	110
Physical Specification
Gear Ratio(xx:1)	590
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	9.5
Shaft Length(mm)	27
