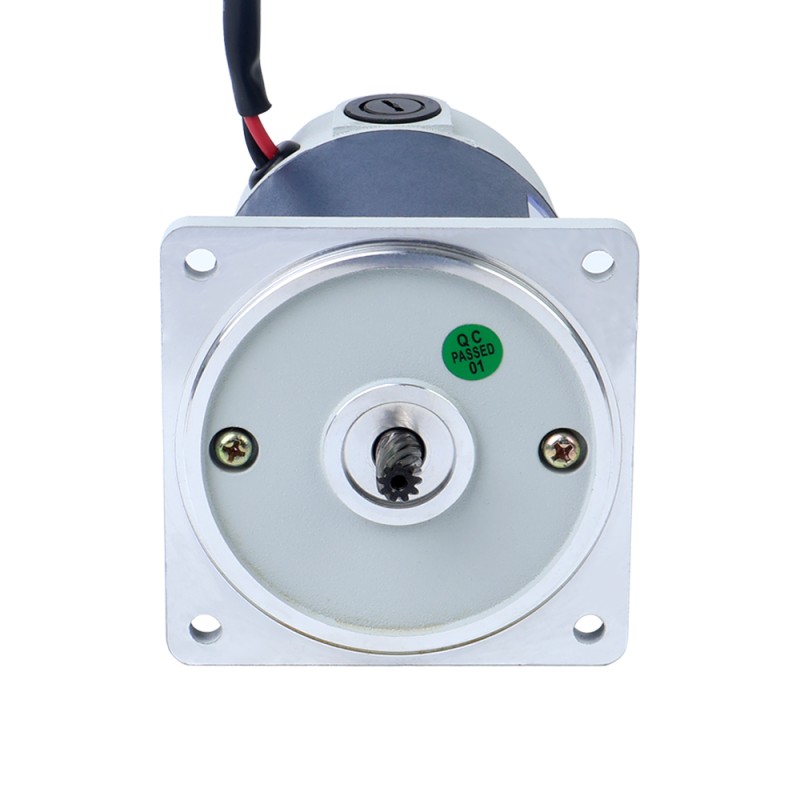

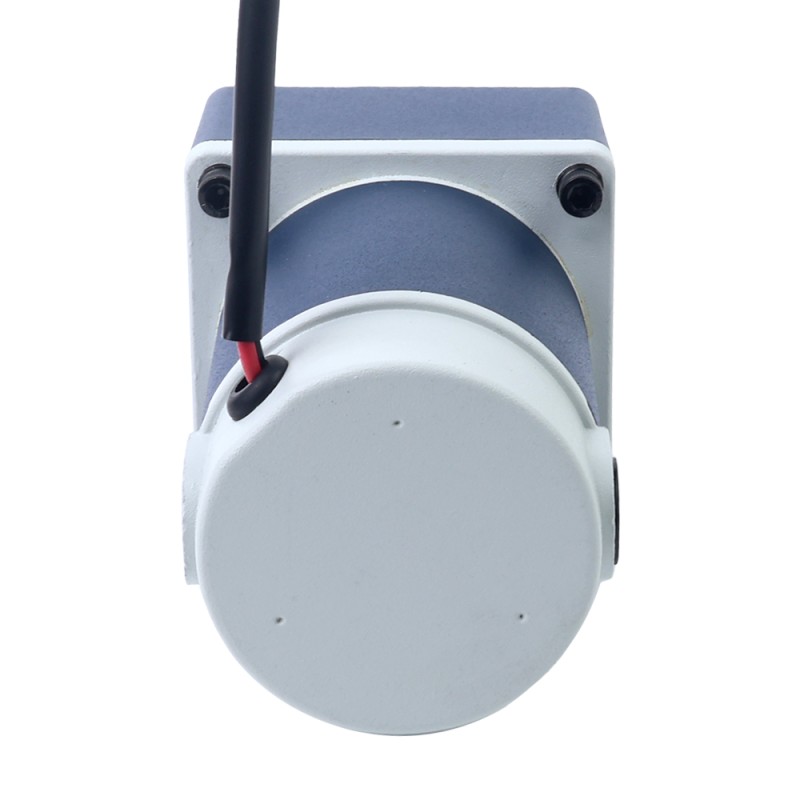

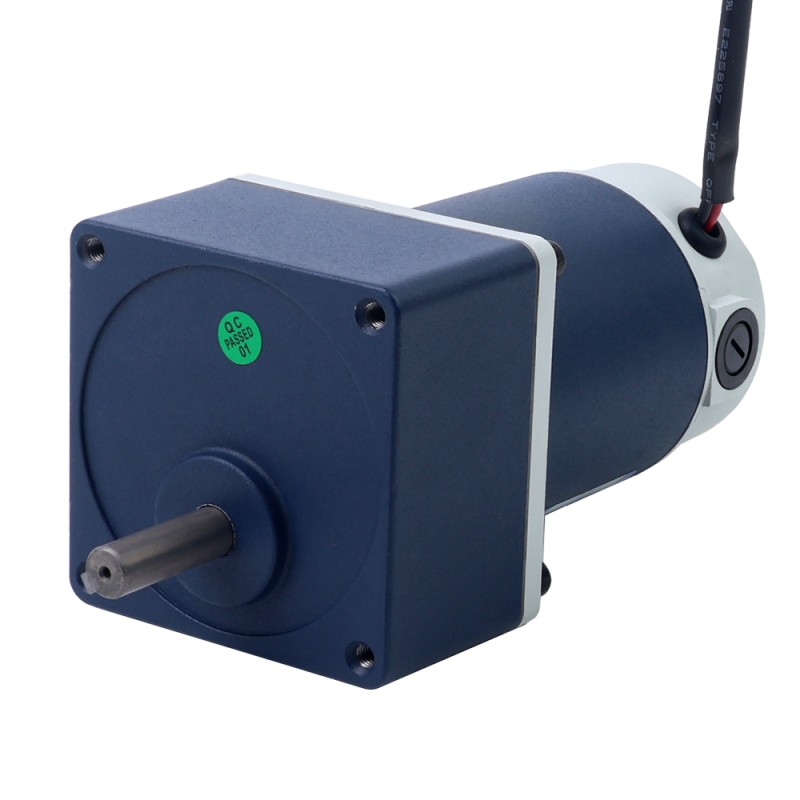

Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor

Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor - F34D40-12GN-30S/4GN20K | StepperOnline CA
F34D40-12GN-30S/4GN20K
Output Shaft TypeKeyway
Shaft Diameter(mm)10
Shaft Length(mm)33
Rated Voltage(V)12
Question

Downloads

F34D40-12GN-30S_4GNXXK_Manual.pdfPDF · 11.15MB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
F2D10-12GN-18S/2GN100KD83012C$30.91In stock
F2D10-12GN-18S/2GN10KD83012C$27.20In stock
F2D10-12GN-18S/2GN15KD83012C$27.20In stock
F2D10-12GN-18S/2GN200KD83012C$30.91In stock
F2D10-12GN-18S/2GN20KD83012C$29.06In stock
F2D10-12GN-18S/2GN30KD83012C$29.06In stock
F2D10-12GN-18S/2GN3KD83012C$27.20In stock
F2D10-12GN-18S/2GN50KD83012C$29.06In stock
F2D10-12GN-18S/2GN5KD83012C$27.20In stock
F2D10-12GN-30S/2GN100KD83012C$30.91In stock
F2D10-12GN-30S/2GN10KD83012C$27.20In stock
F2D10-12GN-30S/2GN15KD83012C$27.20In stock
F2D10-12GN-30S/2GN200KD83012C$30.91In stock
F2D10-12GN-30S/2GN20KD83012C$29.06In stock
F2D10-12GN-30S/2GN30KD83012C$29.06In stock
F2D10-12GN-30S/2GN3KD83012C$27.20In stock
F2D10-12GN-30S/2GN50KD83012C$29.06In stock
F2D10-12GN-30S/2GN5KD83012C$27.20In stock
F2D10-24GN-18S/2GN100KD83024C$30.91In stock
F2D10-24GN-18S/2GN100K-SALED83024C$31.39In stock
F2D10-24GN-18S/2GN10KD83024C$27.20In stock
F2D10-24GN-18S/2GN15KD83024C$27.20In stock
F2D10-24GN-18S/2GN200KD83024C$30.91In stock
F2D10-24GN-18S/2GN20KD83024C$29.06In stock
F2D10-24GN-18S/2GN30KD83024C$29.06In stock
F2D10-24GN-18S/2GN3KD83024C$27.20In stock
F2D10-24GN-18S/2GN50KD83024C$29.06In stock
F2D10-24GN-18S/2GN5KD83024C$27.20In stock
F2D10-24GN-30S/2GN100KD83024C$30.91In stock
F2D10-24GN-30S/2GN10KD83024C$27.20In stock
View all in category
Brushed 12V 40W 1.28Nm(181.26oz.in) 150RPM w/ 20:1 Spur Gearbox DC Gear Motor
This is a 12V 40W DC gear motor with a flange of 80x80mm. The built-in 20:1 spur Gearbox brings spee... Read More
0 reviews • Write a review
from
C$44.11
5 + C$42.93
10 + C$41.80
50 + C$40.75
100 + C$39.73

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

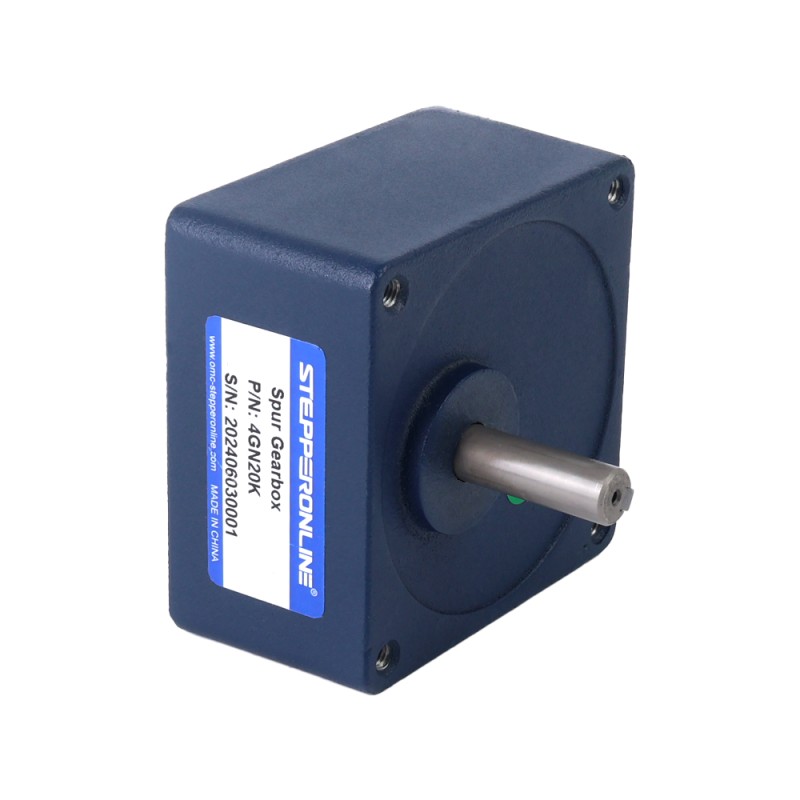

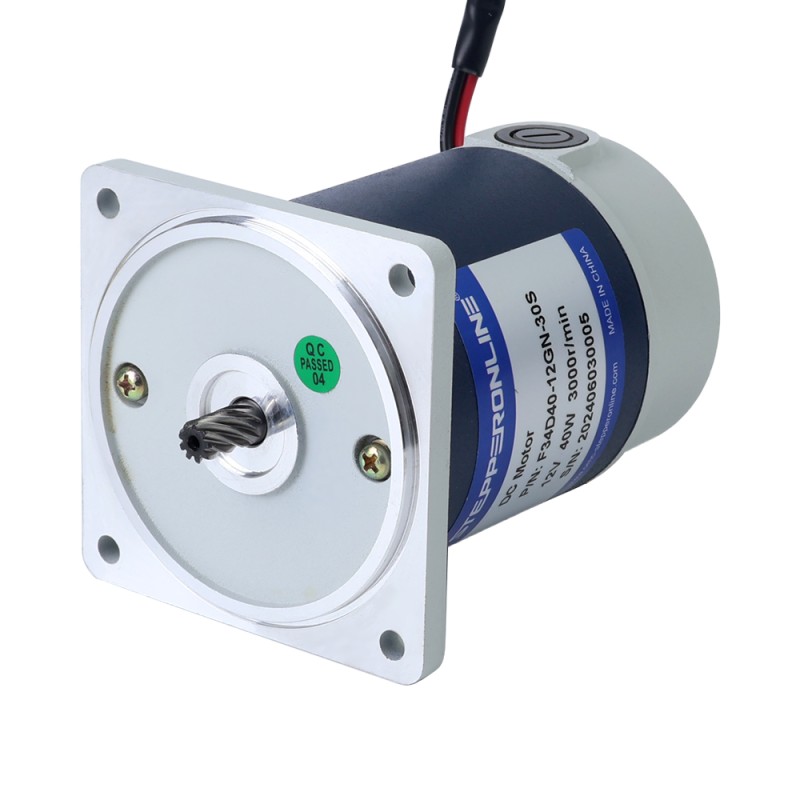

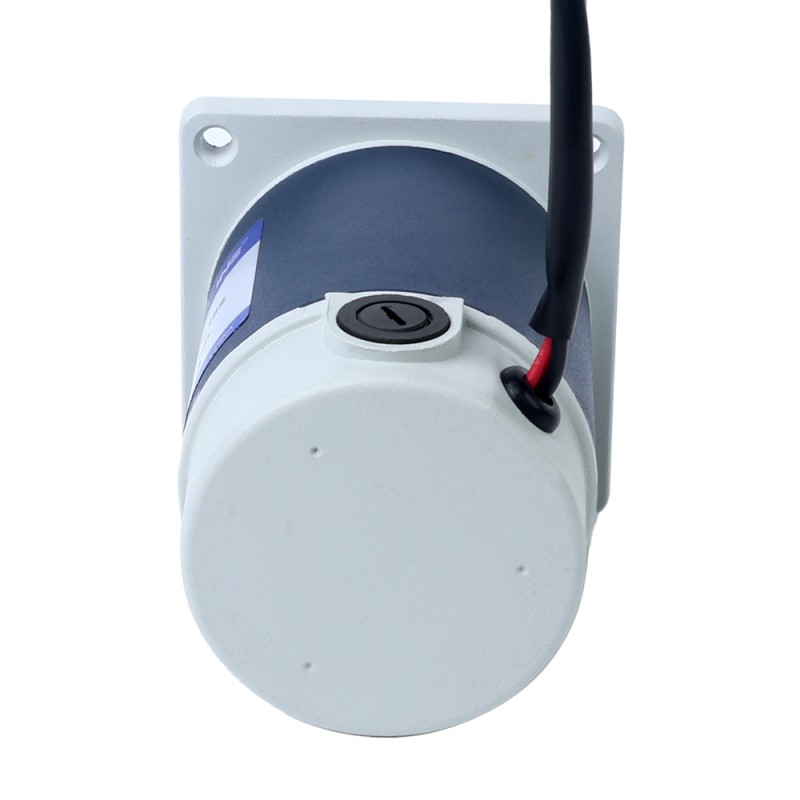

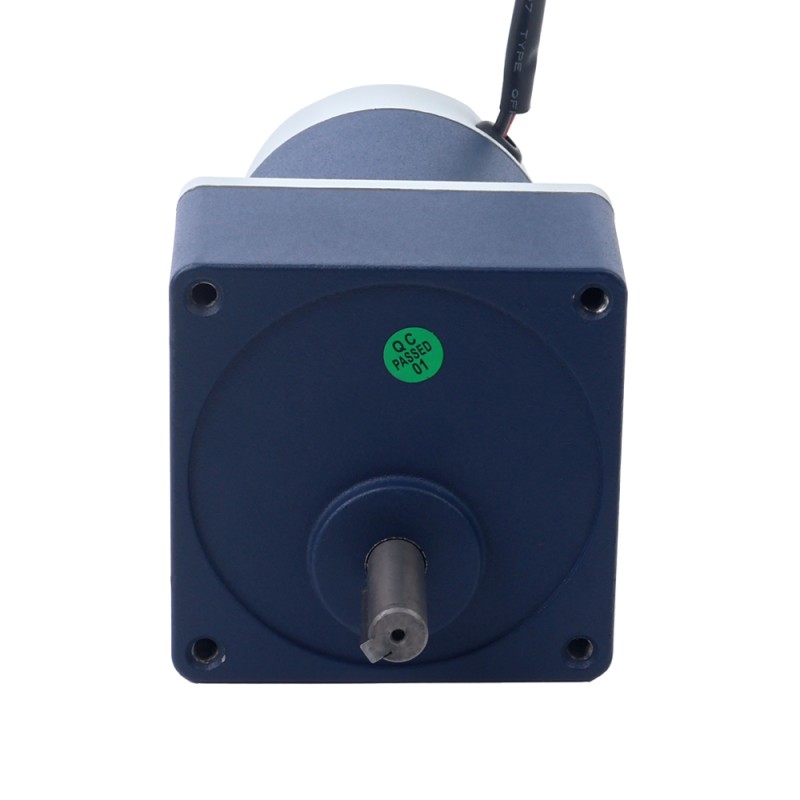

This is a 12V 40W DC gear motor with a flange of 80x80mm. The built-in 20:1 spur Gearbox brings speed and torque to 150rpm and 1.28Nm(181.26oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

  • P/N: F34D40-12GN-30S/4GN20K

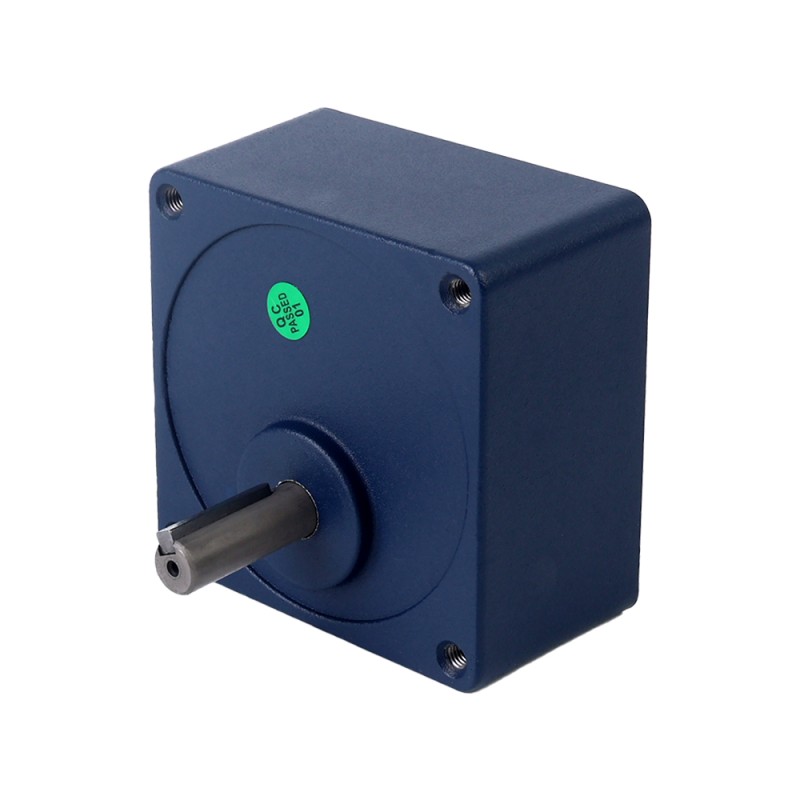

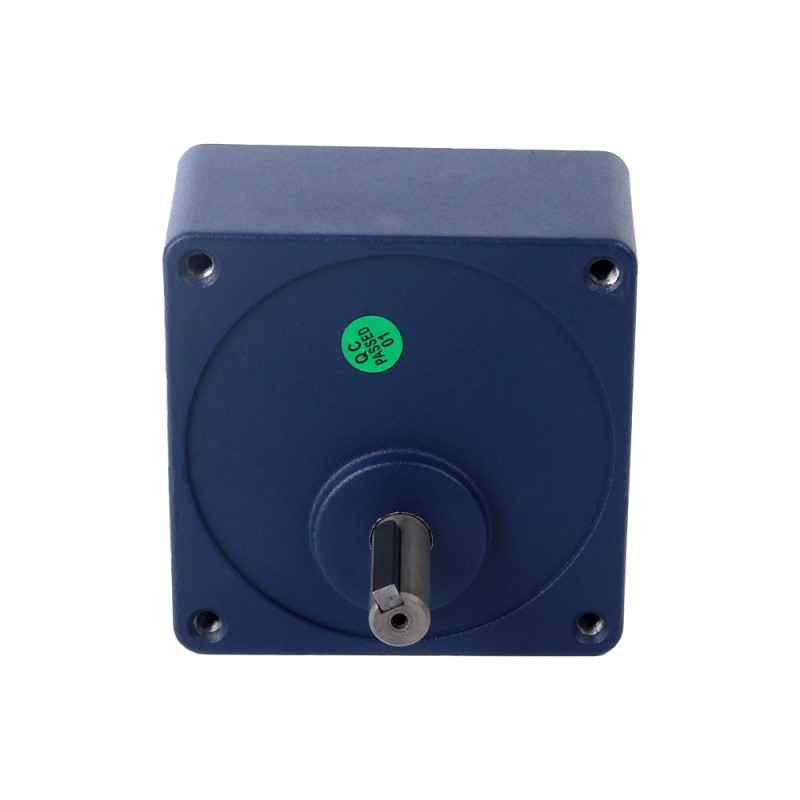

  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 12V
  • No-load Current: 1.2A
  • Gear Ratio: 20:1
  • Rated Speed: 150rpm
  • Rated Speed without Gearbox: 3000rpm
  • Rated Torque: 1.28Nm(181.26oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 147.1mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 2.03kg
Electrical Specification
Motor Type Brushed DC Motor
No-load Current(A) 1.2
Rated Speed(rpm) 150
Rated Torque(Nm) 1.28
Rated Torque(oz.in) 181.26
Rated Voltage(V) 12
Physical Specification
Gear Ratio(xx:1) 20
Gearbox Shape Square
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 10
Shaft Length(mm) 33

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

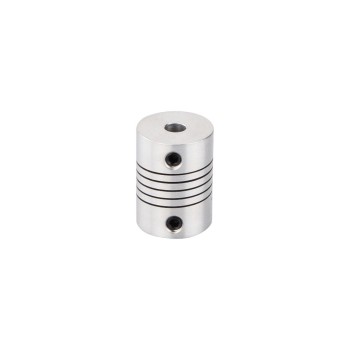

8mm - 10mm Flexible Coupling 20x25mm CNC Stepper Motor Shaft Coupler
8mm - 10mm Flexible Coupling 20x25mm CNC Stepper Motor Shaft Coupler
Shaft: 8mm - 10mm P/N: ST-FC09 Diameter: 20mm Length: 25mm Body Material: Aluminum Alloy..
from
C$1.84
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
🔥 Bestseller
LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
This is a 350W 24VDC 14.6A power supply. LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting t..
from
C$28.67
Add to Cart
Add to Wish List Compare this Product
Quickview

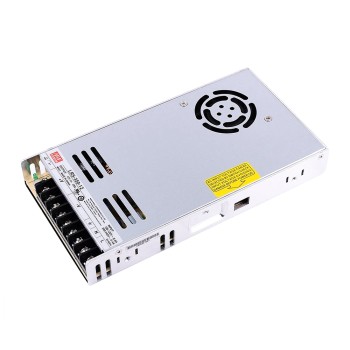

LRS-350-12 MEANWELL 350W 12VDC 29A 115/230VAC Enclosed Switching Power Supply
LRS-350-12 MEANWELL 350W 12VDC 29A 115/230VAC Enclosed Switching Power Supply
This is a 350W 12VDC 29A power supply. MEANWELL LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Ado..
from
C$29.74
Add to Cart
Add to Wish List Compare this Product
Quickview

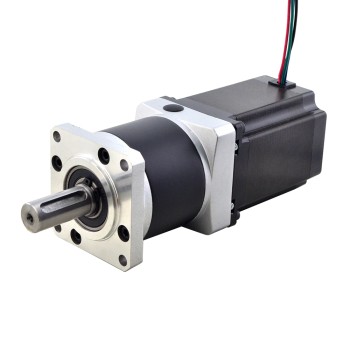

Nema 23 Stepper Motor L=76.5mm Gear Ratio 50:1 MG Series Planetary Gearbox
Nema 23 Stepper Motor L=76.5mm Gear Ratio 50:1 MG Series Planetary Gearbox
This Nema 23 size stepper motor is equipped with MG series high precision gearbox. The gear ratio is 50:1 and the Max. backlash is 50 arc minutes. It'..
from
C$68.37
Add to Cart
Add to Wish List Compare this Product
Quickview

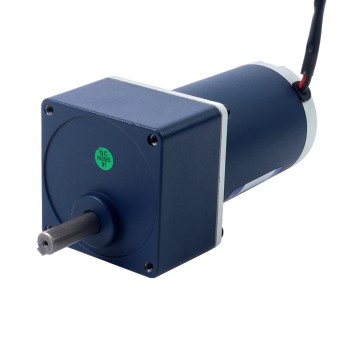

Brushed 12V 30W 0.97Nm(137.36oz.in) 200RPM w/ 15:1 Spur Gearbox DC Gear Motor
Brushed 12V 30W 0.97Nm(137.36oz.in) 200RPM w/ 15:1 Spur Gearbox DC Gear Motor
This is a 12V 30W DC gear motor with a flange of 70x70mm. The built-in 15:1 spur Gearbox brings speed and torque to 200rpm and 0.97Nm(137.36oz.in). Du..
from
C$31.44
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushed 12V 40W 8.00Nm(1132.89oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor
Brushed 12V 40W 8.00Nm(1132.89oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor
This is a 12V 40W DC gear motor with a flange of 80x80mm. The built-in 200:1 spur Gearbox brings speed and torque to 9rpm and 8.00Nm(1132.89oz.in). Du..
from
C$49.14
Add to Cart
Add to Wish List Compare this Product
Quickview

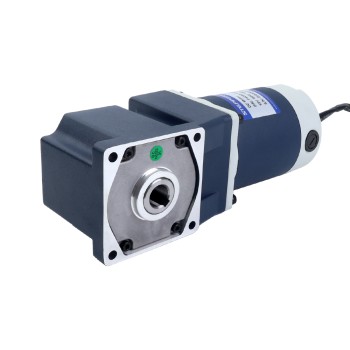

Brushed 24V 60W 8.00Nm(1132.90oz.in) 10RPM w/ 180:1 Right Angle Gearbox DC Gear Motor
