Brushed 12V 90W 8.76Nm(1240.52oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor

0 reviews - Write a review

C$159.46

5 + C$152.60

10 + C$146.31

50 + C$140.51

100 + C$135.17

In Stock: 10000
Model: F5D90-12GU-30S/5GU50RC
Gross Weight: 5.88kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

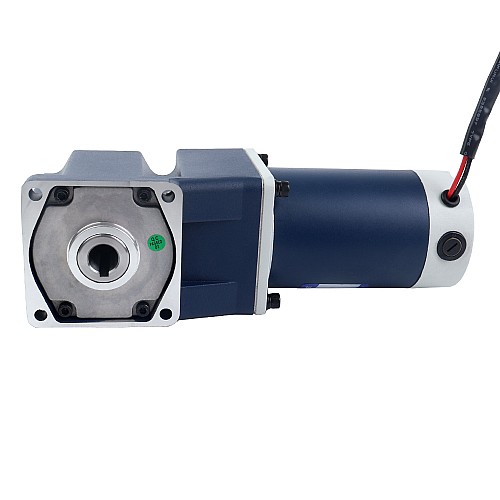

This is a 12V 90W DC gear motor with a flange of 90x90mm. The built-in 50:1 hollow shaft right angle Gearbox brings speed and torque to 60rpm and 8.76Nm(1240.52oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

P/N: F5D90-12GU-30S/5GU50RC
Output Power: 90W
Voltage: 12V
Rated Speed: 60rpm
Rated Torque: 8.76Nm(1240.52oz.in)
Brush Service Life: 2000h

Physical Specifications

Frame Size: 90x90mm
Body Length Includes Gearbox: 281mm
Gearbox Type: Right Angle Gearbox
Gear Ratio: 50:1
Shaft Type: Hollow
Bore Diameter: Φ17mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Speed(rpm)	60
Rated Torque(Nm)	8.76
Rated Torque(oz.in)	1240.52
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	50
Gearbox Shape	Square
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Hollow
