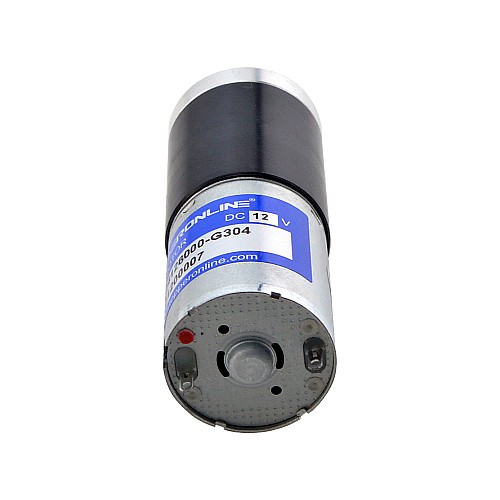

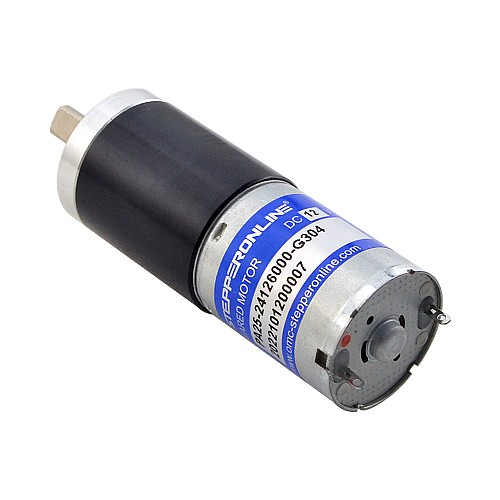

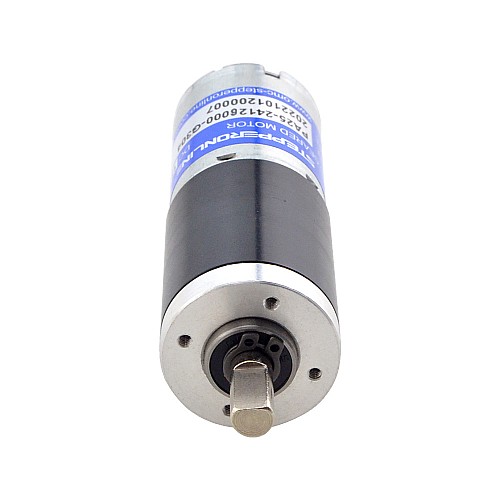

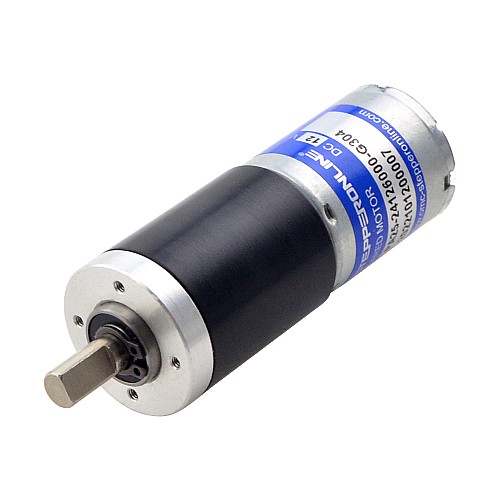

Brushed 12V DC Gear Motor 5.5Kg.cm/15RPM w/ 304:1 Planetary Gearbox

0 reviews - Write a review

C$16.86

5 + C$16.28

10 + C$15.75

50 + C$15.24

100 + C$14.77

In Stock: Pre-order
Model: PA25-24126000-G304
Gross Weight: 0.17kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 100

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 12 volt brushed DC gear motor, generating 5.5kg.cm of torque at 15rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 304:1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: PA25-24126000-G304
Rated Voltage: 12V
Rated Torque: 5.5kg.cm(76.38oz.in)
Rated Current: 250mA
Rated Speed: 15rpm
Rated Power: 1.4W
No-load Current: 20mA
No-load Speed: 20rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 304 : 1
Max. Permissible Torque: 5kg.cm
Moment Permissible Torque(within 30S): 10kg.cm
Max. Permissible Radial Load: <=10N
Max. Permissible Axial Load: <=6N

Physical Specification

Motor Size: Φ24.4 x 30.8mm
Gearbox Size: Φ25.4 x 33.4mm
Shaft Diameter: Φ6mm
Shaft Length: 15mm
D-cut Length: 9mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.25
Rated Power(W)	1.4
Rated Speed(rpm)	15
Rated Torque(kg.cm)	5.5
Rated Torque(oz.in)	76.38
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	304
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15
