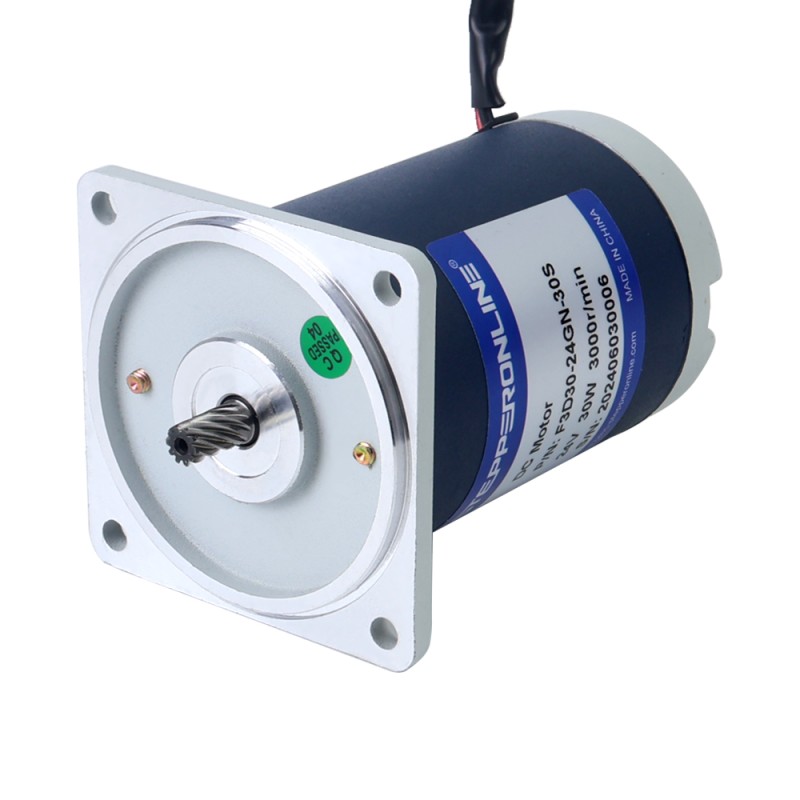

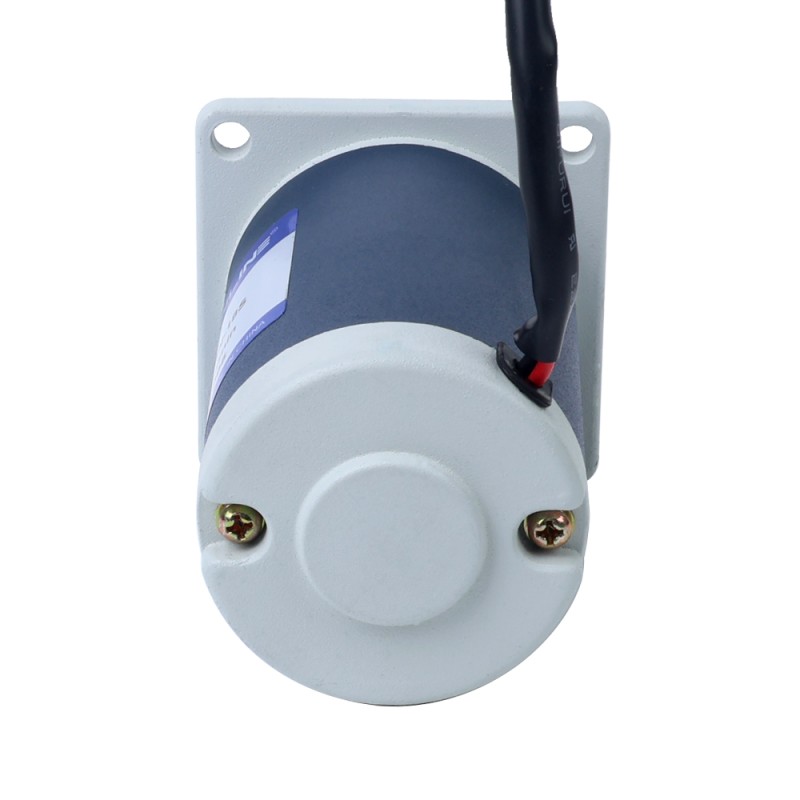

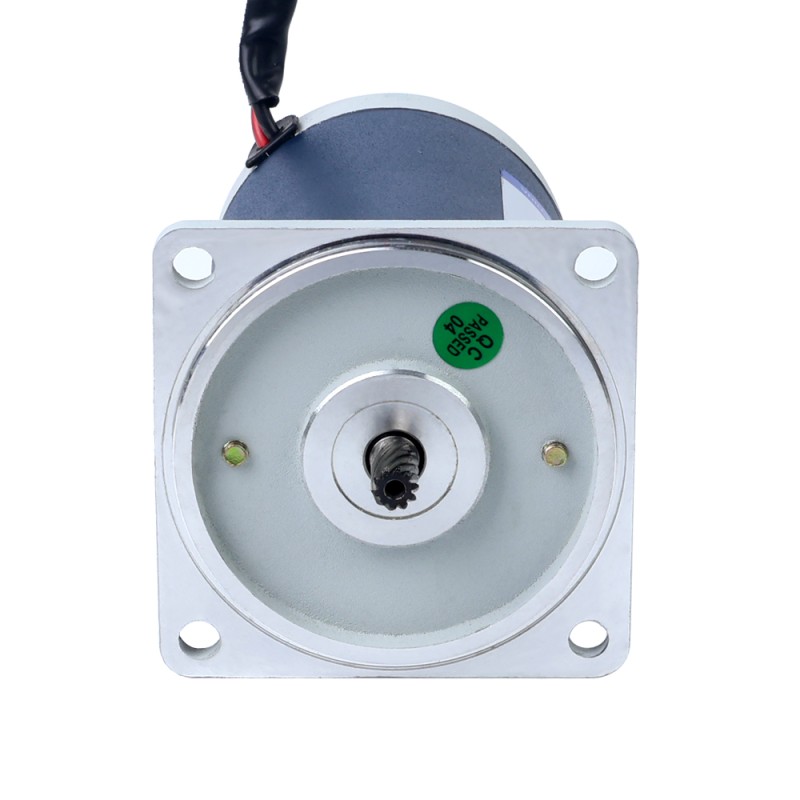

Brushed 24V 30W 0.97Nm(137.36oz.in) 200RPM w/ 15:1 Spur Gearbox DC Gear Motor

0 reviews - Write a review

C$39.77

5 + C$38.45

10 + C$37.22

50 + C$36.07

100 + C$34.99

In Stock: 10000
Model: F3D30-24GN-30S/3GN15K
Gross Weight: 1.82kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

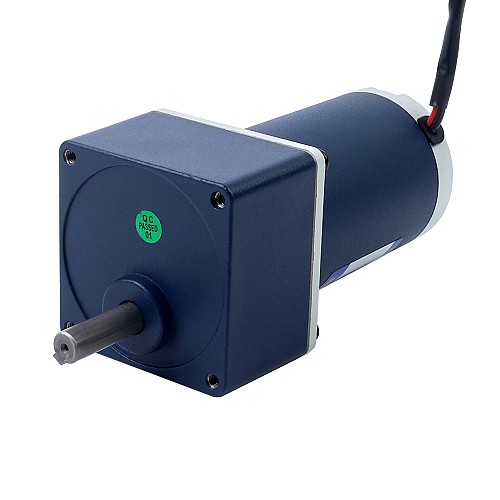

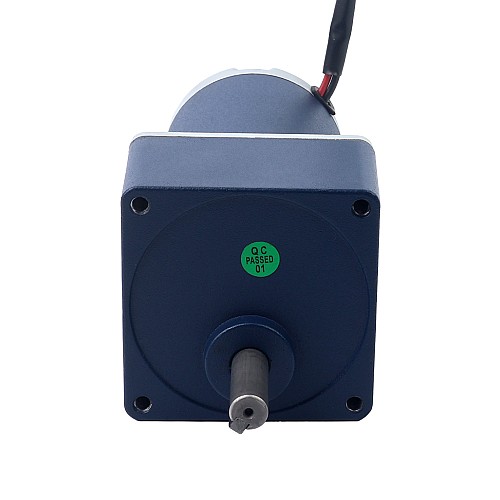

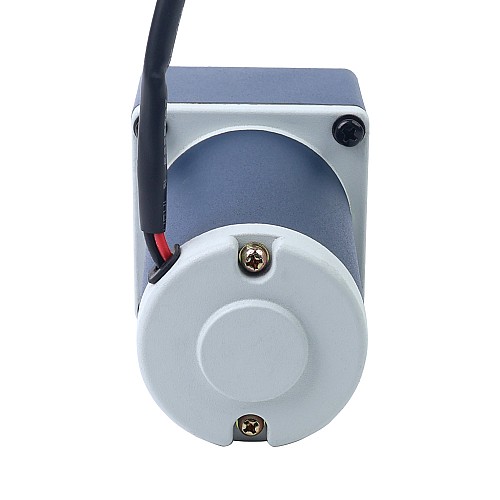

This is a 24V 30W DC gear motor with a flange of 70x70mm. The built-in 15:1 spur Gearbox brings speed and torque to 200rpm and 0.97Nm(137.36oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

P/N: F3D30-24GN-30S/3GN15K

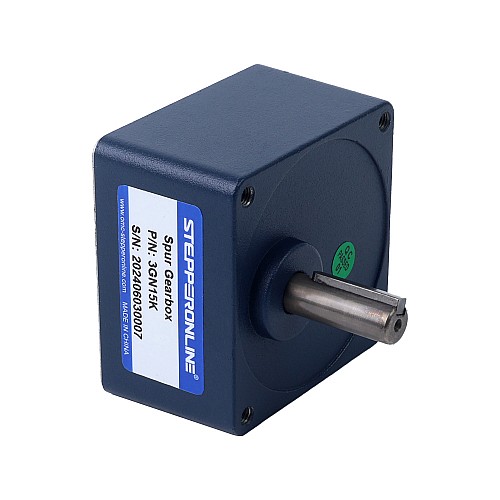

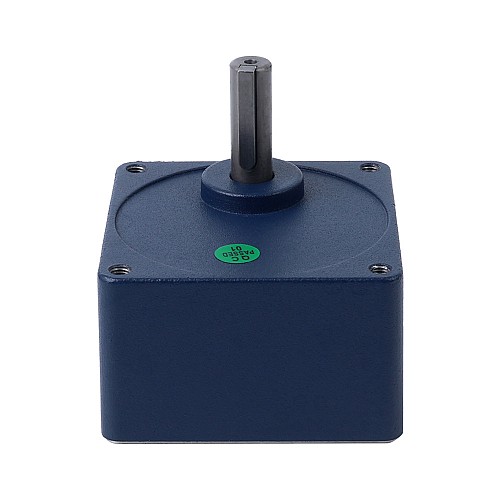

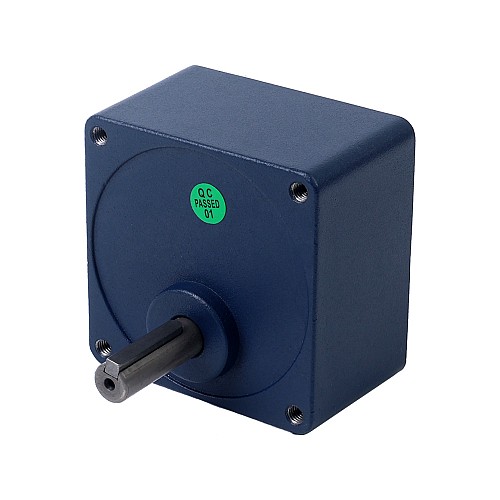

Gearbox Type: Spur Gearbox
Output Power: 30W
Voltage: 24V
No-load Current: 0.4A
Gear Ratio: 15:1
Rated Speed: 200rpm
Rated Speed without Gearbox: 3000rpm
Rated Torque: 0.97Nm(137.36oz.in)
Brush Service Life: 2000h

Physical Specifications

Frame Size: 70x70mm
Body Length: 142.5mm
Shaft Type: Keyway
Shaft Diameter: Φ10mm
Shaft Length: 33mm
Weight: 1.6kg

Electrical Specification
Motor Type	Brushed DC Motor
No-load Current(A)	0.4
Rated Speed(rpm)	200
Rated Torque(Nm)	0.97
Rated Torque(oz.in)	137.36
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	15
Gearbox Shape	Square
Gearbox Type	Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	10
Shaft Length(mm)	33
