Brushed 48V 250W 11.81Nm(1672.44oz.in) 150RPM w/ 20:1 Right Angle Gearbox DC Gear Motor
0 reviews - Write a review
C$218.76
5 + C$209.36
10 + C$200.72
50 + C$192.77
100 + C$185.43
  • In Stock: 10000
  • Model: F6D250-48GU-30S/6GU20RC
  • Gross Weight: 8.66kg
  • Certificated: ISO, CE, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

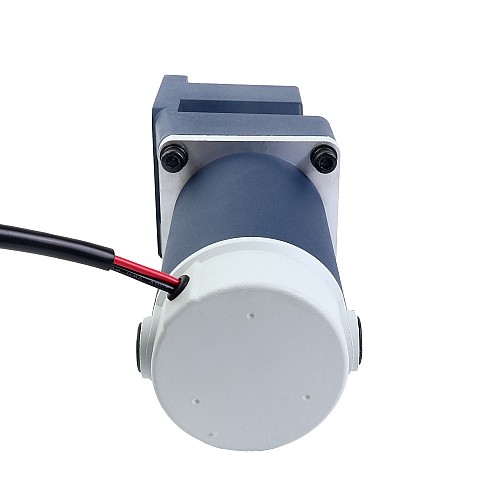

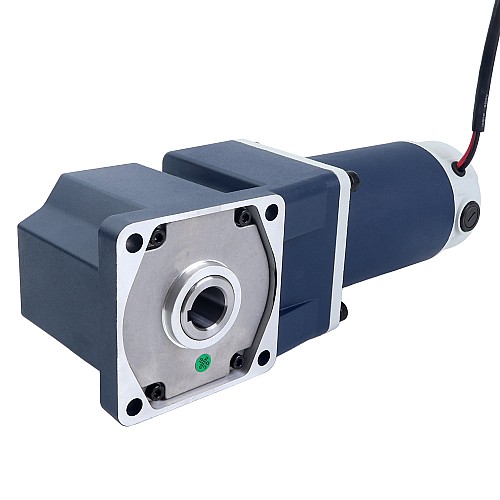

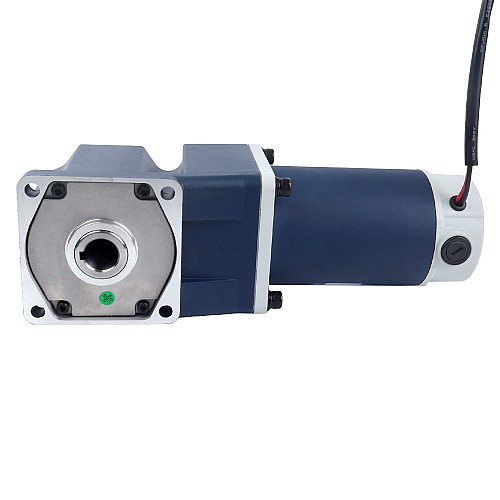

This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 20:1 hollow shaft right angle Gearbox brings speed and torque to 150rpm and 11.81Nm(1672.44oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F6D250-48GU-30S/6GU20RC
  • Output Power: 250W
  • Voltage: 48V
  • Rated Speed: 150rpm
  • Rated Torque: 11.81Nm(1672.44oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length Includes Gearbox: 324mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 20:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ22mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Speed(rpm) 150
Rated Torque(Nm) 11.81
Rated Torque(oz.in) 1672.44
Rated Voltage(V) 48
Physical Specification
Gear Ratio(xx:1) 20
Gearbox Shape Square
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow
