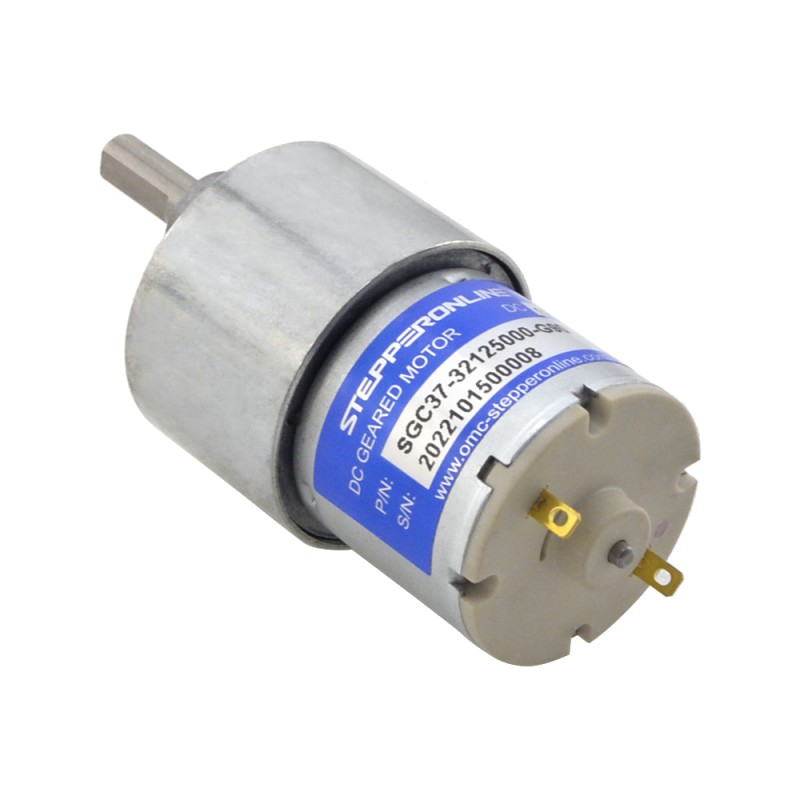

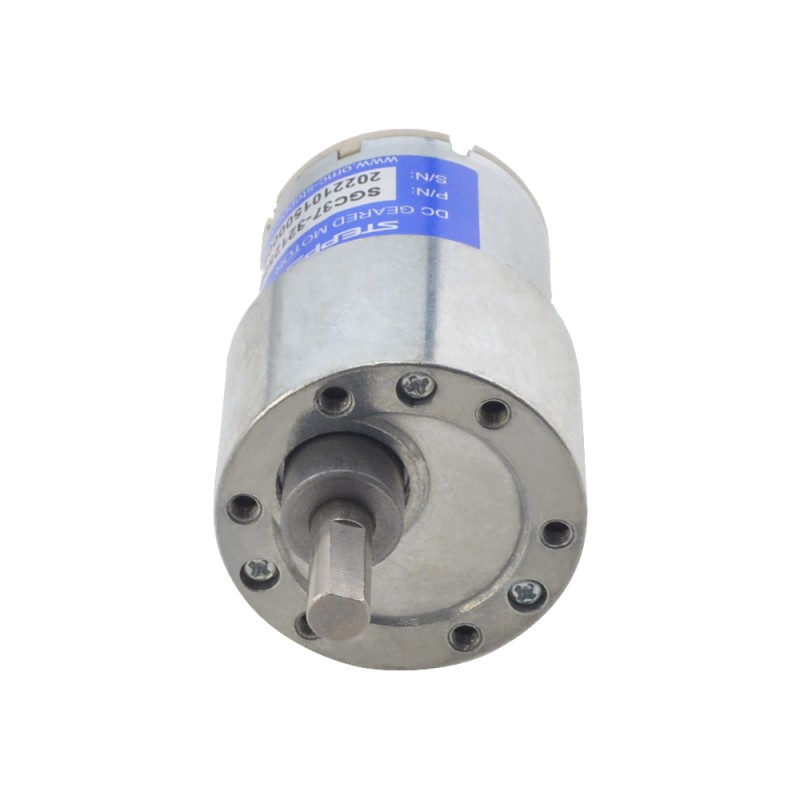

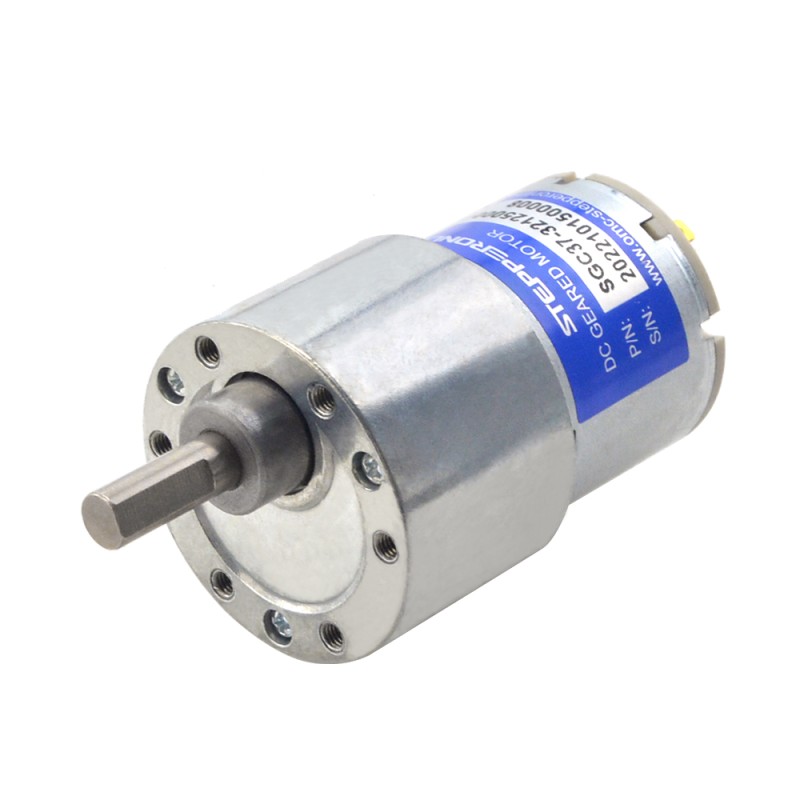

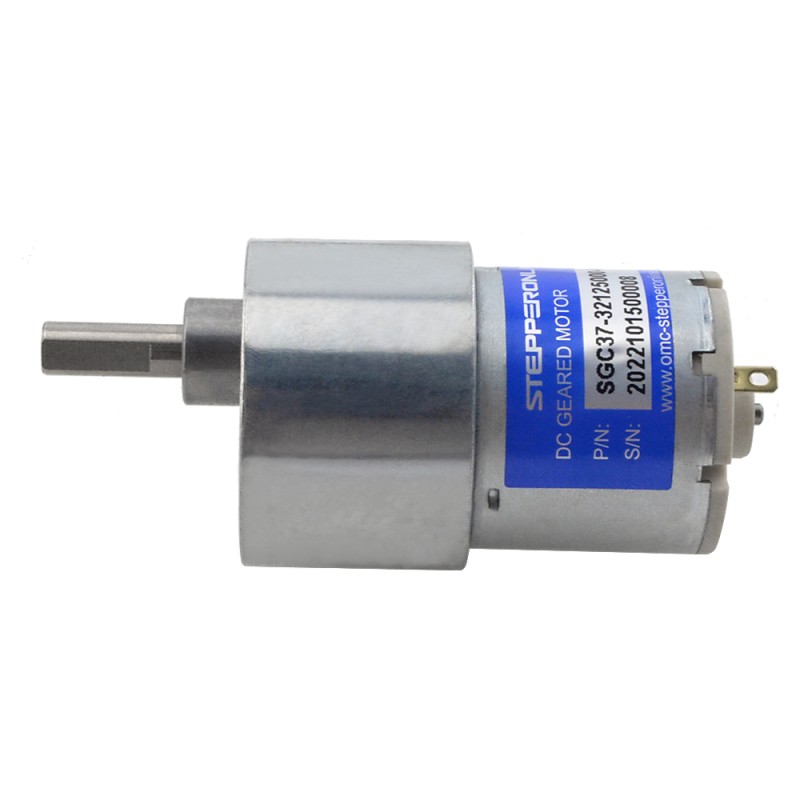

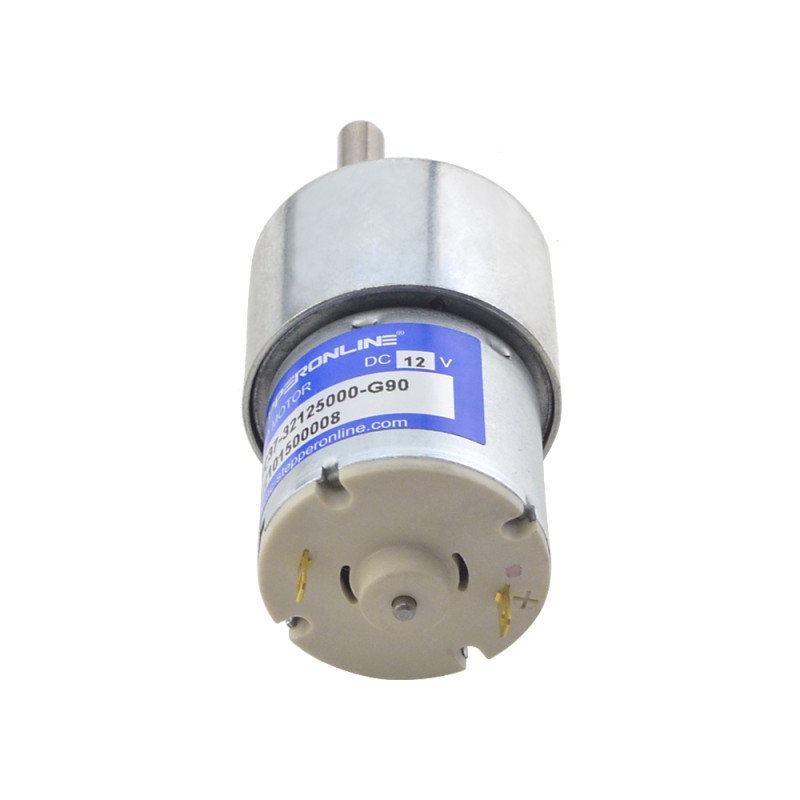

Name: CN On Sale - Brushed 12V DC Gear Motor 3.5Kg.cm/41RPM 90:1 Spur Gearbox
Brand: STEPPERONLINE
SKU: SGC37-32125000-G90-SALE
Price: 7.12 CAD
Availability: InStock

CN On Sale - Brushed 12V DC Gear Motor 3.5Kg.cm/41RPM 90:1 Spur Gearbox - CN-SGC37-32125000-G90 | StepperOnline CA

SGC37-32125000-G90-SALE

Shaft Diameter(mm)6

Shaft Length(mm)15.5

Rated Voltage(V)12

Rated Current(A)0.6

Question

Downloads

SGC37-32125000-G90_Full_Datasheet.pdfPDF · 140.03KB

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Rated Current(A)	Price	Stock
SGA37-33123000-G90	6	17	12	0.14	C$6.79	In stock
SGA37-33123000-G90-SALE	6	17	12	0.14	C$4.74	In stock
SGA37-33126000-G60	6	15.5	12	0.6	C$6.79	In stock
SGB37-33123000-G540	6	15.5	12	0.24	C$9.50	In stock
SGC37-32125000-G90	6	15.5	12	0.6	C$10.16	In stock
SGC37-32125000-G90-SALE	6	15.5	12	0.6	C$7.12	In stock
SGD37-33124500-G60	6	15.5	12	0.6	C$10.16	Backorder
SGE27-27063800-G187	4	11	6	0.22	C$6.10	Backorder
SGE37-28246000-G180	6	15.5	24	0.9	C$8.47	In stock
SGE37-36123000-G540	6	15.5	12	0.93	C$10.85	Backorder
SGF32-32127000-G72	6	15	12	0.6	C$10.16	Backorder
SGF37-32127000-G128	6	15.5	12	1	C$16.95	In stock

CN On Sale - Brushed 12V DC Gear Motor 3.5Kg.cm/41RPM 90:1 Spur Gearbox

This is a standard 12volt brushed DC gear motor, generating 3.5kg.cm of torque at 41rpm. It's a smal... Read More

0 reviews • Write a review

from Save -30%

C$7.12

C$10.16

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 12volt brushed DC gear motor, generating 3.5kg.cm of torque at 41rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 90 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGC37-32125000-G90
Rated Voltage: 12V
Rated Torque: 3.5kg.cm(48.41oz.in)
Rated Current: <=450mA
Rated Speed: 41rpm
No-load Current: <=140mA
No-load Speed: 55rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 90 : 1

Physical Specification

Motor Size: Φ32 x 29mm
Gearbox Size: Φ37 x 25mm
Shaft Diameter: Φ6mm
Shaft Length: 15.5mm
D-cut Length: 12mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.6
Rated Speed(rpm)	50
Rated Torque(kg.cm)	4
Rated Torque(oz.in)	48.41
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	60
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15.5
