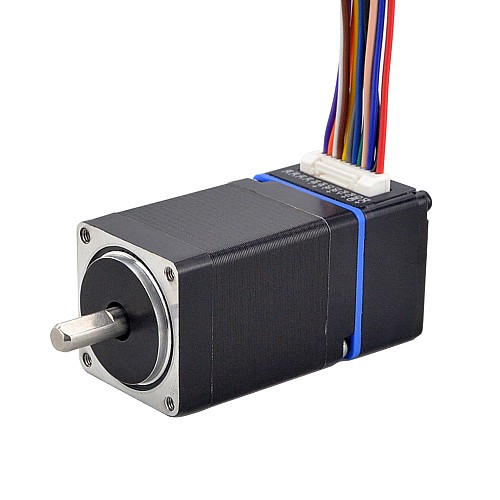

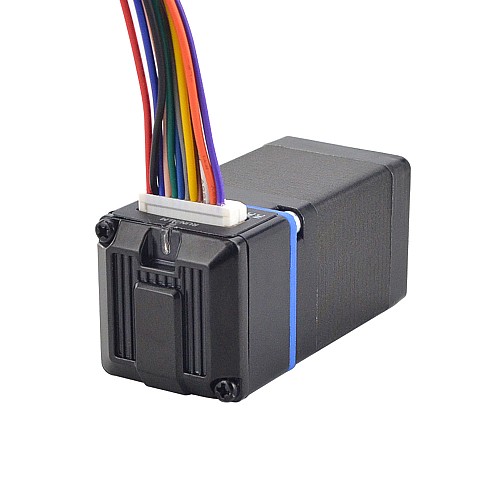

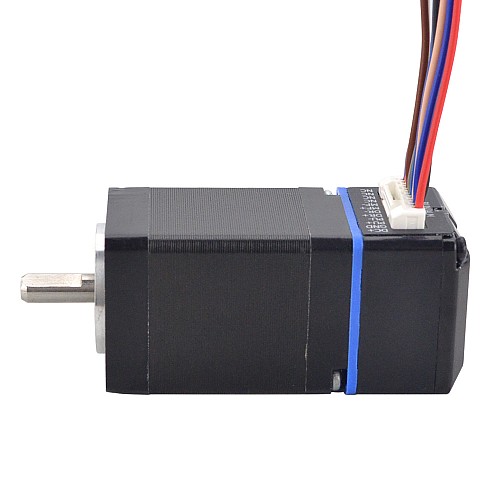

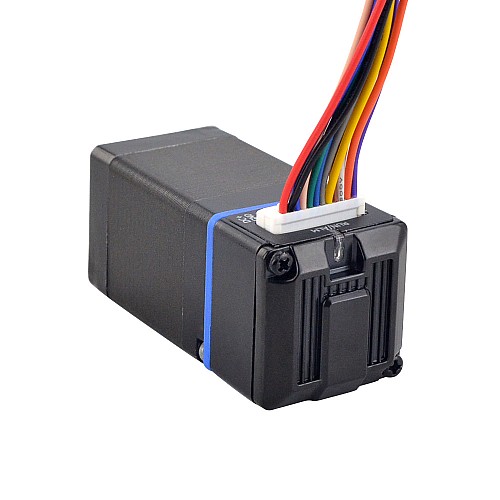

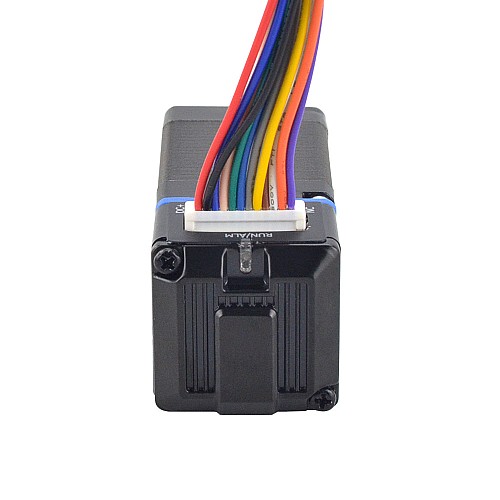

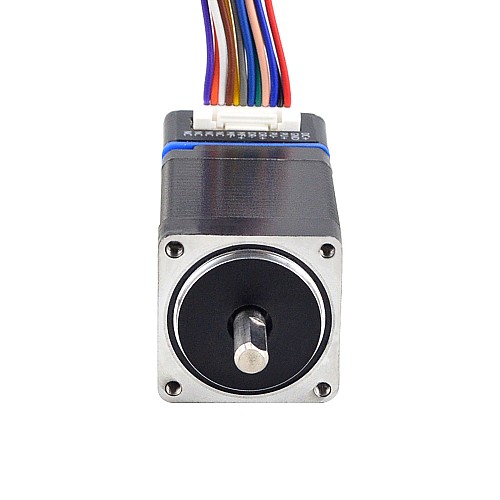

Name: ESS11-01 | ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 4096CPR | StepperOnline CA
SKU: ESS11-01
Availability: InStock

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 4096CPR

Discontinued

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 4096CPR

0 reviews - Write a review

C$0.00

In Stock: 1
Model: ESS11-01
Gross Weight: 0.25kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Electrical Specifications

Manufacturer Part Number: ESS11-01
Holding Torque: 7.4Ncm(10.48oz.in)
Input Voltage: 24VDC
Insulation Class: B 130°C[266°F]
Output Peak Current: 0.6 - 1.2A
Logic Input Current: 10mA
Logic Input Voltage: 5V
Encoder Type: Incremental
Encoder Output Type: Differential
Encoder Resolution: 4096CPR
Encoder Output Signal Channels: 2
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

Physical Specifications

Frame Size: 20 x 20mm
Body Length: 38.9mm
Shaft Diameter: Φ5mm
D-cut Shaft Length: 10mm
Shaft Length: 15mm
Weight: 182g

Connector Specification

Housing Model: 502380-1200
Terminal Model: 5023810000

Connection

+DC	GND	PU+	PU-	DR+	DR-	MF+	MF-
Red	Black	Navy	Pink	Green	Blue	Gray	Yellow

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	No
Control Modes	Pulse Mode
Encoder Feedback	Yes (Closed Loop)
Encoder Resolution	4096
Encoder Type	Incremental
Holding Torque(Ncm)	7.4
Holding Torque(oz.in)	10.48
Input Voltage Reference(V)	24 - 36DC
Input Voltage(V)	24DC
Output Signal Channels	2
Physical Specification
Body Length(mm)	38.9
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	15
