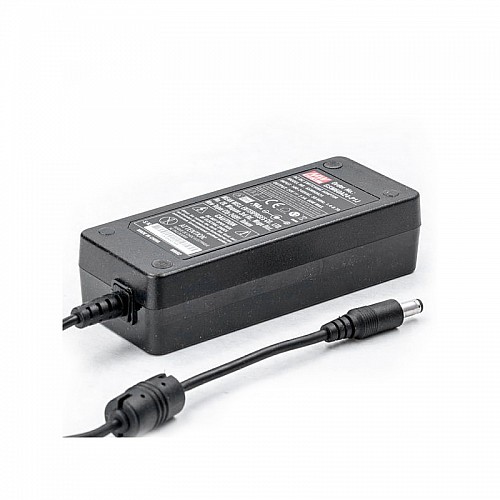

GSM60A24-P1J MEANWELL 60W 24VDC 2.5A 115/230VAC AC-DC Reliable Green Medical Adaptor
0 reviews - Write a review
C$33.80
5 + C$32.81
10 + C$31.89
50 + C$31.01
100 + C$30.18
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: GSM60A24-P1J
  • Gross Weight: 0.32kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 2.5A output
  • AC input voltage range: 80 ~ 264VAC
  • Rated power: 60W

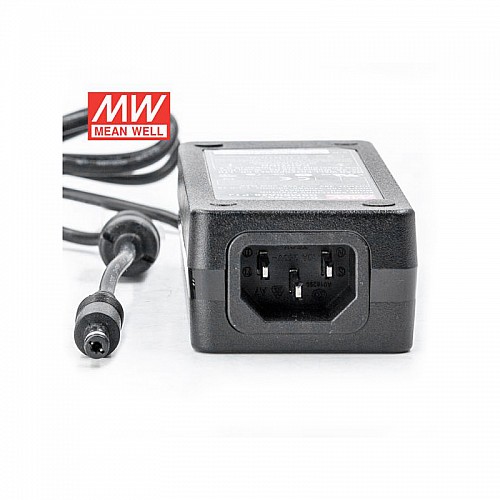

  • 3 pole AC inlet IEC320-C14, ClassⅠ power unit
  • Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Extremely low leakage current
  • No load power consumption <0.15W
  • Energy efficiency level Ⅵ and meet CoC Version 5(Except 5-9V for Level Ⅴ)
  • -30~+70℃ wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on
  • Lifetime > 105K hours
  • 3 years warranty

Applications

  • Mobile clinical workstation
  • Oral irrigator
  • Portable hemodialysis machine
  • Breath Machine
  • Medical computer monitor
Electrical Specification
Efficiency(%) 0.905
Max. Output Current(A) 2.5
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 125 x 50 x 31.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 80 - 264
Output Voltage(VDC) 24
PFC Function No
Power Type Adaptor
Power(W) 60
Physical Specification
Inventory Method Shared Inventory
File Size
GSM60A.pdf 1.15MB Download
