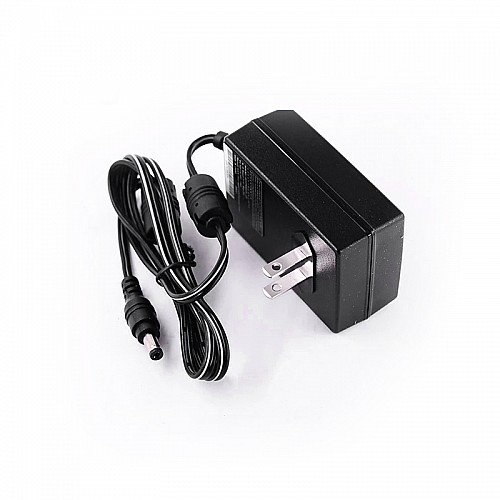

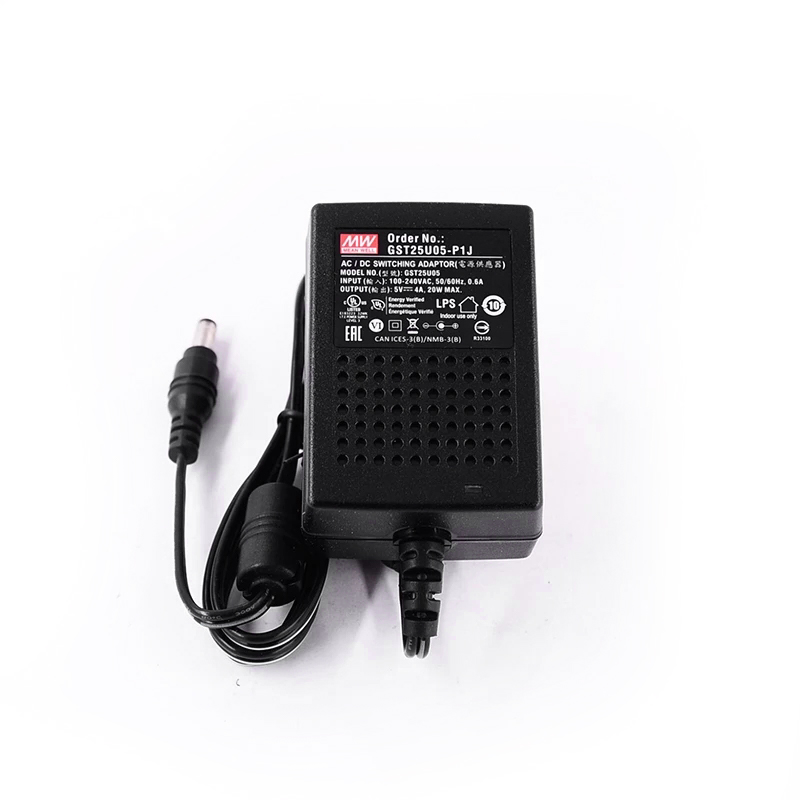

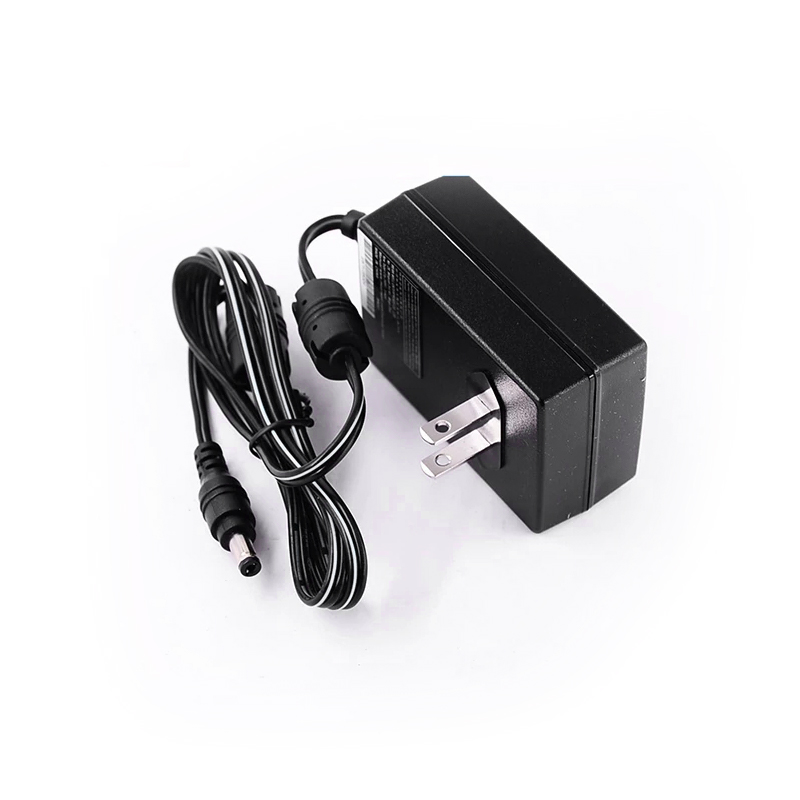

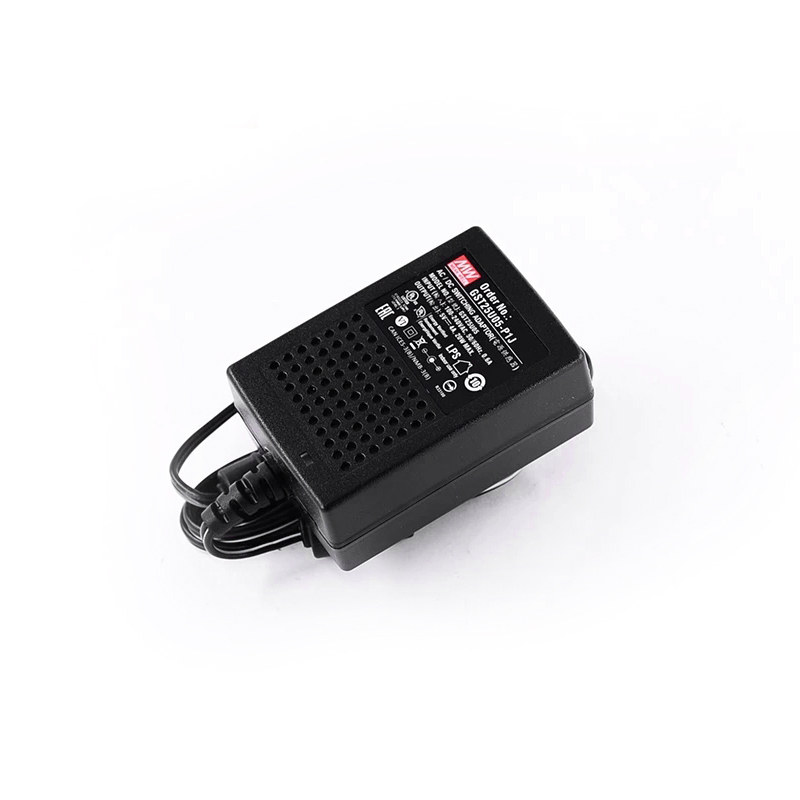

GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor

GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor - GST25U05-P1J | StepperOnline CA
GST25U05-P1J MEANWELL 20W 5VDC 4A 115/230VAC AC-DC Reliable Green Industrial Adaptor
0 reviews - Write a review
C$17.35
5 + C$16.84
10 + C$16.35
50 + C$15.91
100 + C$15.48
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: GST25U05-P1J
  • Gross Weight: 0.20kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 5V DC 4A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 20W
  • Global certificates
  • Universal AC input / Full range
  • 2 pole USA plug, Class Ⅱ power unit
  • No load power consumption <0.075W
  • Energy efficiency Level Ⅵ
  • Comply with EISA 2007/DoE and NRCan
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • -30~+70℃ wide range working temperature
  • LED indicator for power on
  • 3 years warranty

Applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments
  • Power sourcing equipment of PoE
Electrical Specification
Efficiency(%) 81.5%
Max. Output Current(A) 4
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 79 x 54 x 33
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 85 - 264
Output Voltage(VDC) 5
PFC Function No
Power Type Adaptor
Power(W) 20
Physical Specification
Inventory Method Shared Inventory
File Size
GST25U.pdf 1.06MB Download
