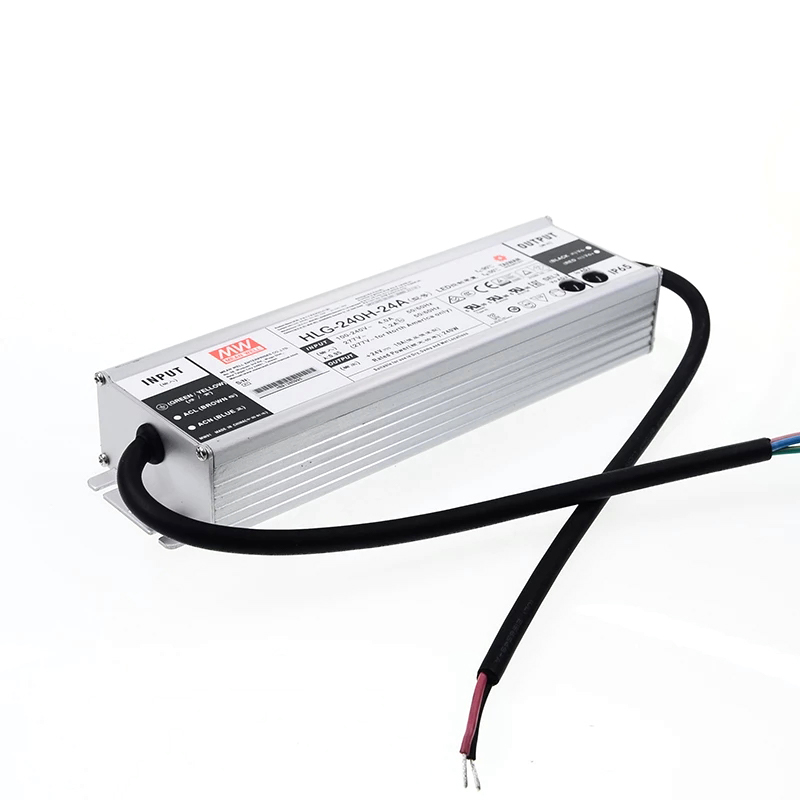

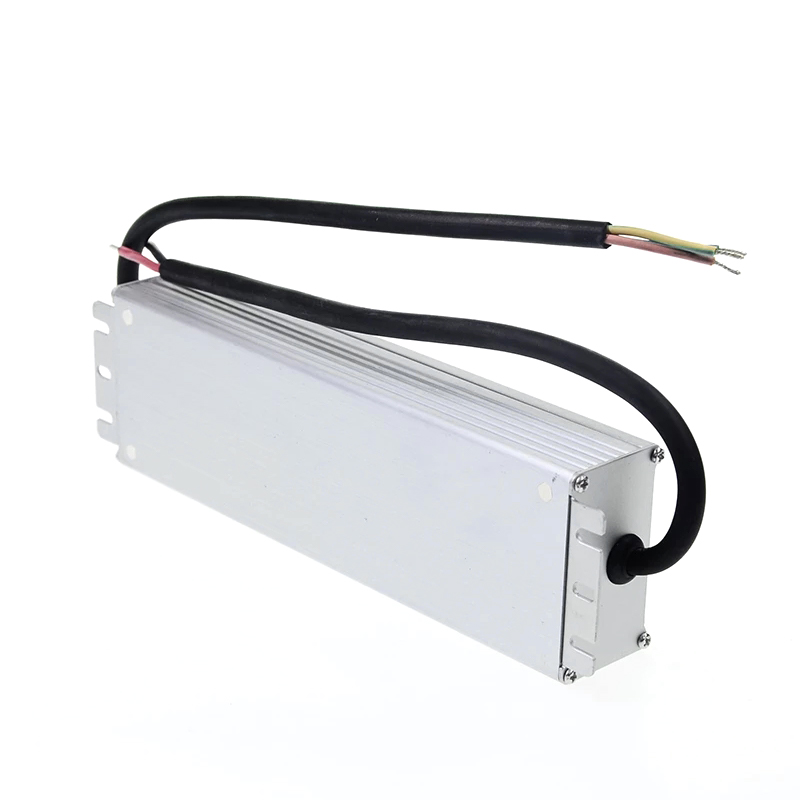

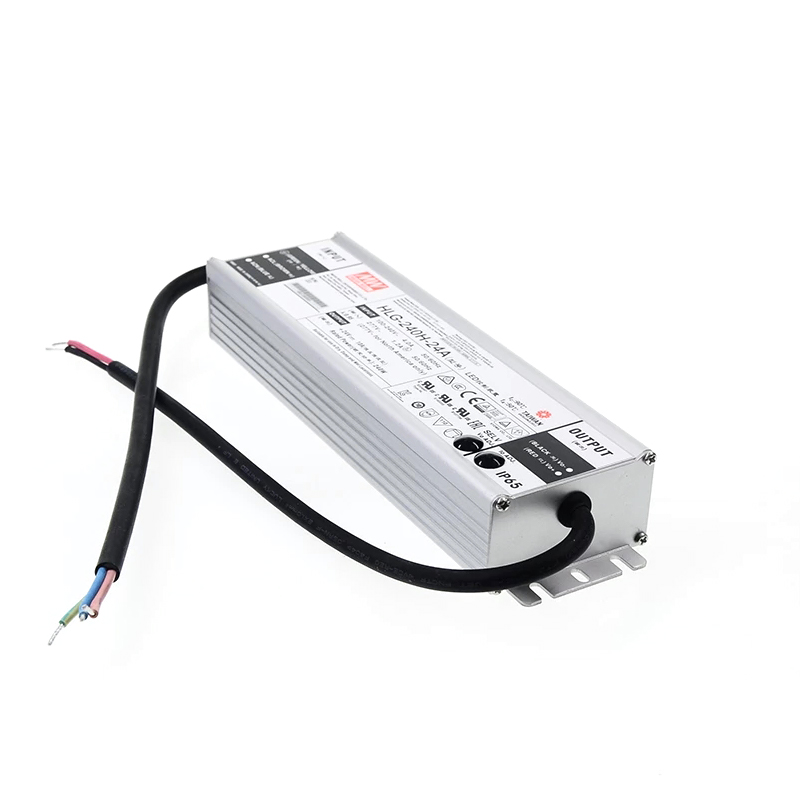

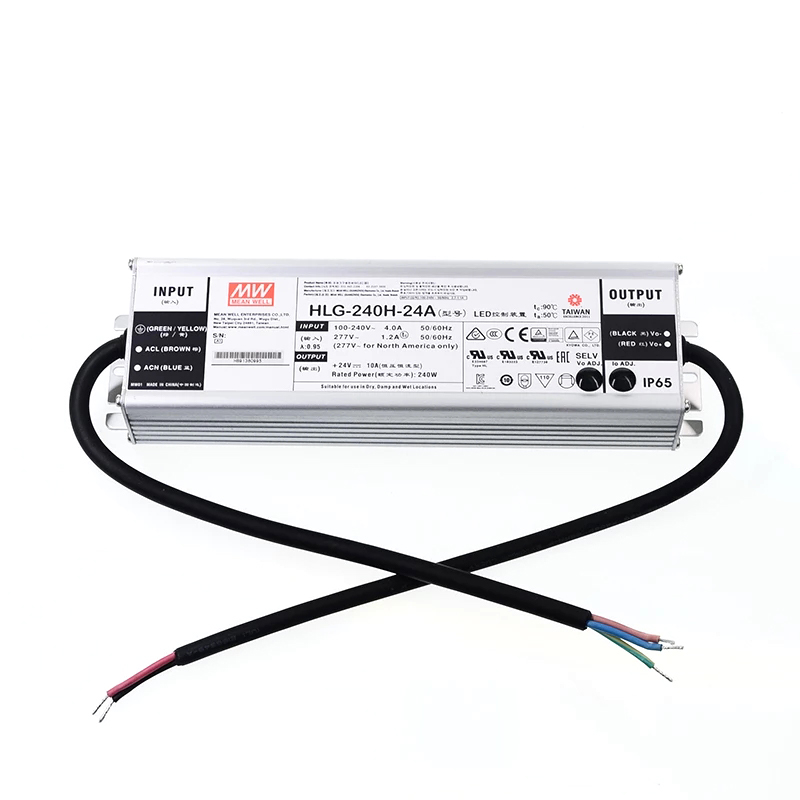

HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver

HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver - HLG-240H-24A | StepperOnline CA
HLG-240H-24A MEANWELL 240W 10A 24V Constant Voltage + Constant Current LED Driver
0 reviews - Write a review
$63.96
5 + $62.09
10 + $60.33
50 + $58.66
100 + $57.09
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: HLG-240H-24A
  • Gross Weight: 1.30kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 10A output
  • AC input voltage range: 127 ~ 431VAC
  • Rated power: 240W
  • Constant Voltage + Constant current mode output
  • Metal housing with class Ⅰ
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3in 1 dimming
  • Typical lifetime > 62000hours
  • 7 years warranty
  • Io and Vo adjustable through built-in potentiometer

Applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "HL" for use in Class Ⅰ, Divsion 2 hazardous(Classified) location
Electrical Specification
Efficiency(%) 92.5%
Max. Output Current(A) 10
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 244.2 x 68 x 38.8
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 90 - 305 / 127 - 431
Output Voltage(VDC) 24
PFC Function Yes
Power Type LED Driver
Power(W) 240
Physical Specification
Inventory Method Shared Inventory
File Size
HLG-240H.pdf 1.21MB Download
