HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter

HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
Pre-order
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter - HSS-25-50-I-D14 | StepperOnline CA
HSS-25-50-I-D14
Frame Size(mm)Φ107
Gear Ratio(xx:1)50
Input Shaft Diameter(mm)14
Gearbox Length(mm)49
Question

Downloads

Harmonic_Gearbox_User_Manual.pdfPDF · 1.69MBHSS-25-50-I-D14.stpSTP · 931.03KBLog in to downloadHSS-25-50-I-D14_Full_Datasheet.pdfPDF · 193.88KB
Same series
ModelFrame Size(mm)Gear Ratio(xx:1)Input Shaft Diameter(mm)Gearbox Length(mm)PriceStock
HSS-14-100-I-D8Φ73100836C$322.03Backorder
HSS-14-50-I-D8Φ7350836C$322.03Backorder
HSS-17-100-I-D8Φ79100839C$355.92Backorder
HSS-17-50-I-D8Φ7950839C$355.92Backorder
HSS-20-100-I-D14Φ931001441C$372.87Backorder
HSS-20-50-I-D14Φ93501441C$372.87Backorder
HSS-25-100-I-D14Φ1071001449C$389.82Backorder
HSS-25-50-I-D14Φ107501449C$389.82Backorder
HSS-32-100-I-D19Φ1381001960C$457.62Backorder
HSS-32-50-I-D19Φ138501960C$457.62Backorder
HSS-40-100-I-D19Φ1601001970.5C$627.10Backorder
HSS-40-50-I-D19Φ160501970.5C$627.10Backorder
HSS Series Harmonic Drive Gearbox Φ107mm Ratio 50:1 Backlash 20arcsec 14mm Input Diameter
This harmonic gearbox has a gear ratio of 50, a frame size of Φ107mm and an input shaft diameter of ... Read More
0 reviews • Write a review
from
C$389.82
5 + C$376.49
10 + C$364.05
50 + C$352.39
100 + C$341.48

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

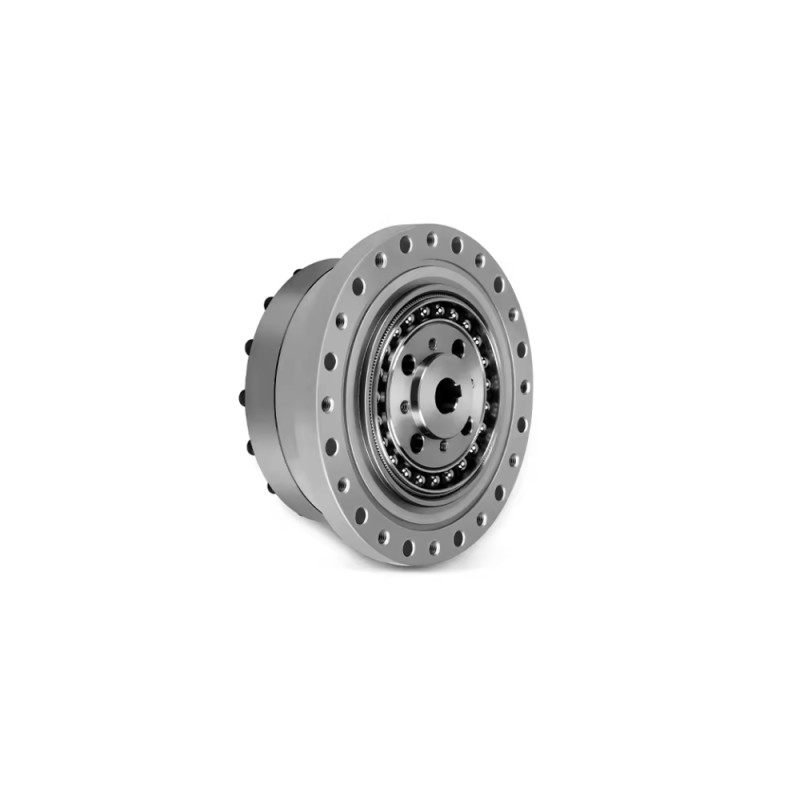

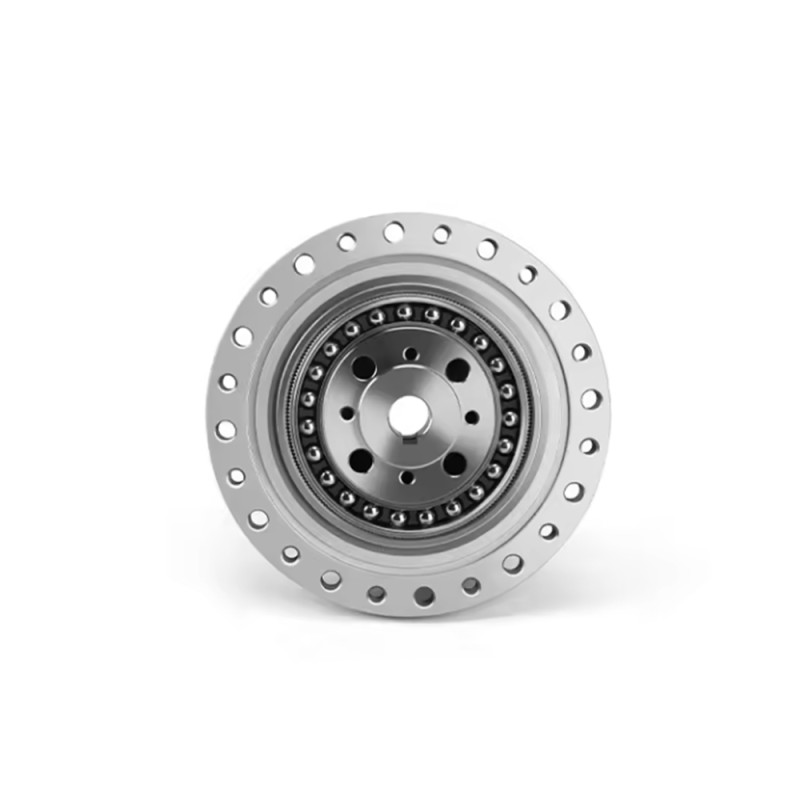

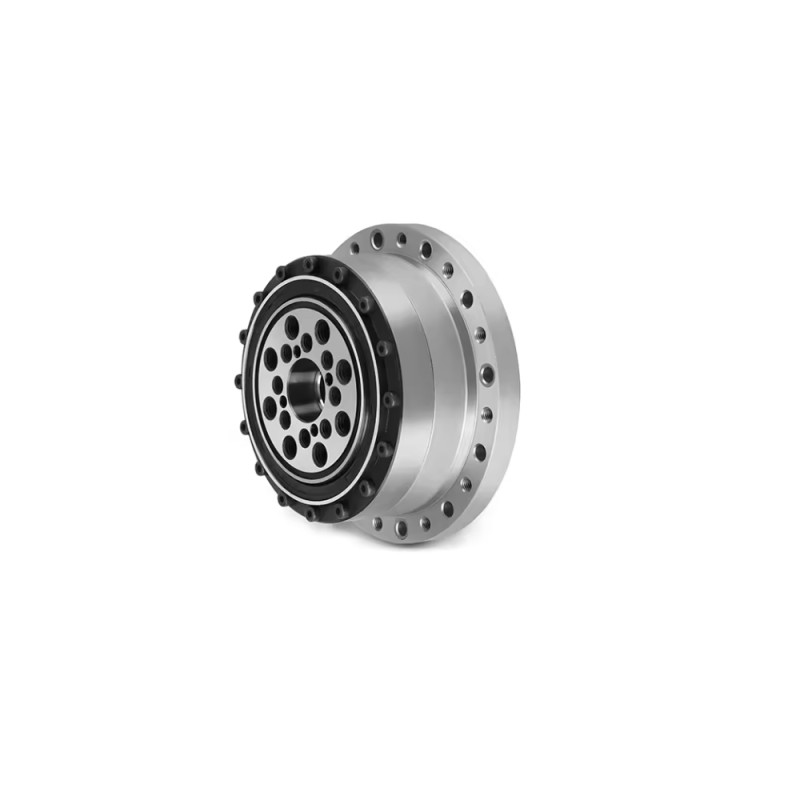

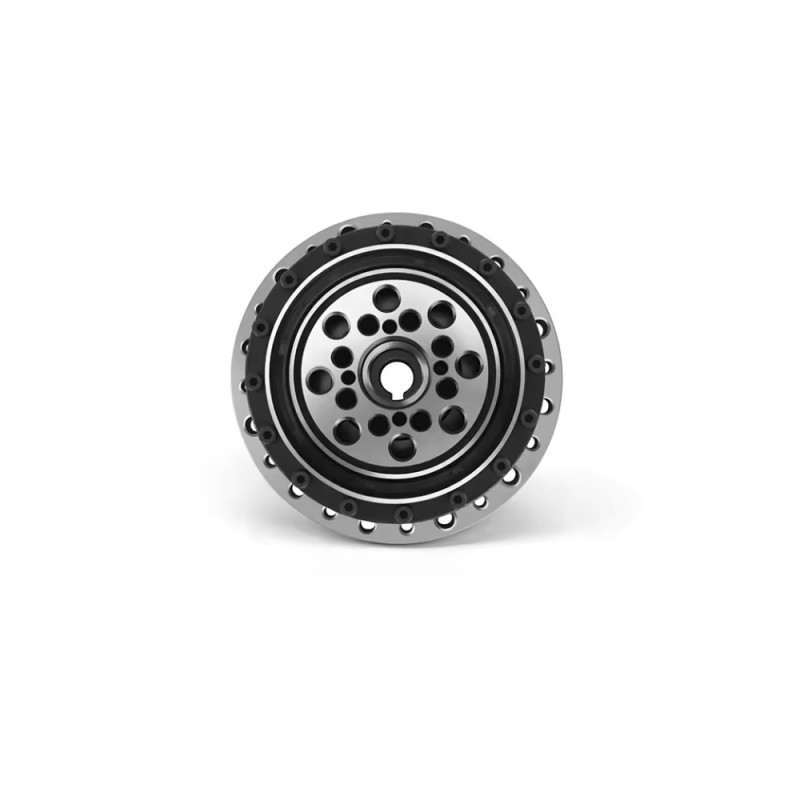

This harmonic gearbox has a gear ratio of 50, a frame size of Φ107mm and an input shaft diameter of 14mm and a maximum backlash of 20arcsec.
The HSS series harmonic gearboxes have a flexspline structure in the form of a standard drum and highly rigid, full-roller cross bearings that can be used directly to support external loads and are characterized by high functionality, high speed and high mobility.
The simple structure with high rigidity and low backlash makes it possible to withstand high torques and achieve excellent positioning and rotation accuracy. This harmonic gearbox is widely used in robots, CNC machine tools, textile machines, printing machines, packaging machines and other fields.

Key Feartures

  • Coaxial Input and Output
  • Excellent positioning and rotation accuracy
  • Cup-shaped flexspline and high rigidity full roller cross bearing
  • LS tooth profile design, high transmission efficiency and low noise
  • Compact and simple structure design with low to zero backlash, directly connected to the motor and easy to install
  • Adopting self-developed CMP heat treatment process and 1um trajectory fine grinding with high precision and good reliability

Gearbox Specifications

  • Part Number: HSS-25-50-I-D14
  • Gearbox Type: Harmonic Gearbox
  • Gear Material: Alloy Steel
  • Gear Ratio: 50:1
  • Backlash at No-load: <=20arcsec
  • Rated Torque(Input Speed 2000rpm): 39.00Nm(5522.85oz.in)
  • Moment Permissible Torque: 186.00Nm(26339.77oz.in)
  • Peak Start-stop Torque: 98.00Nm(13877.94oz.in)
  • Maximum Input Speed Allowed: 5600rpm
  • Average Input Speed Allowed: 3500rpm
  • Maximum Axial Load: 3.84KN
  • Maximum Radial Load: 9.6KN
  • Lifetime: 10000hours

Physical Specifications

  • Frame Size: Φ107mm
  • Gearbox Length: 49mm
  • Input Shaft Type: Keyway
  • Input Shaft Diameter: Φ14mm

Operating Environment(Tj = 25℃/77℉)

  • Amient temperature: 0-40℃
  • No splashing of water or oil
  • Do not expose to corrosive or explosive gas
  • No dust such as metal powder
Electrical Specification
Average Input Speed Allowed(rpm) 3500
Rated Torque/2000rpm(Nm) 39.00
Physical Specification
Backlash at No-load <=20 arcsec
Frame Size(mm) Φ107
Gear Material Alloy Steel
Gear Ratio(xx:1) 50
Gearbox Length(mm) 49
Gearbox Type Harmonic Gearbox
Input Shaft Diameter(mm) 14
IP Rating 65
Product Series HSS
