90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor

90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 5IK90GU-AFT/5GU10RC | StepperOnline CA
5IK90GU-AFT/5GU10RC
Output Shaft TypeHollow
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.4
Question

Downloads

5IK90GU-XXFT_5GUXXRX_manual.pdfPDF · 1.73MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-S/S3FT/5GU180RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU20RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU20RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU30RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU30RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU50RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU50RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK90GU-AFT/5GU100RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU100RC-SALEHollow1PH 110VAC90 x 901.4C$112.17In stock
5IK90GU-AFT/5GU100RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU10RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU10RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU15RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU15RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU180RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU180RC-SALEHollow1PH 110VAC90 x 901.4C$112.17In stock
5IK90GU-AFT/5GU180RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU20RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU20RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU30RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU30RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU50RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU50RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-CFT/5GU100RCHollow1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU100RTKeyway1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU10RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU10RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU15RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU15RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU180RCHollow1PH 220VAC90 x 900.64C$110.42In stock
View all in category
90W 110VAC 60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
This 90x90mm hollow shaft single-phase AC induction gear motor is powered by 110VAC and has a gear r... Read More
0 reviews • Write a review
from
C$107.52
5 + C$104.63
10 + C$101.89
50 + C$99.30
100 + C$96.83

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 90x90mm hollow shaft single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 10, a torque of 4.60Nm(651.41oz.in) and a speed of 135rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK90GU-AFT/5GU10RC
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 90W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.40A
  • Gear Ratio: 10:1
  • Speed: 135rpm
  • Torque: 4.60Nm(651.41oz.in)

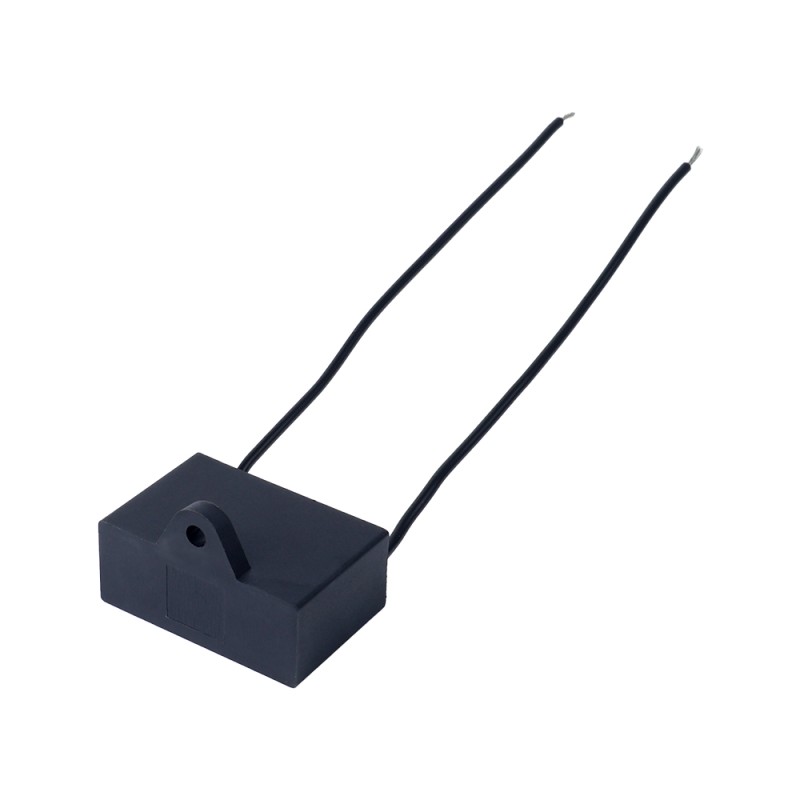

  • Capacitor: 20.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 278mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ17mm
  • Weight: 6.4kg

Wiring

Electrical Specification
Current(A)1.4
Frequency(Hz)60
Input Voltage(V)1PH 110VAC
Output Power(W)90
Speed(rpm)135
Torque(Nm)4.6
Physical Specification
Frame Size(mm)90 x 90
Gear Ratio(xx:1)10
Gearbox TypeRight Angle Gearbox
Output Shaft TypeHollow
