LK60-40DL10S3-210
Input Shaft Diameter(mm)8
Input Shaft Length(mm)25
Stroke Length(mm/ft)210/0.69
Max. Speed(mm/s) 500
Question

Downloads

LK60-40DL10S3-210.stepSTEP · 4.62MBLog in to downloadLK60_User_Manual.pdfPDF · 1009.54KBLK60-40DL10S3-210_Full_Datasheet.pdfPDF · 148.6KB
Same series
ModelInput Shaft Diameter(mm)Input Shaft Length(mm)Stroke Length(mm/ft)Max. Speed(mm/s) PriceStock
LK60-23DL103-510821510/1.67166C$225.50In stock
LK60-40DL10S3-110825110/0.36500C$165.02In stock
LK60-40DL10S3-210825210/0.69500C$174.81In stock
LK60-40DL10S3-310825310/1.02500C$198.72In stock
LK60-40DL10S3-410825410/1.35500C$208.80In stock
LK60-40DL10S3-410-SALE825410/1.35500C$203.97In stock
LK60-40DL10S3-510825510/1.67500C$225.50In stock
LK86-24DL103-510830510/1.67166C$286.56In stock
LK86-24DL103-510-SALE830510/1.67166C$279.94In stock
LK86-60DL10S3-2101430210/0.69500C$230.12In stock
LK86-60DL10S3-3101430310/1.02500C$248.83In stock
LK86-60DL10S3-4101430410/1.35500C$271.01In stock
LK86-60DL10S3-5101430510/1.67500C$286.56In stock
LK86-60DL10S3-6101430610/2.00500C$318.81In stock
LK86-60DL10S3-8101430810/2.66500C$381.03In stock
LK60 Series Ball Screw Driven Max. Horizontal/Vertical Payload 20kg/6kg Stroke 210mm
This LK60 series ball screw driven dustproof linear actuator offers a maximum horizontal payload o... Read More
0 reviews • Write a review
from
C$174.81
5 + C$169.71
10 + C$164.89
50 + C$160.36
100 + C$156.05

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

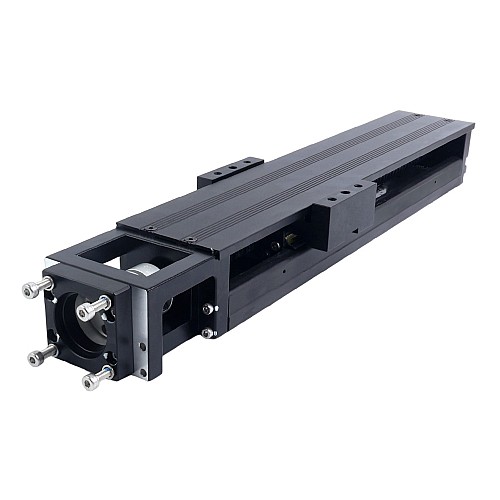

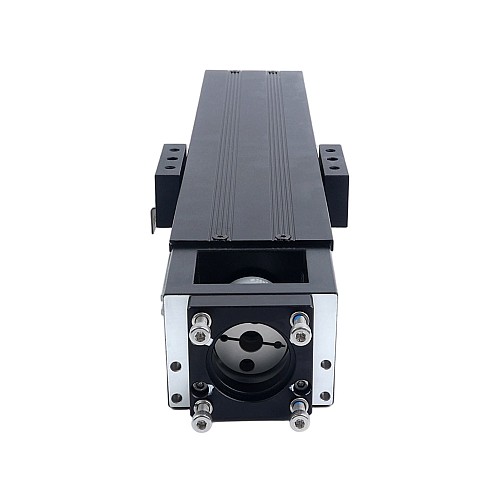

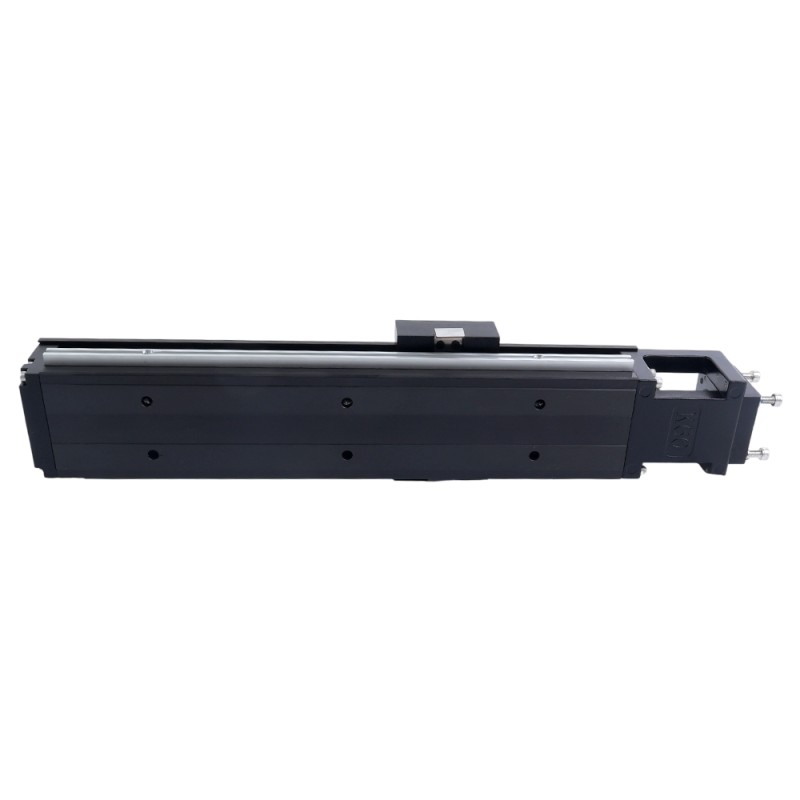

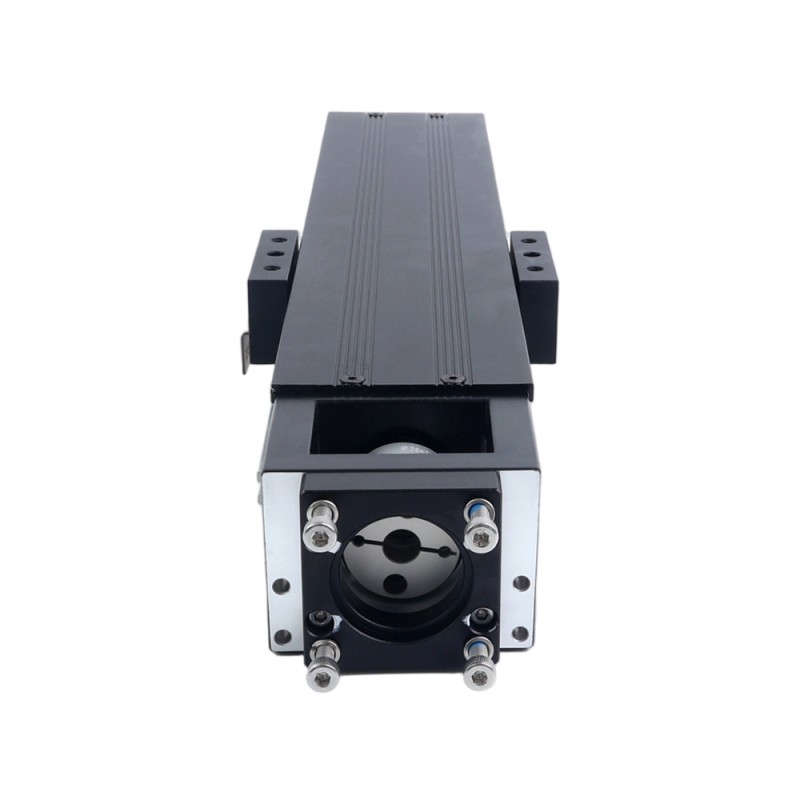

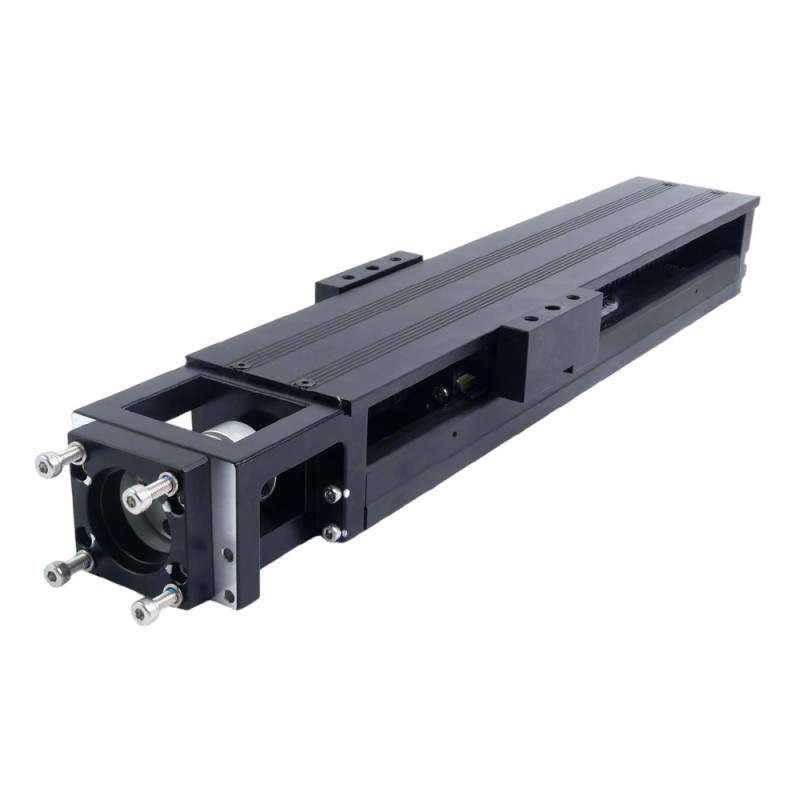

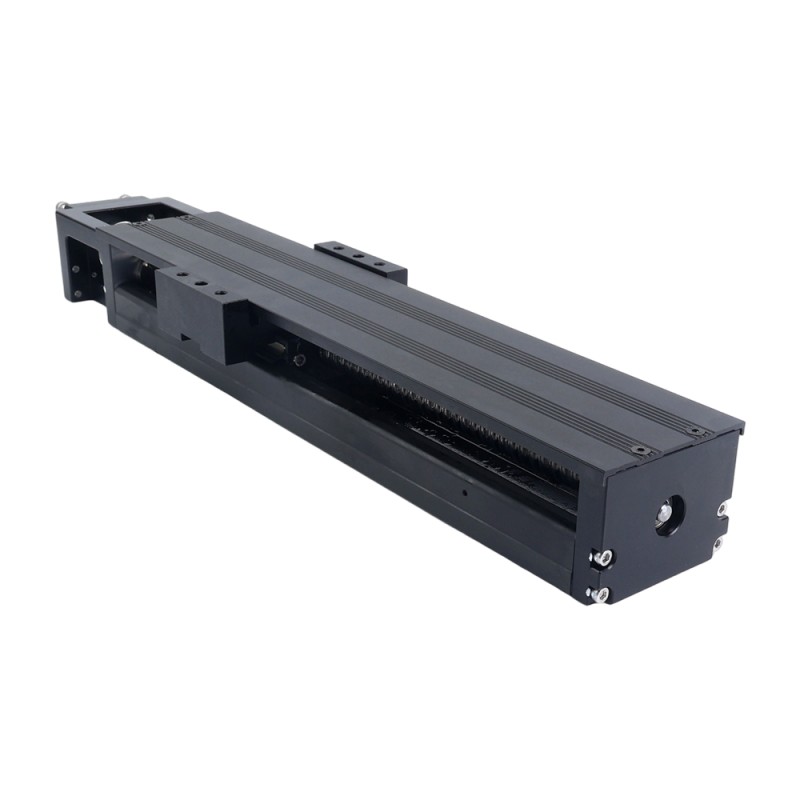

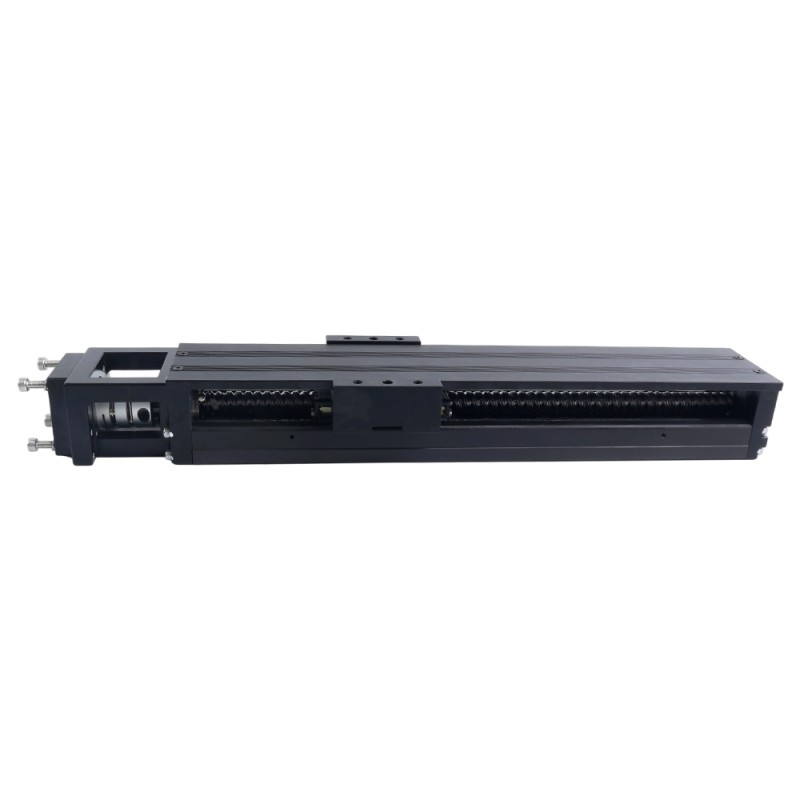

This LK60 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 20kg(44.09lb) and maximum vertical payload of 6kg(13.23lb), a stroke length of 210mm(0.69ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • Part Number: LK60-40DL10S3-210
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.033ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Maximum Horizontal Payload: 20kg(44.09lb)
  • Maximum Vertical Payload: 6kg(13.23lb)
  • Rated Thrust: 170N

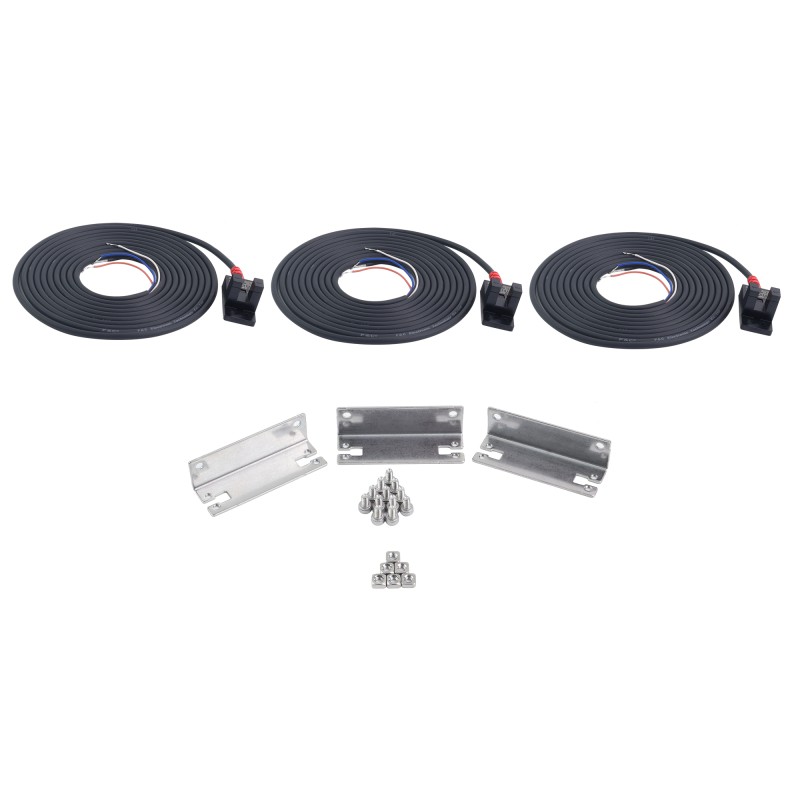

  • Sensor Type: NPN
  • Number of Sensors：3
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: 40mm Servo Motor(100W)
  • Stroke Length: 210mm(0.69ft)
  • Input Shaft Length: 25mm
  • Input Shaft Diameter: 8mm
Physical Specification
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 25
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 20/44.09
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Max. Vertical Payload(kg/lb) 6/13.23
Motor Mounting Flange 40mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 170
Stroke Length(mm/ft) 210/0.69
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

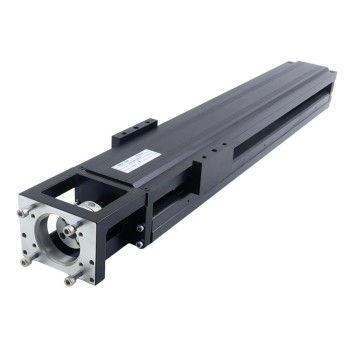

LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 410mm
