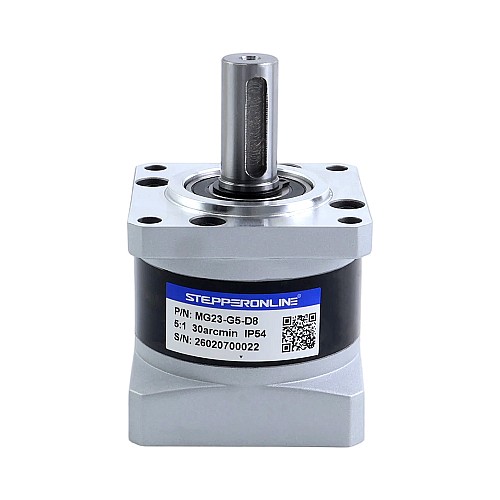

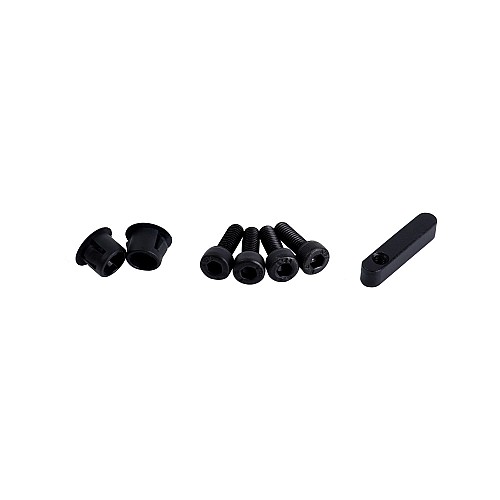

MG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor

0 reviews - Write a review

C$28.40

5 + C$27.47

10 + C$26.58

50 + C$25.77

100 + C$24.98

In Stock: 10000
Model: MG23-G5-D8
Gross Weight: 0.73kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

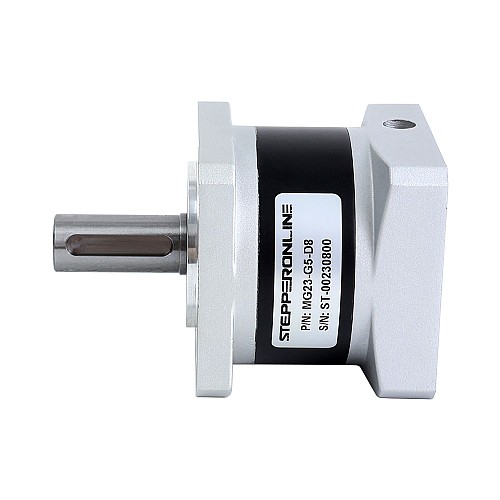

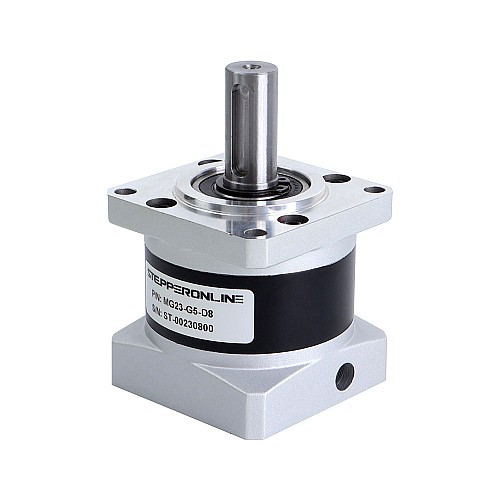

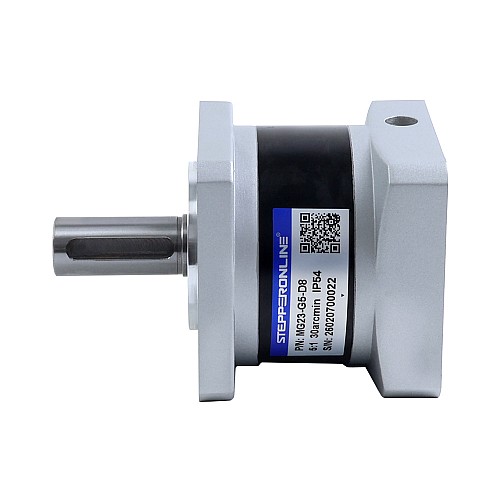

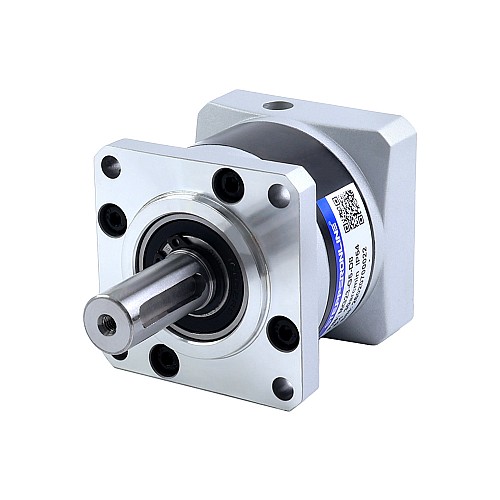

This high-precision planetary gearbox is belong to MG series gearbox, with gear ratio 5:1 and a maximum 30arc-min backlash. Different with the EG series' steel gears, MG series' gears are made of powder metallurgy. It's an excellent choice for applications that require good accuracy but low cost.

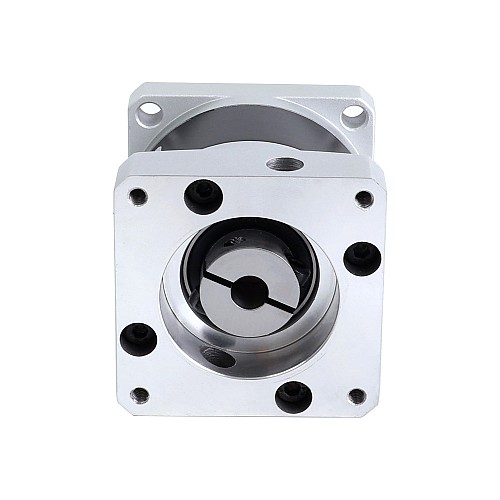

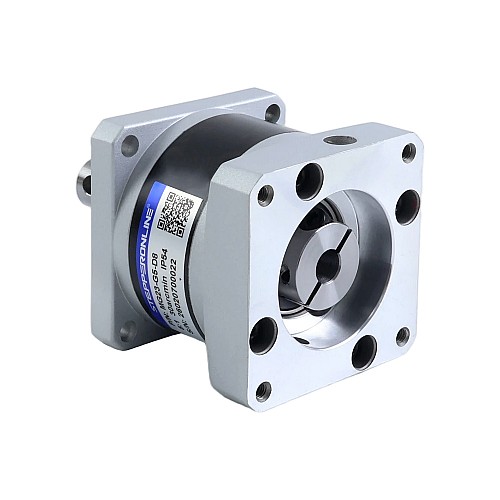

This inline planetary gearbox built-in an input shaft coupling which can match standard 8mm diameter short shaft of Nema 23 stepper motor, brushless dc motor and brushed dc motor.
One of the matchable motor is 23HS30-2904S. For other motors, please contact our technical support to custom the motor shaft.

Gearbox Specifications

Part Number: MG23-G5-D8
Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 5:1
Efficiency: 90%
Rotor Inertia: 0.13kg·cm²
Backlash at No-load: <=30arcmin
Max.Permissible Torque: 25Nm(221.27lb-in)
Moment.Permissible Torque: 50Nm(442.54lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000h

Physical Specifications

Frame Size: 57 x 57mm
Gearbox Length: 55.5mm
Output Shaft Type: Key way

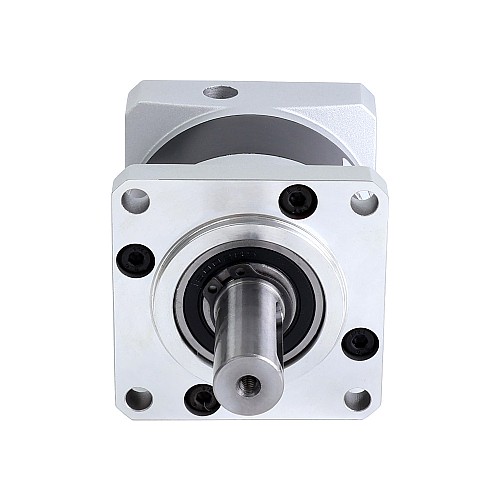

Output Shaft Diameter: Φ14mm
Output Shaft Length: 34mm
Input Shaft Diameter: Φ8mm
Matching Motor's Input Shaft Length: 8-14mm

This MG series gearboxes are only suitable for short shaft motors with a shaft length of 8-14mm.
If you need standard shaft(21.5-25mm) nema 23 stepper motors, please choose MGL series model: MGL23-G5-D8

Physical Specification
Backlash at No-load	<=30arcmin
Frame Size(mm)	57 x 57
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	5
Gearbox Length(mm)	55.5
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	8 - 14
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 23 Stepper Motor
Output Shaft Diameter(mm)	14
Output Shaft Length(mm)	34
Output Shaft Type	Keyway
Product Series	MG
Weight(g)	654
