MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for 5mm Shaft Standard Nema 17 Stepper Motor

0 reviews - Write a review

C$26.82

5 + C$25.96

10 + C$25.16

50 + C$24.41

100 + C$23.68

In Stock: 10000
Model: MGL17-G50
Gross Weight: 0.45kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

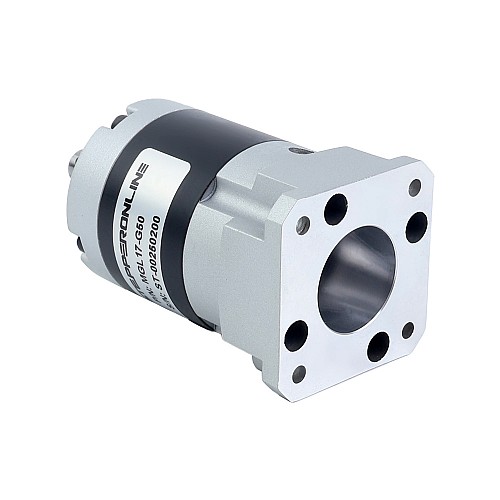

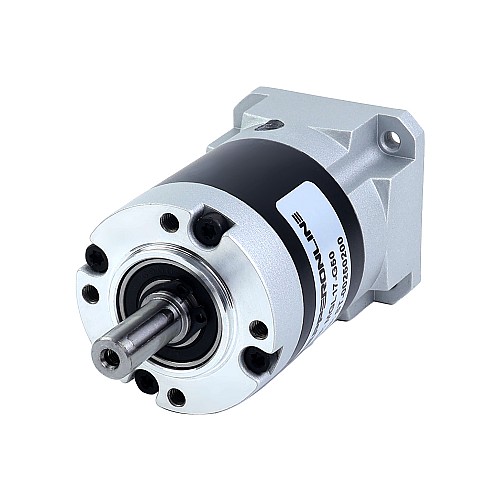

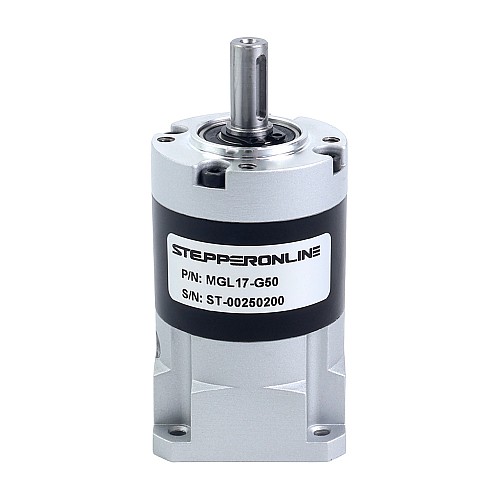

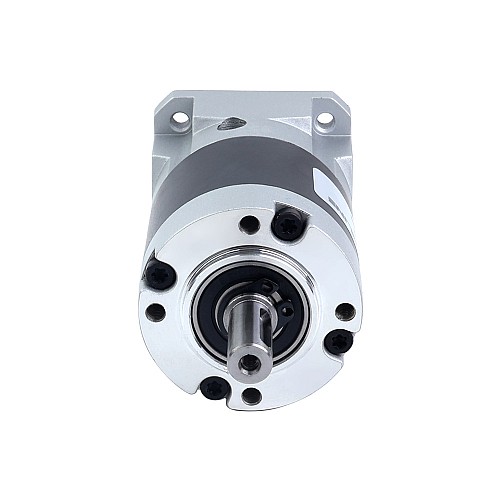

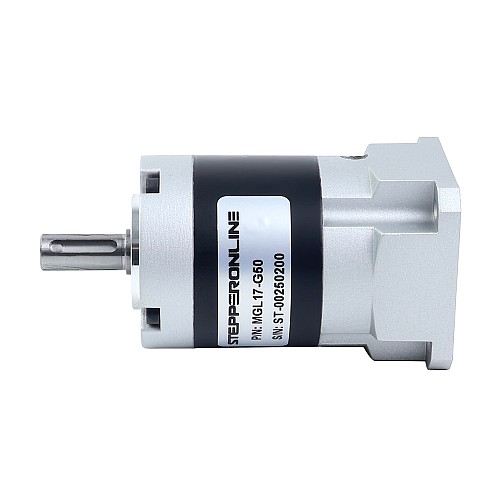

The MGL series high-precision planetary gearbox features a gear ratio of 50:1 and a maximum backlash of 45arc-min. Different with MG series gearboxes, the MGL series is designed to accommodate standard Nema 17 motors with standard shafts. This allows for more flexibility in the motor matching gearbox.

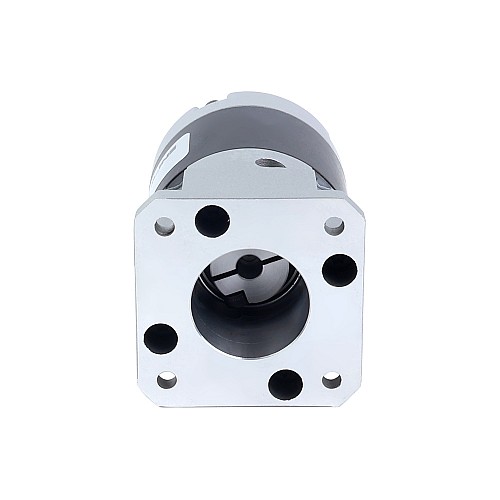

This inline planetary gearbox comes with a built-in input shaft coupling, making it compatible with standard 5mm diameter standard shafts of Nema 17 stepper motors, brushless DC motors, and brushed DC motors.

Gearbox Specifications

Part Number: MGL17-G50
Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 50:1
Efficiency: 80%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=45arcmin
Maximum Permissible Torque: 10Nm(88.51lb-in)
Moment Permissible Torque: 20Nm(117.02lb-in)
Shaft Maximum Axial Load: 100N
Shaft Maximum Radial Load: 300N
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 66mm
Rated Input Speed: 1000rpm
Maximum Input Speed: 2000rpm
Output Shaft Type: KeyWay
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 21.5-25mm

This MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm.

Physical Specification
Backlash at No-load	<=45arcmin
Frame Size(mm)	42 x 42
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	50
Gearbox Length(mm)	66
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	21.5 - 25
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	21.5
Output Shaft Type	Keyway
Product Series	MGL
