MRVR030 Worm Drive Gearbox 40:1 Ratio Φ9mm Input Shaft with 56B14 Motor Input Flange

0 reviews - Write a review

C$33.21

5 + C$31.79

10 + C$30.47

50 + C$29.26

100 + C$28.13

In Stock: Pre-order
Model: MRVR030BB3-G40-D9
Gross Weight: 1.24kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

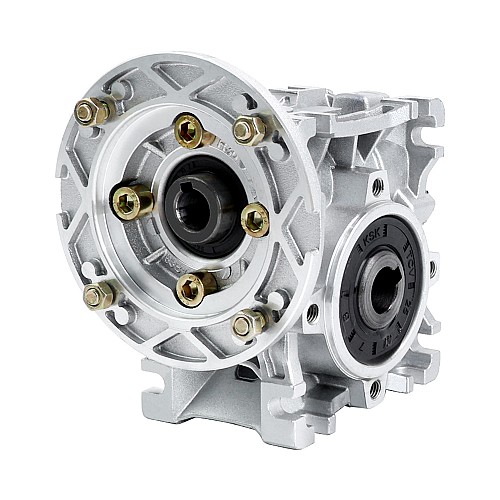

This MRVR030 series worm gearbox, with a gear ratio of 40 and an input shaft diameter of 9mm, is suitable for all standard IEC motors with frame 56B14.

Different from low-quality worm gearboxes on the market, STEPPERONLINE's worm gearboxes use the highest standard Tin Bronze Cu Sn12 Ni2 for the worm wheel and long-life synthetic oil (ISO VG 320) for the gearbox case. They also use high-standard bearings and oil seals. Compared with other gearboxes, the temperature rise of our gearbox is significantly reduced, while the lifespan and performance are increased by at least 30%.

This worm gearbox is widely used in mining, presses, mills, manufacturing and packaging industries, conveyors, tuning instruments, automatic gates, and many other applications.

Features

High torque and high strength
High-standard bearings and oil seals
Worm Wheel Material is Tin Bronze Cu Sn12 Ni2
Excellent mechanical strength and particularly lightweight
Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity

Gearbox Specifications

Part Number: MRVR030BB3-G40-D9
Gear Ratio: 40:1
Gearbox Type: Worm Gearbox
Gear Material: Alloy Steel
Recommend Input Speed: <=1500rpm
Output Type: Hollow Bore
Output Bore Diameter: Φ14mm
Output Bore Keyway Width: 5mm
Input Shaft Type: Key way
Input Shaft Diameter: Φ9mm
Input Shaft Keyway Width: 3mm
Housing Material: Aluminium Alloy
Worm Wheel Material: Tin Bronze Cu Sn12 Ni2
Lubricant: Synthetic Oil (ISO VG 320)
Weight: 1.2kg

Physical Specification
Gear Ratio(xx:1)	40
Gearbox Size	030
Gearbox Type	Worm Gearbox
Input Shaft Diameter(mm)	9
Inventory Method	Shared Inventory
Matching Motor Type	IEC Motor

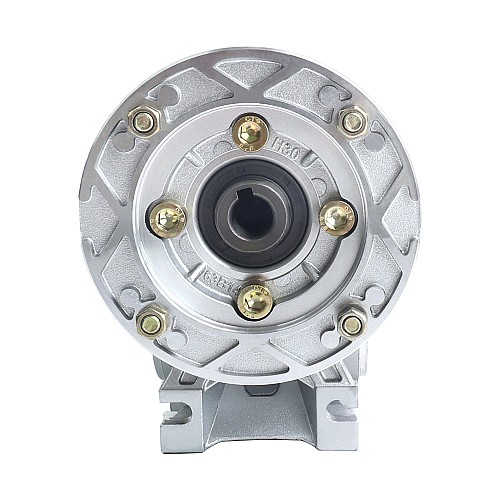

Motor Input Flange	56B14
Output Bore Diameter(mm)	14

Versatile Input Options:

Additional Input Shaft: Expand your gearbox configuration by adding an extra input shaft on the opposite side. (Image of gearbox with additional input shaft).
Motor Input (Default): Connect directly to a motor for convenient power transfer.
Shaft Input (Available): Accommodate shaft-driven applications with this adaptable option. (Distinguish models by the first letter: M for motor input, S for shaft input).

Additional Components for Customization:

Output Shaft, Flange, and Torque Arm: Purchase these components separately to tailor your gearbox setup precisely to your needs. (Image of gearbox components).

Color Options to Match Your Design:

Default Color: Gray.
Optional Colors: Silver and blue (Image of gearbox in different colors).

Flange Variety for Diverse Installations:

Round Flange (Default): The standard choice for most applications.
Square and Custom Input Mounting Flanges: Available upon request for specialized mounting requirements.

Installation Considerations:

Recommended Installation Type: B3 for optimal worm gearbox performance.
Customization Available: Contact us if you need a different installation type to suit your specific needs.
