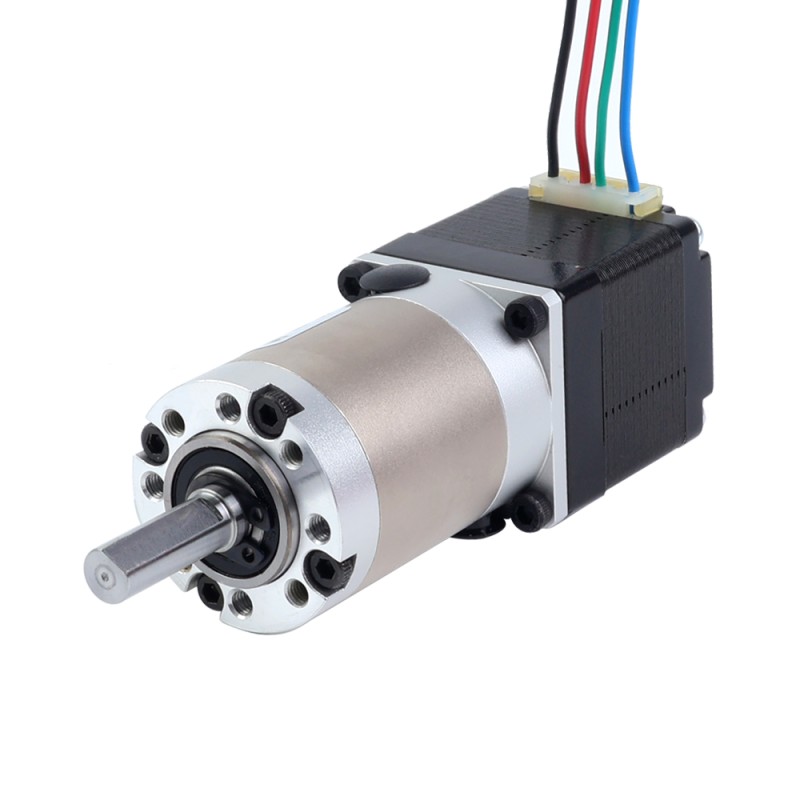

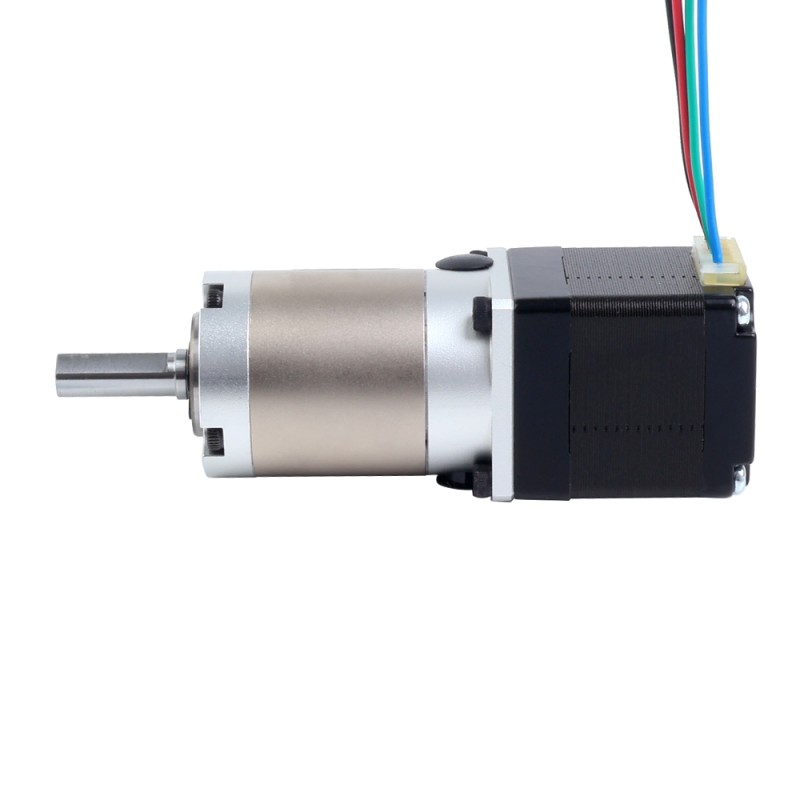

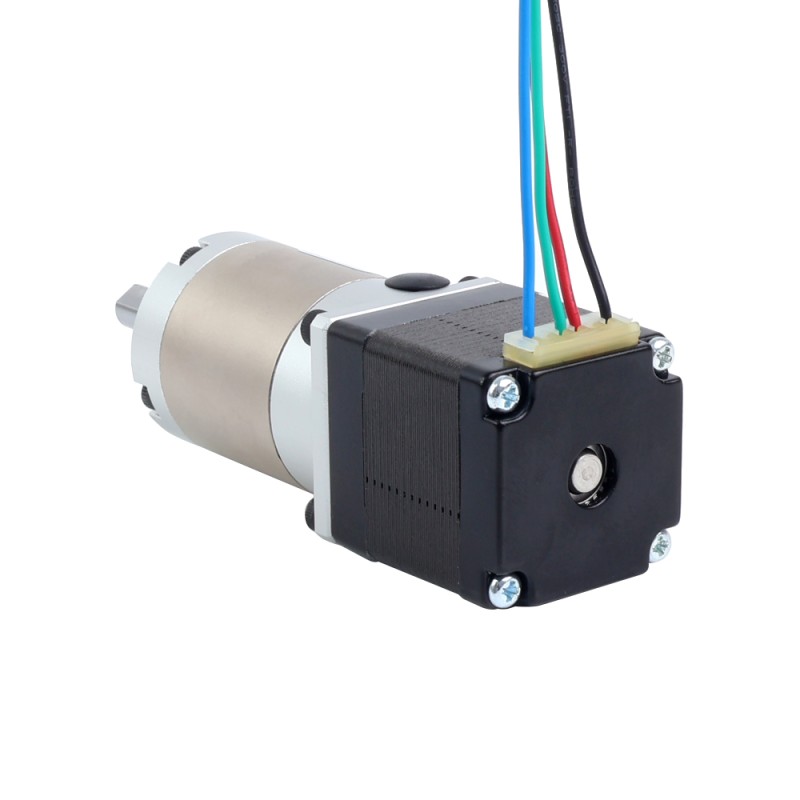

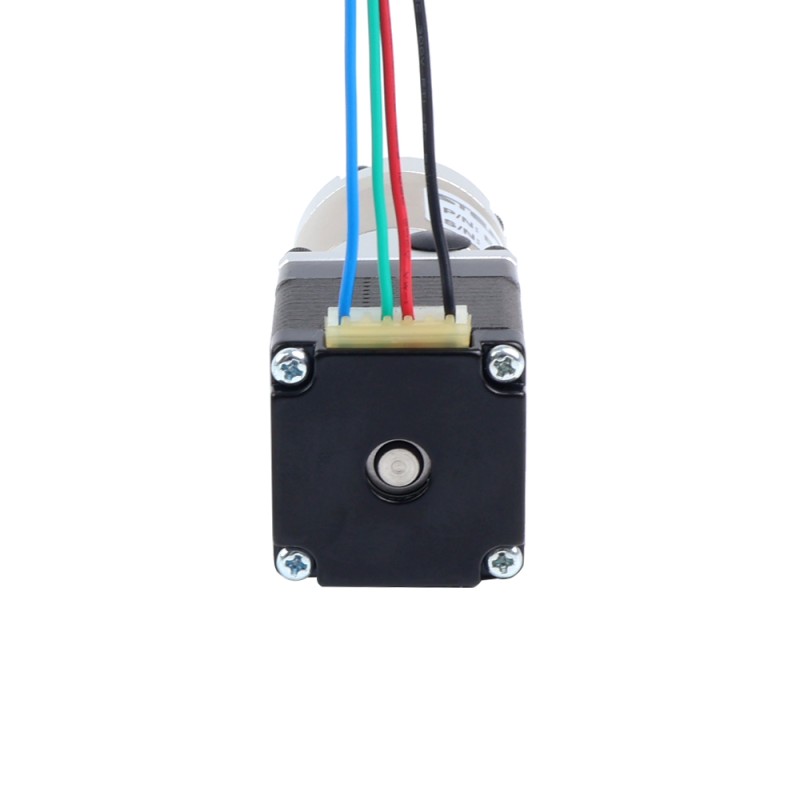

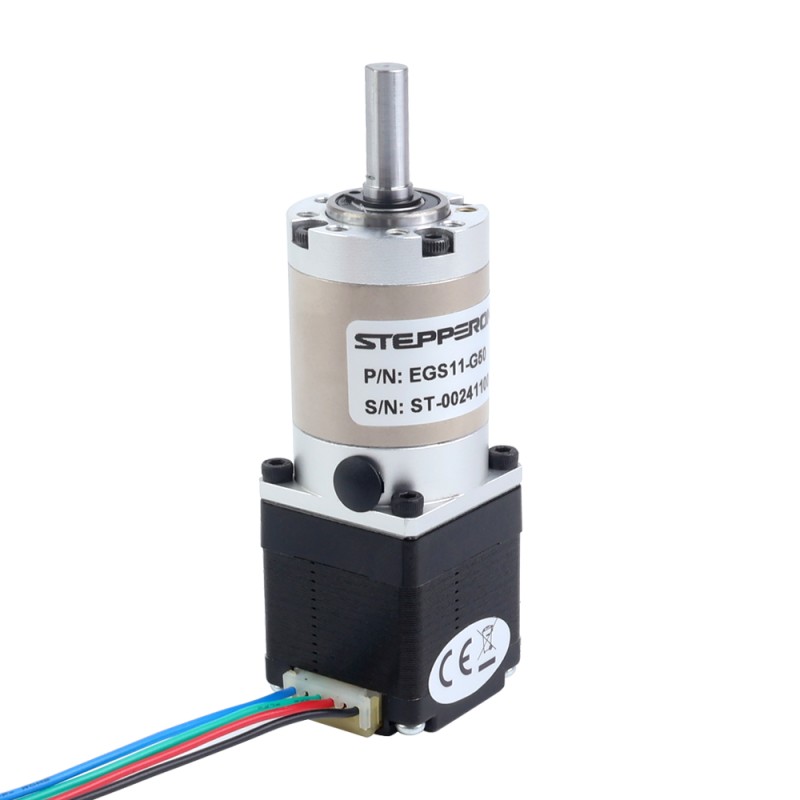

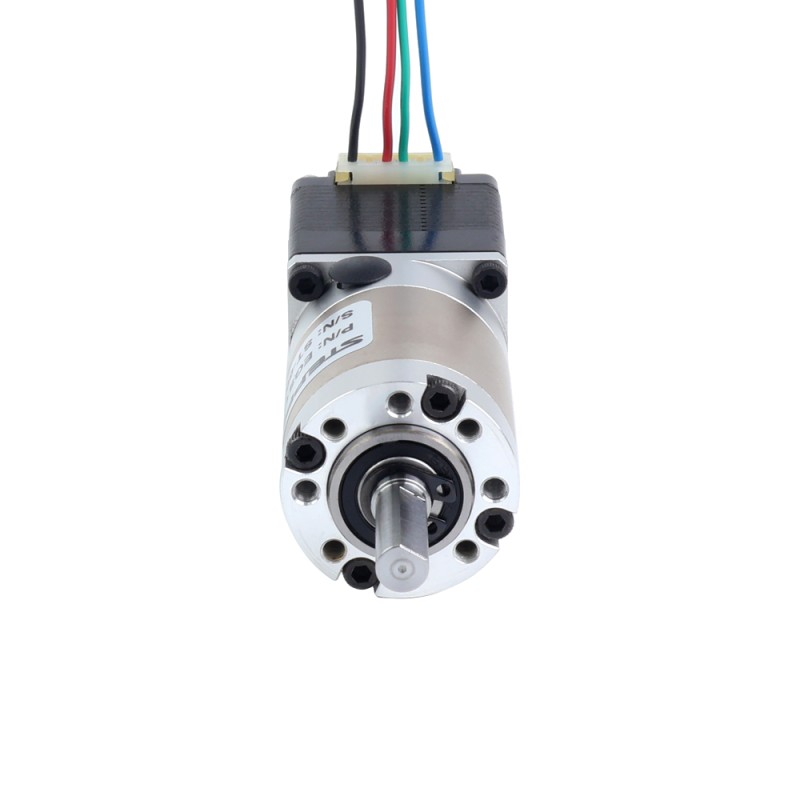

Name: Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox
Brand: STEPPERONLINE
SKU: 11HS12-0704S-EGS50
Price: 83.85 CAD
Availability: InStock

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox

11HS12-0704S-EGS50

Output Shaft TypeD

Single Shaft/Dual ShaftSingle Shaft

Frame Size(mm)Nema 11 (28 x 28)

Product TypeGeared Stepper Motor

Question

Downloads

11HS12-0704S-EGS50_Full_Datasheet.pdfPDF · 180.75KB

Same series

Model	Output Shaft Type	Single Shaft/Dual Shaft	Frame Size(mm)	Product Type	Price	Stock
11HS12-0704S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$68.11	In stock
11HS12-0704S-EGS100	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$99.59	In stock
11HS12-0704S-EGS20	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$83.85	In stock
11HS12-0704S-EGS5	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$68.11	In stock
11HS12-0704S-EGS50	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$83.85	In stock
11HS20-0674S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.59	In stock
11HS20-0704S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.15	In stock
11HS20-0704S-EGS100	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$100.64	In stock
11HS20-0704S-EGS20	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$84.90	In stock
11HS20-0704S-EGS5	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.15	In stock
11HS20-0704S-EGS50	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$84.90	In stock

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a h... Read More

0 reviews • Write a review

from

C$83.85

5 + C$77.49

10 + C$72.01

50 + C$67.27

100 + C$63.10

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 50:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 20arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

Part Number: 11HS12-0704S-EGS50
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.70A
Phase Resistance: 5.30ohms±10%
Inductance: 3.70mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 50:1
Efficiency: 94%
Backlash at No-load:<=20arcmin
Maximum Permissible Torque: 3.00Nm(424.83oz.in)
Moment Permissible Torque: 6.00Nm(849.67oz.in)

Physical Specification

Frame Size: 28 x 28mm
Motor Length: 33mm
Gearbox Length: 41mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 20mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.7
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.07
Inductance(mH)	3.7
Phase Resistance(ohms)	5.3
Physical Specification
Backlash at No-load	<=20 arcmin
Frame Size(mm)	Nema 11 (28 x 28)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft

Also Bought

Quickview

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio ..

from

C$83.85

Add to Cart

Add to Wish List Compare this Product

Quickview

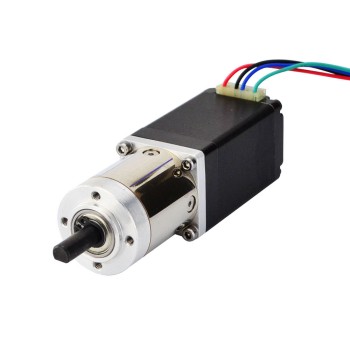

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox

This Nema 11 single shaft stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good..

from

C$51.49

Add to Cart

Add to Wish List Compare this Product

Quickview

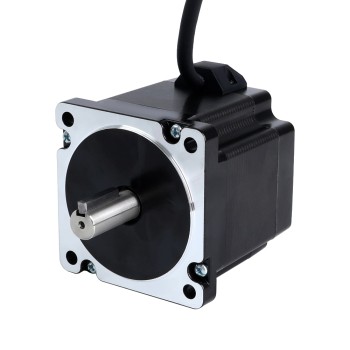

S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable

Electrical Specification Manufacturer Part Number: 34HS31-6004S1 Number Of Phase: 2 Step Angle: 1.8deg Holding Torque: 4.8Nm(679.74oz.in) Rate..

from

C$54.39

Add to Cart

Add to Wish List Compare this Product

Quickview

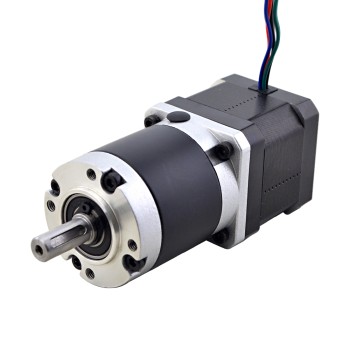

Nema 17 Stepper Motor L=39mm Gear Ratio 20:1 MG Series Planetary Gearbox

This Nema 17 size stepper motor is equipped with MG series high precision gearbox. The gear ratio is 20:1 and the Max. backlash is 50 arc minutes. It'..

from

C$41.86

Add to Cart

Add to Wish List Compare this Product

Quickview

5mm - 6mm Flexible Coupling 18x25mm CNC Stepper Motor Shaft Coupler

Shaft: 5mm - 6mm P/N: ST-FC02 Diameter: 18mm Length: 25mm Body Material: Aluminum Alloy..

from

C$1.58

Add to Cart

Add to Wish List Compare this Product

Quickview

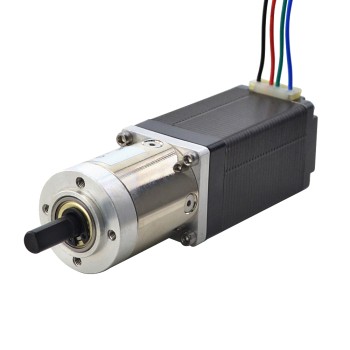

CN On Sale - Nema 11 Stepper Motor Bipolar L=55mm w/ Gear Ratio 19:1 Planetary Gearbox

This Nema 11 stepper motor with 55mm body, it's the highest motor in size of Nema 11, Integrated a planetary gearbox of 19.19:1 gear ratio. It's a goo..

from Save -33%

C$42.67 C$63.70

Add to Cart

Add to Wish List Compare this Product

Quickview

Nema 11 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket

Manufacturer P/N: ST-M3 The new designed NEMA 11 Stepper Motor Alloy Steel Mounting Bracket can match standard Nema 11 stepper motor, and also includ..

from

C$2.07

Add to Cart

Add to Wish List Compare this Product

Quickview

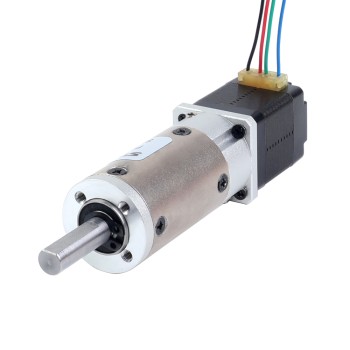

Nema 8 Stepper Motor Bipolar L=28mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox
