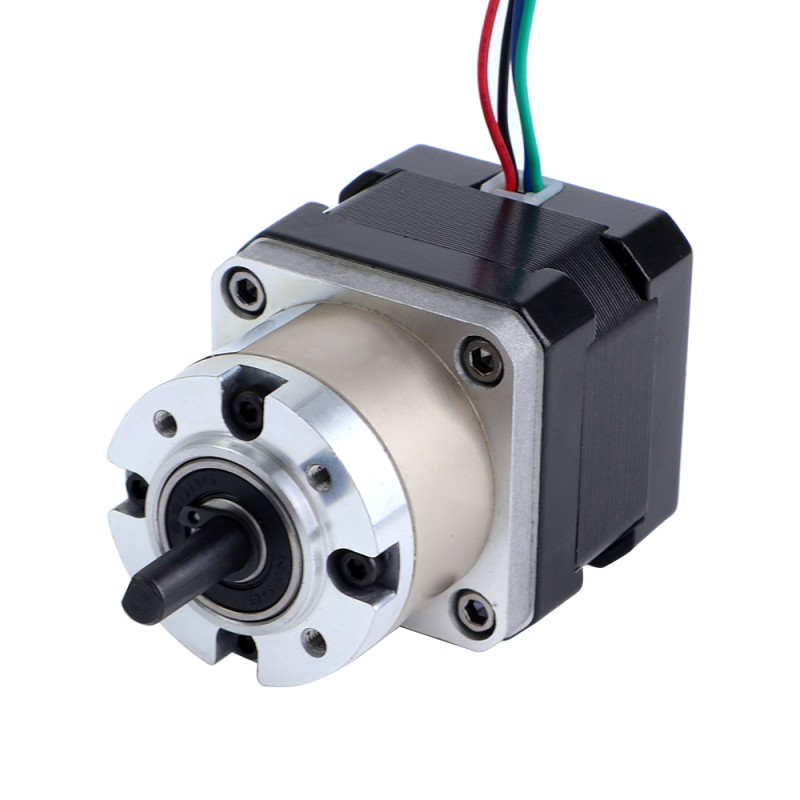

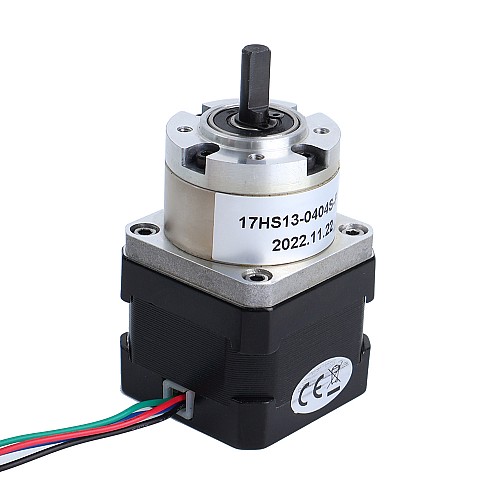

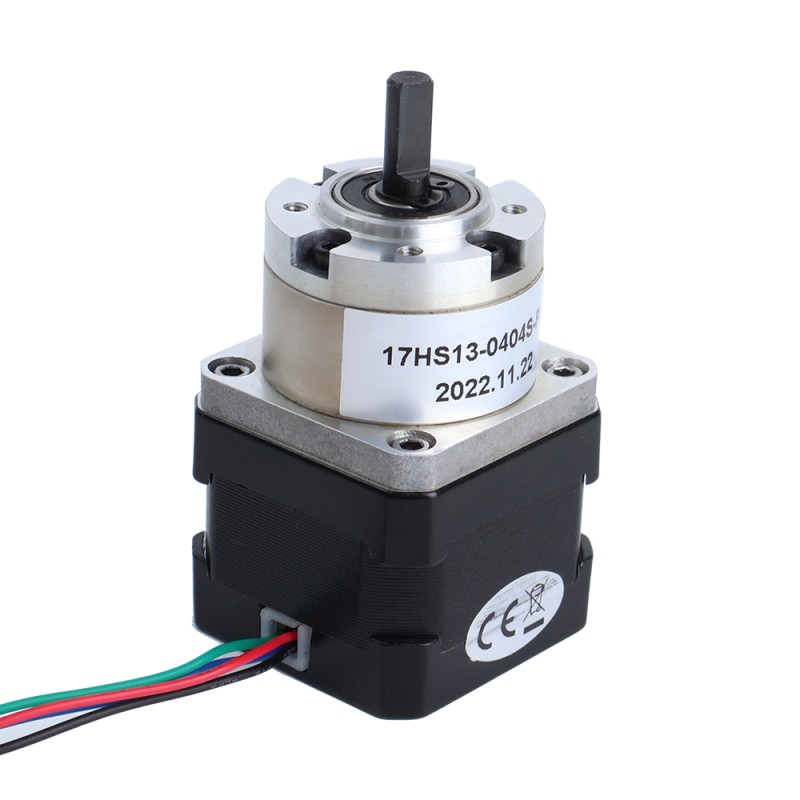

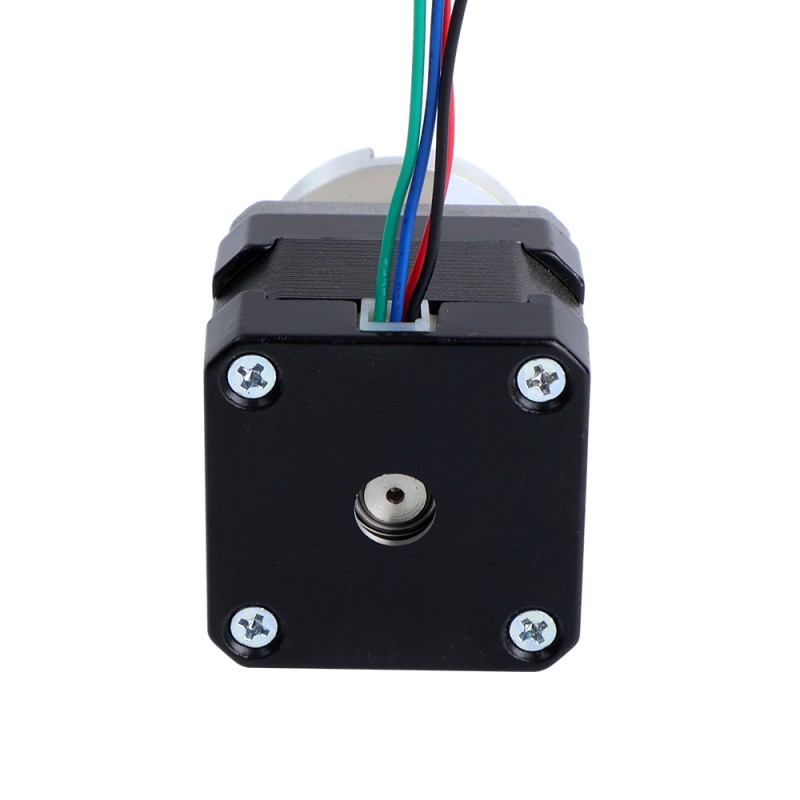

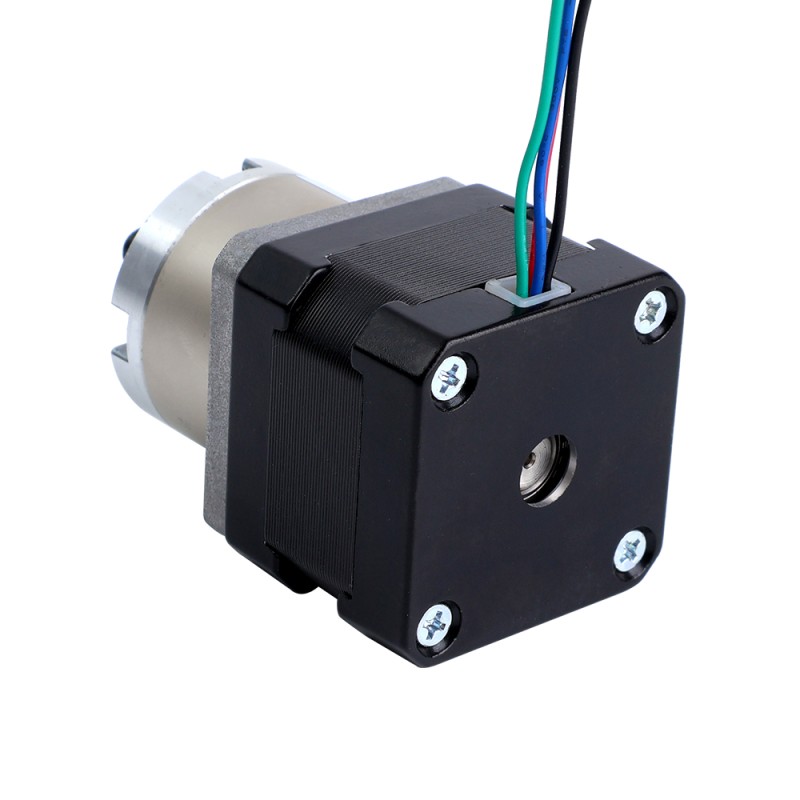

Nema 17 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 Planetary Gearbox with 300mm Cable & Connector

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HS13-0404S-PG5-C4
Gross Weight: 0.45kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 17 stepper motor with 33mm body length and 0.4A rated current, integrated a planetary gearbox of 5.18:1 gear ratio and connector. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS13-0404S-PG5-C4
Motor Type: Bipolar Stepper
Step Angle: 0.35 deg
Holding Torque without Gearbox: 25Ncm(31.2oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 27ohms
Inductance: 28.5mH ± 20%(1KHz)

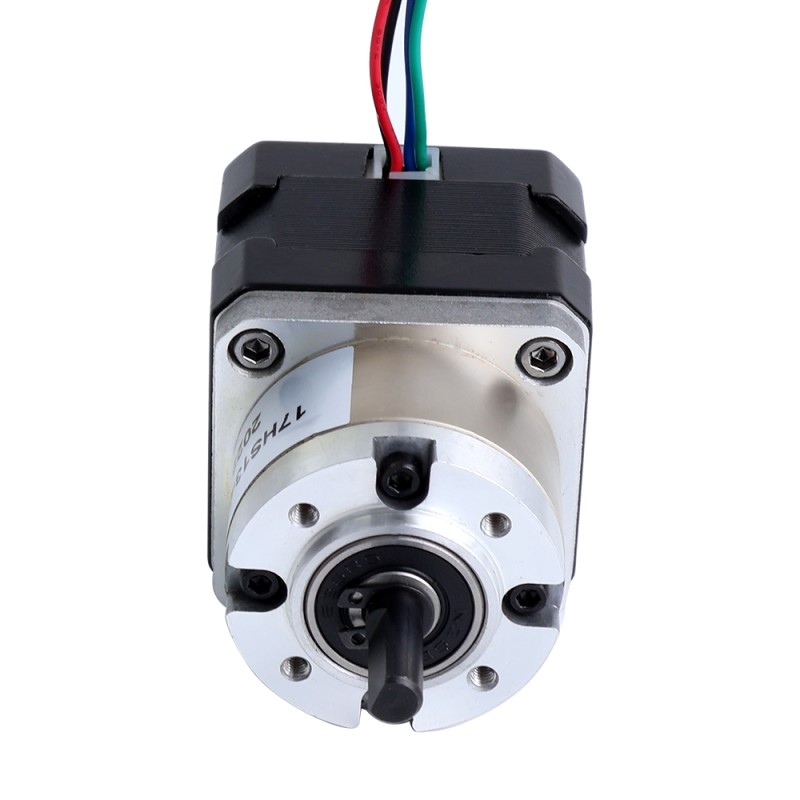

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18: 1
Efficiency: 90%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 2Nm(283oz.in)
Moment Permissible Torque: 4Nm(566oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

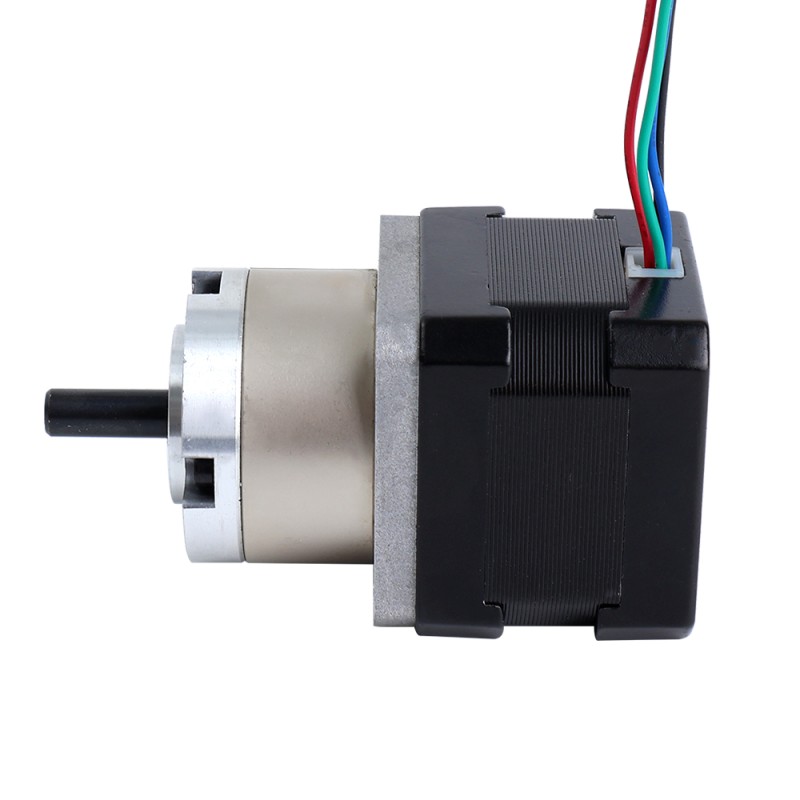

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 34mm
Gearbox Length: 27.3mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 300mm

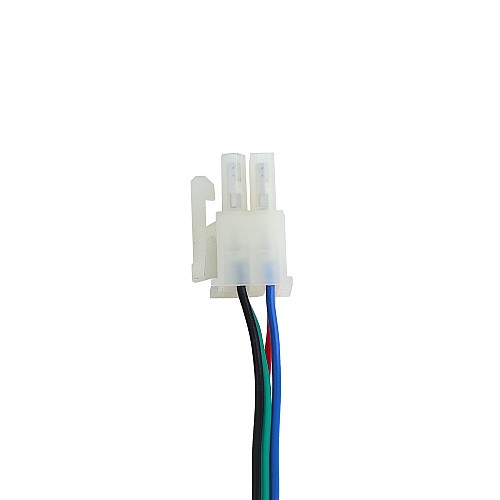

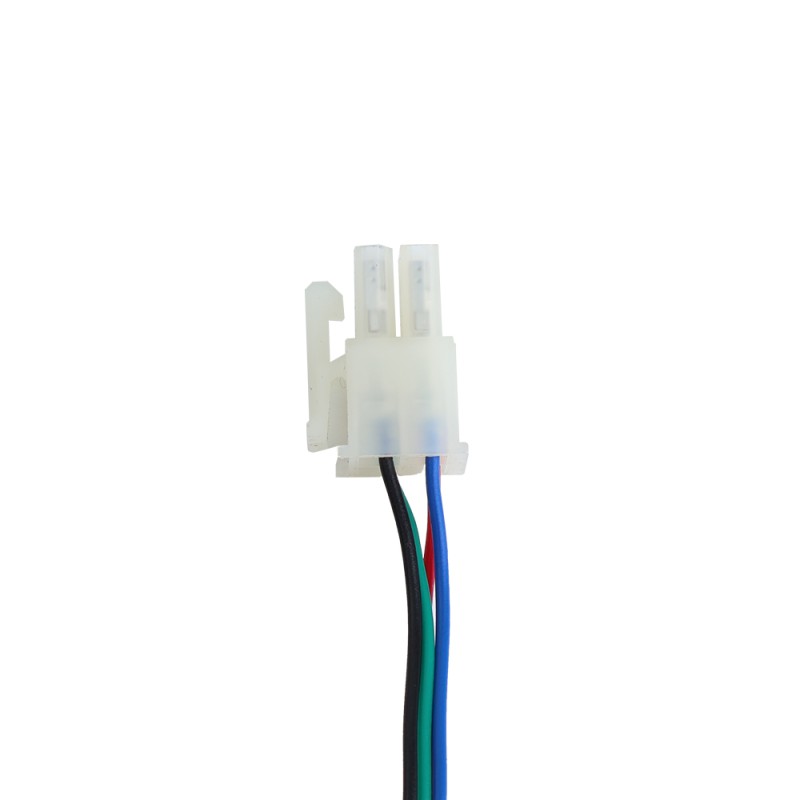

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS13-0404S-PG5.

Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.4
Holding Torque w/o Gearbox(N.m)	0.25
Inductance(mH)	28.5
Phase Resistance(ohms)	27
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	61.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
