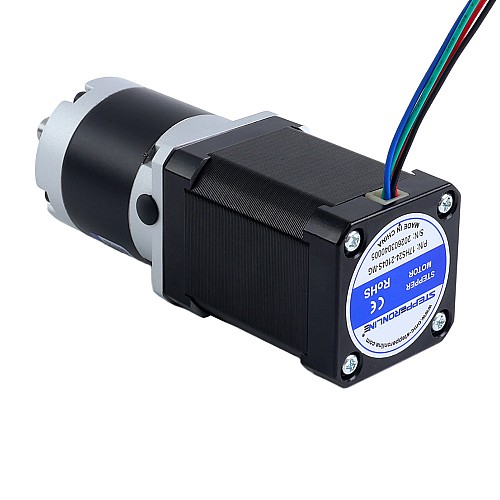

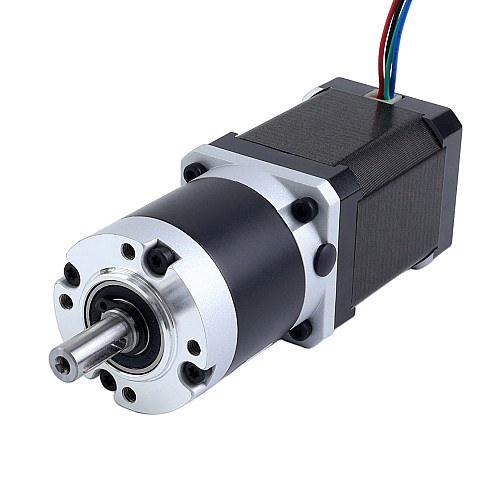

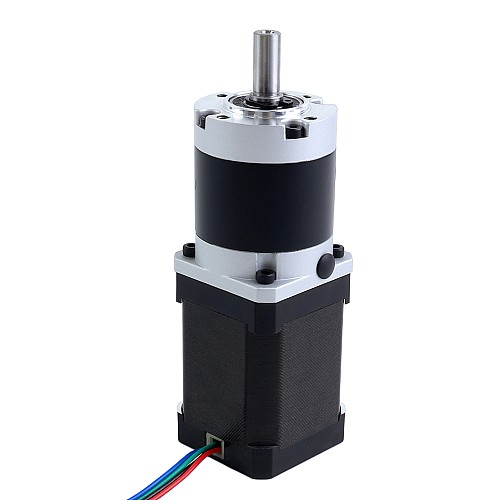

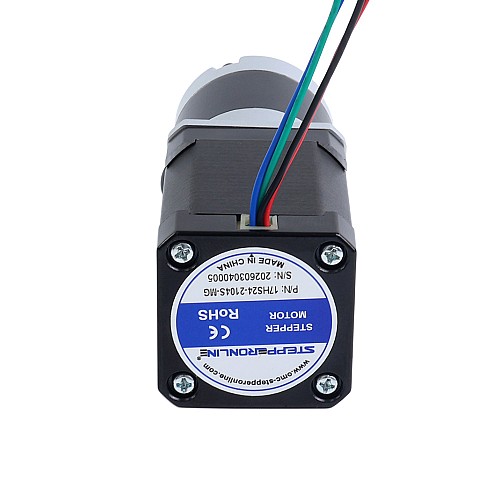

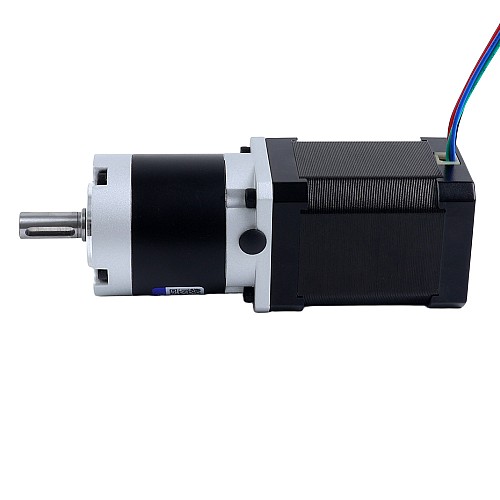

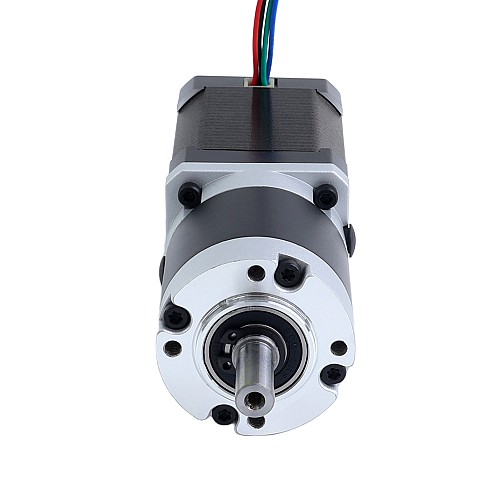

Nema 17 Stepper Motor Bipolar L=60mm w/ Gear Ratio 100:1 MG Series Planetary Gearbox

New

Nema 17 Stepper Motor Bipolar L=60mm w/ Gear Ratio 100:1 MG Series Planetary Gearbox

0 reviews - Write a review

C$45.52

5 + C$43.63

10 + C$41.91

50 + C$40.31

100 + C$38.83

In Stock: 200
Model: 17HS24-2104S-MG100
Gross Weight: 0.91kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This Nema 17 stepper motor delivers a holding torque of 0.76Nm(107.62oz.in) and features our high-precision MG series gearbox with a 100:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

Part Number: 17HS24-2104S-MG100
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.76Nm(107.62oz.in)
Rated Current/phase: 2.10A
Phase Resistance: 1.60ohms±10%
Inductance: 3.00mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 100:1
Efficiency: 80%
Backlash at No-load: <=45arcmin
Maximum Permissible Torque: 5.00Nm(708.06oz.in)
Moment Permissible Torque: 10.00Nm(1416.12oz.in)

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 60mm
Gearbox Length: 51mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.1
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.76
Inductance(mH)	3.0
Phase Resistance(ohms)	1.6
Physical Specification
Backlash at No-load	<=45 arcmin
Body Length(mm)	111
Cable Length(mm)	500
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	100
Gearbox Type	Precision Planetary
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft

File	Size
17HS24-2104S-MG100_Full_Datasheet.pdf	282.82KB	Download
