Nema 23 Bipolar 1.8deg 2.83Nm(400oz.in) 4A 57x57x84mm 8 Wires

Hot

Nema 23 Bipolar 1.8deg 2.83Nm(400oz.in) 4A 57x57x84mm 8 Wires

3 reviews - Write a review

€27.65

5 + €26.35

10 + €25.17

50 + €24.08

100 + €23.09

In Stock: 10000
Model: 23HS33-4008S
Gross Weight: 1.36kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 2327

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

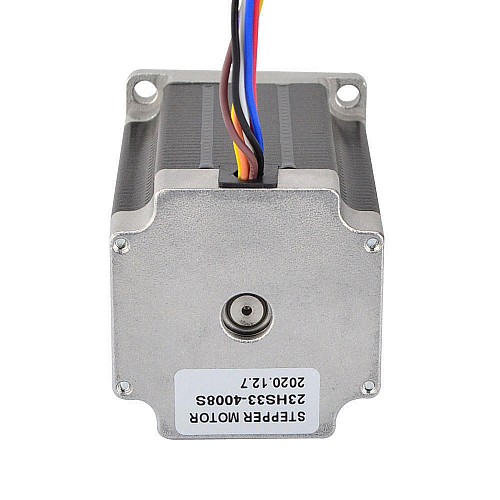

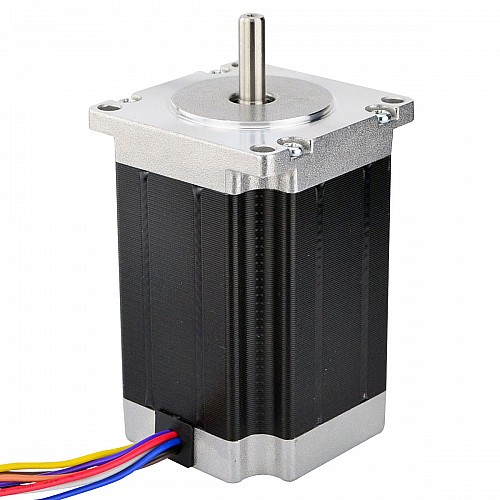

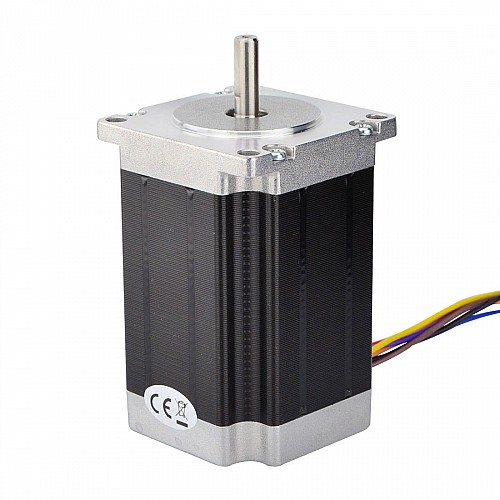

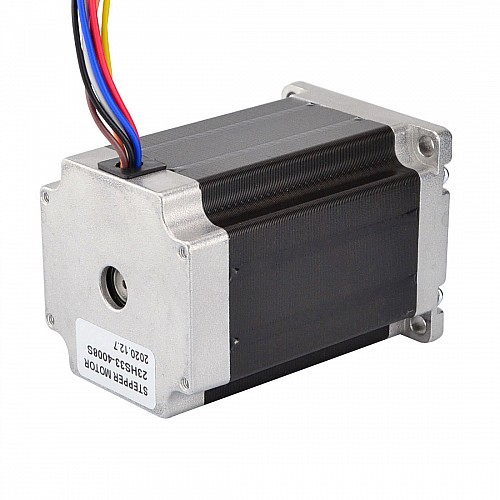

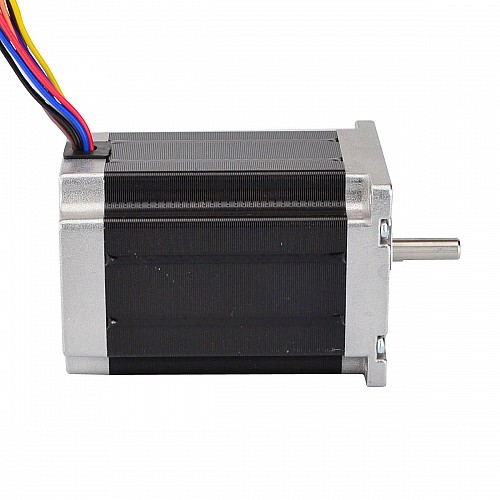

This nema 23 stepper motor with step angle 1.8deg, a cable length of 500mm and size 57x57x84mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 2.0Nm(283oz.in) with unipolar connection and 2.83Nm(400oz.in) with bipolar connection.

Electrical Specification

Manufacturer Part Number: 23HS33-4008S
Motor Type: Unipolar/Bipolar
Step Angle: 1.8deg
Holding Torque(Bipolar): 2.83Nm(400oz.in)
Holding Torque(Unipolar): 2.0Nm(283oz.in)
Rated Current(Bipolar Serial): 2.83A
Rated Current(Bipolar Parallel): 5.66A
Rated Current(Unipolar): 4.0A
Phase Resistance(Bipolar Serial): 1.6ohms
Phase Resistance(Bipolar Parallel): 0.4ohms
Phase Resistance(Unipolar): 0.8ohms
Inductance(Bipolar Serial): 7.2mH±20%(1KHz)
Inductance(Bipolar Parallel): 1.8mH±20%(1KHz)
Inductance(Unipolar): 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 84mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 8
Lead Length: 500mm
Weight: 1.13kg

Connection

A+	A-	B+	B-
Black/Brown	White/Orange	Red/Blue	Purple/Yellow

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar/Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	283
Holding Torque(oz.in)	400
Inductance(mH)	1.8
Phase Resistance(ohms)	0.4
Rated Current(A)	5.66
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	84
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	8
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1130
