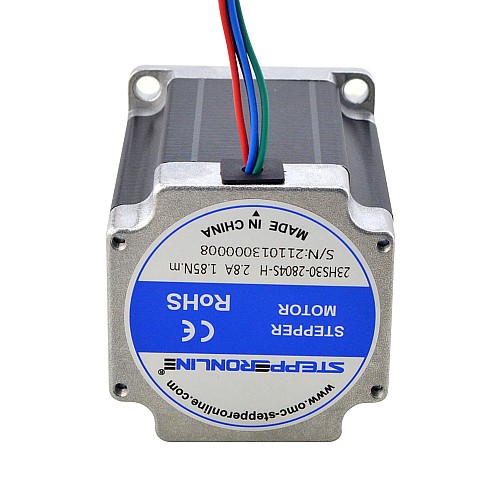

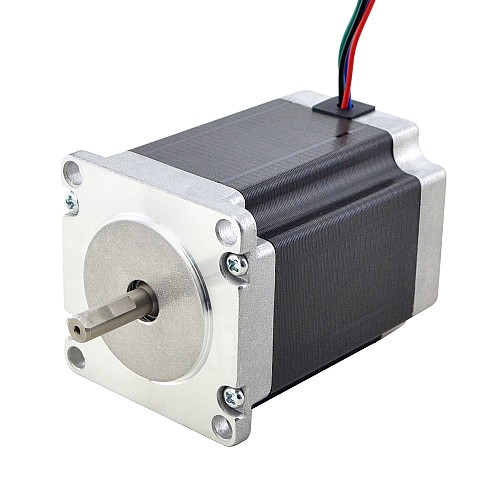

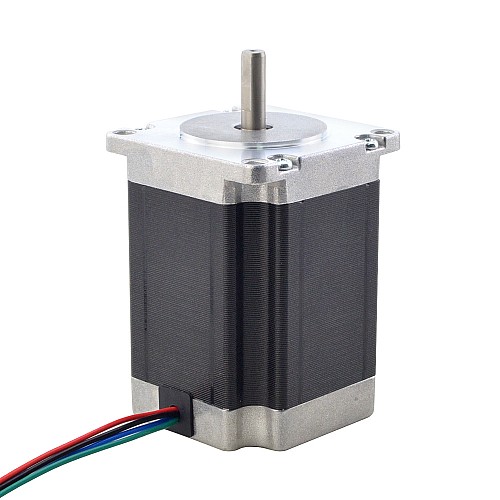

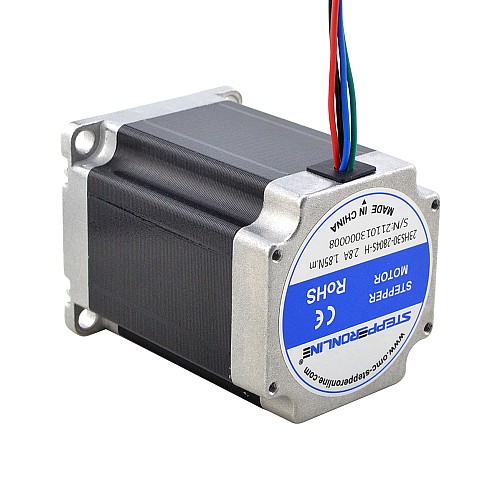

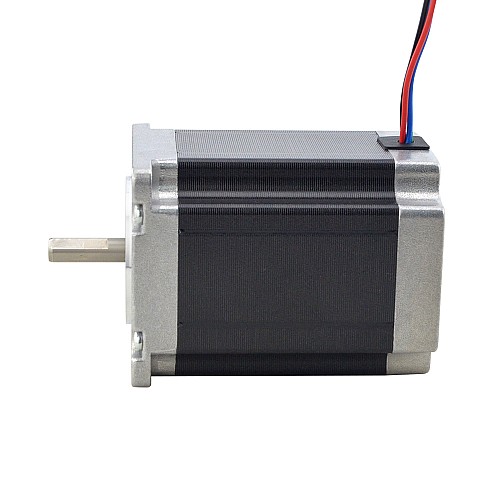

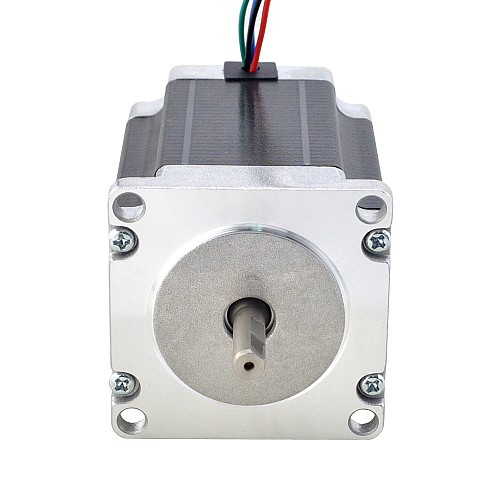

Nema 23 High Temp Stepper Motor 1.85Nm(261.98oz.in) Insulation Class H 180C

1 reviews - Write a review

C$46.46

5 + C$43.91

10 + C$41.63

50 + C$39.58

100 + C$37.71

In Stock: 10000
Model: 23HS30-2804S-H
Gross Weight: 1.16kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 635

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This motor is desighed for high temperature application. We have customed motor's winding, bearing, magnetic steel and also the plastic skeleton to achivel insulation class of H, the teprature reach up to 180C degree.

Electrical Specification

Manufacturer Part Number: 23HS30-2804S-H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.85Nm(261.98oz.in)
Rated Current/phase: 2.81A
Phase Resistance: 1.13ohms
Inductance: 4.8mH±20%(1KHz)
Insulation Class: H 180C(356F)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76.5mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Cable Length: 500mm
Weight: 1000g

Connection

A+	A-	B+	B-
BLK	GRN	RED	BLU

Product Type
Product Type	High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	185
Holding Torque(oz.in)	261.98
Inductance(mH)	4.8
Insulation Class	H 180C(356F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	1.13
Rated Current(A)	2.81
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76.5
Cable Length(mm)	500
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1000
